LC2D12BD

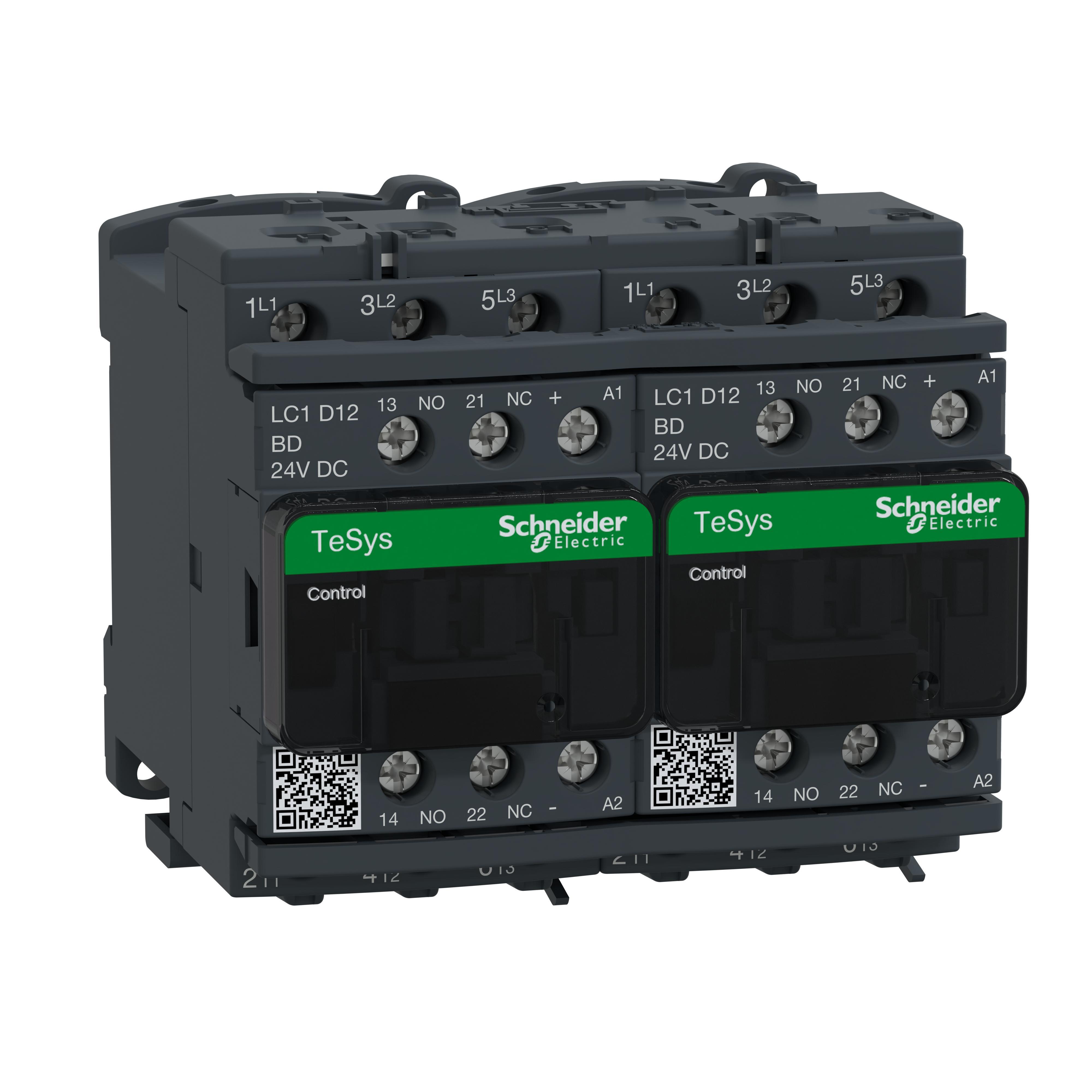

Schneider Electric LC2D12BD Iec Contactor
Part Number # LC2D12BD
SKU # 2171429
Schneider Electric LC2D12BD Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC2D12BD |
| SKU #: | 2171429 |
| Coil Power Rating: | 10 hp at 575 to 600 VAC |
| Coil Voltage: | 24, 24 V DC, 24 VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 77 mm H x 90 mm W x 95 mm D |
| Enclosure Type: | Open |
| Frequency Rating: | 25 to 400, 25 to 400 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 3600, 3600 Cycles/hr |
| Operating Temperature: | -20 to 60, -20 to 60 deg C |
| Series: | TeSys D LC2D, TeSys™ D LC2D |
| Terminal Type: | Screw Clamp, Screw/Clamp |
| Type: | Reversing |
| Country of origin: | FR |
| Mounting type: | Plate/Rail |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 00785901207597 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric LC2D12BD Iec Contactor
Brand: Schneider Electric
Part Number: LC2D12BD
Schneider Electric Square D IEC Contactor, Reversing, Series: TeSys D LC2D, 24 VDC Coil, 12/25 A Maximum Load Current, 10 hp at 575 to 600 VAC Coil, 3 Pole, 25 to 400 Hz Frequency, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, Screw Clamp Terminal, Open Enclosure, 3600 Cycles/hr Operating Cycles, -20 to 60 deg C Operating, Plate/Rail Mounting, 77 mm H x 90 mm W x 95 mm D Dimensions
Additional Description: SQD -LC2D12BD TeSys REVERSING CONTACTOR
Catalog Description: TeSys Deca reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 12 A - 24 V DC coil
LC2D12BD Application
Industry, Infrastructure, Building, Resistive Load and Motor Control ApplicationsLC2D12BD Item Features
- AC, DC, low consumption DC control circuit
- TeSys D contactors have been designed for perfect integration in control systems
- They can be used to create motor starters for any type of application
- https://www.youtube.com/embed/e8UrRZljFg0
LC2D12BD Standards
DNV;CSA;CCC;UL;GL;LROS (Lloyds register of shipping);BV;RINA;GOST;UKCASKU #2171429Part Number #LC2D12BDUNSPSC39121529UPC00785901207597
