LC2D12BL

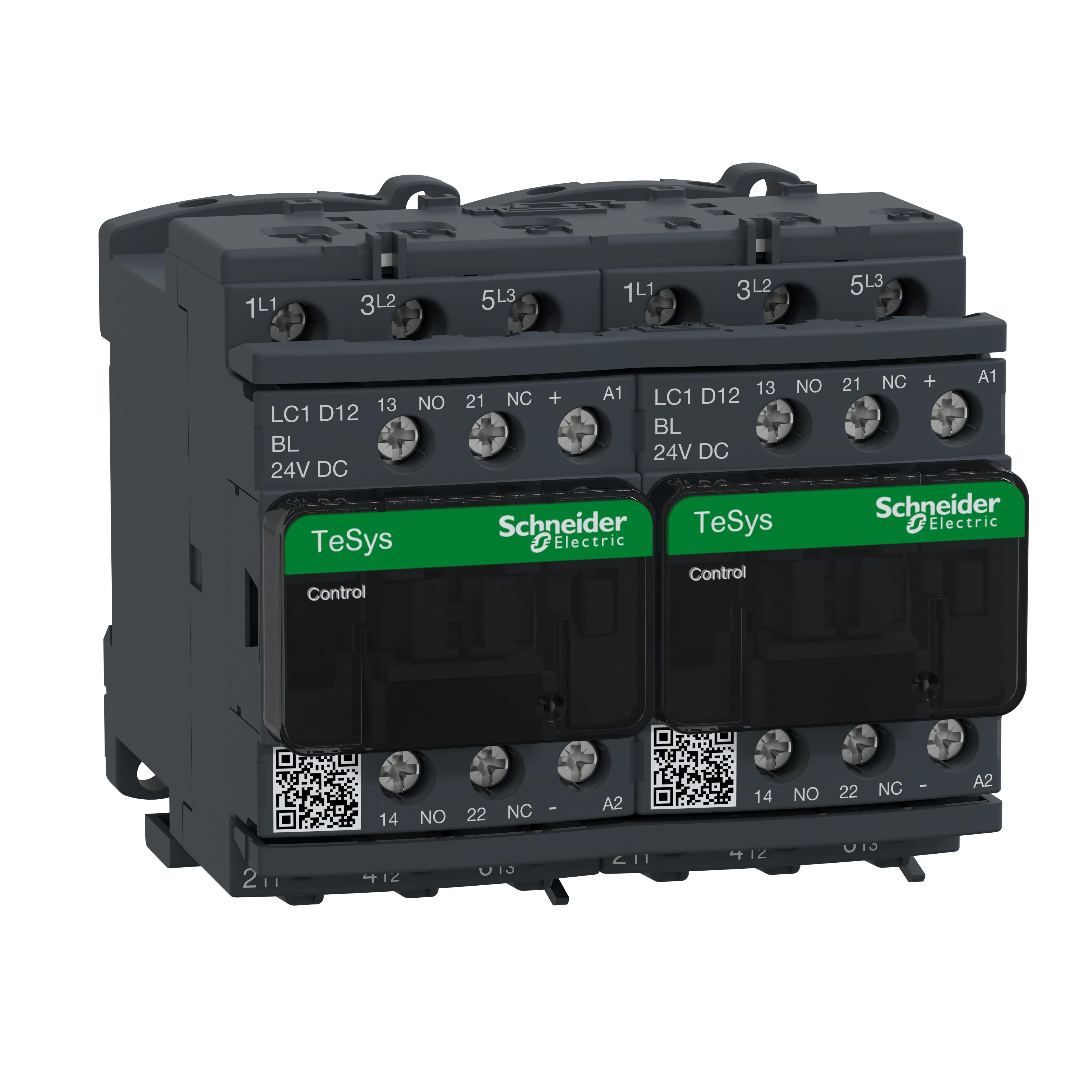

Schneider Electric LC2D12BL Tesys D Iec Contactor
Part Number # LC2D12BL
SKU # 2253761
$464.79 / Each
Schneider Electric LC2D12BL Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC2D12BL |
| SKU #: | 2253761 |
| Coil Power Rating: | 10 hp at 575 to 600 VAC, 2.4 W |
| Coil Voltage: | 24, 24/690 V AC, 300 V DC, 24/690 VAC, 300 VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 10/60 A at 600 V AC, 25/60 A at 600 V AC, 10/60 A at 600 VAC, 25/60 A at 600 VAC |
| Dimensions: | 77 mm H x 90 mm W x 95 mm D, 90 mm W x 95 mm D x 77 mm H |
| Enclosure Type: | Open |
| Frequency Rating: | 25 to 400, 60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 3600, 3600 Cycles/hr |
| Operating Temperature: | -20 to 60, -20 to 60/-40 to 70 deg C |
| Series: | LC2D, TeSys™ D LC2D |
| Size: | 77/90/95 mm |
| Terminal Type: | Screw Clamp, Screw/Clamp |
| Type: | Mechanical, Reversing |
| Wattage: | 0.36/1.56 W |
| Connection type: | Screw Clamp |
| Country of origin: | FR, US |
| Mounting type: | Plate/Rail, Rail/Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 00785901541530 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$464.79 / Each
Quantity:
- Schneider Electric Square D TeSys D IEC Contactor, Mechanical, Series: LC2D, 24/690 V AC, 300 V DC Coil, 12/25 A Maximum Load Current, 2.4 W Coil, 3 Pole, 60 Hz Frequency, 0.36/1.56 W Wattage, Reversing Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 10/60 A at 600 VAC, 25/60 A at 600 VAC Contact, Screw Clamp Connection, 77/90/95 mm Size, Screw Clamp Terminal, Open Enclosure, 3600 cycles/hr Operating Cycles, -20 to 60/-40 to 70 deg C Operating, Rail/Surface Mounting, 90 mm W x 95 mm D x 77 mm H Dimensions
LC2D12BL Application
Industry, Infrastructure, Building, Resistive Load and Motor Control ApplicationsLC2D12BL Item Features
- AC, DC, low consumption DC control circuit
- TeSys D contactors have been designed for perfect integration in control system
- They can be used to create motor starters for any type of application
- https://www.youtube.com/embed/e8UrRZljFg0
LC2D12BL Standards
DNV;CSA;CCC;UL;GL;LROS (Lloyds register of shipping);BV;RINA;GOST;UKCASKU #2253761Part Number #LC2D12BLUNSPSC39121529UPC00785901541530
