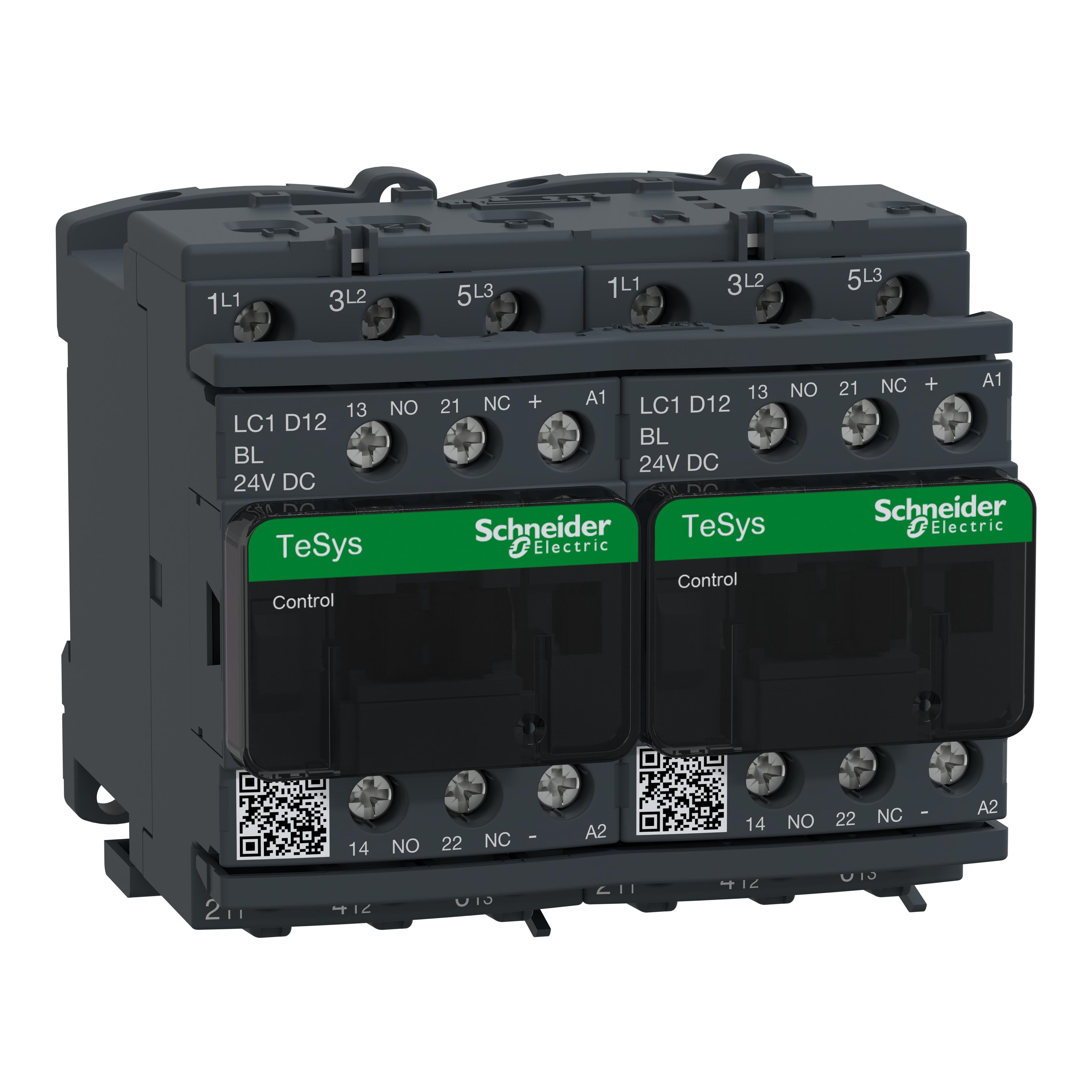

Schneider Electric LC2D12BLV Tesys D Contactor
Part Number # LC2D12BLV
SKU # 2393240
$464.79 / Each
Schneider Electric LC2D12BLV Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC2D12BLV |
| SKU #: | 2393240 |
| Coil Power Rating: | 2.4 W |
| Coil Voltage: | 24 V DC, 24 VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 10/25 A |
| Dimensions: | 90 mm W x 95 mm D x 77 mm H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 25 to 400 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 3600 Cycles |
| Operating Temperature: | -20 to 60 deg C |
| Series: | LC2D |
| Terminal Type: | Screw Clamp |
| Type: | Reversing |
| Wattage: | 0.36 W |
| Connection type: | Screw |
| Country of origin: | FR |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 00785901495116 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$464.79 / Each
Quantity:
- Schneider Electric Square D TeSys D Contactor, Reversing, Series: LC2D, 24 V DC Coil, 25 A Maximum Load Current, 2.4 W Coil, 3 Pole, 25 to 400 Hz Frequency, 0.36 W Wattage, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, 10/25 A Contact, Screw Connection, Screw Clamp Terminal, IP20 Enclosure, 3600 Cycles Operating Cycles, -20 to 60 deg C Operating, Surface Mounting, 90 mm W x 95 mm D x 77 mm H Dimensions
LC2D12BLV Application
For motor control and resistive loadLC2D12BLV Includes
Pre-Wired Electrical InterlockingLC2D12BLV Item Features
- Designed to control and provide overload protection to motors rated up to 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys D meets your needs for a majority of motor starter applications
- New TeSys D green increase TeSys D range with a new electronic coil with up to 80% less consumption than TeSys D standard AC or DC coil
- TeSys D green contactor simplify your maintenance services with 90% less references needed
- TeSys D green contactor associated with TeSys LR9D electronic overload relay reduces heat generation and energy consumption up to 50%
- High-fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR
- Eliminates the time-consuming process of selecting tested combinations through web sites and spreadsheets
- Simple to select the right product
- All contactors include built-in auxiliary contacts
- All screw connections have IP20 finger-safe terminals with both North American and International terminal markings
- TeSys D contactors can be panel mounted with screws or DIN rail mounted
- Control circuit flexibility
- https://www.youtube.com/embed/ZspiS_-OK5U
LC2D12BLV Standards
DNV;CSA;CCC;UL;GL;LROS (Lloyds register of shipping);BV;RINA;GOST;UKCALC2D12BLV Warranty
18 monthsSKU #2393240Part Number #LC2D12BLVUNSPSC39121529UPC00785901495116
