Part Number # LC2D18M7
SKU # 2293815
Image Disclaimers Message
Brand: Schneider Electric
LC2D18M7

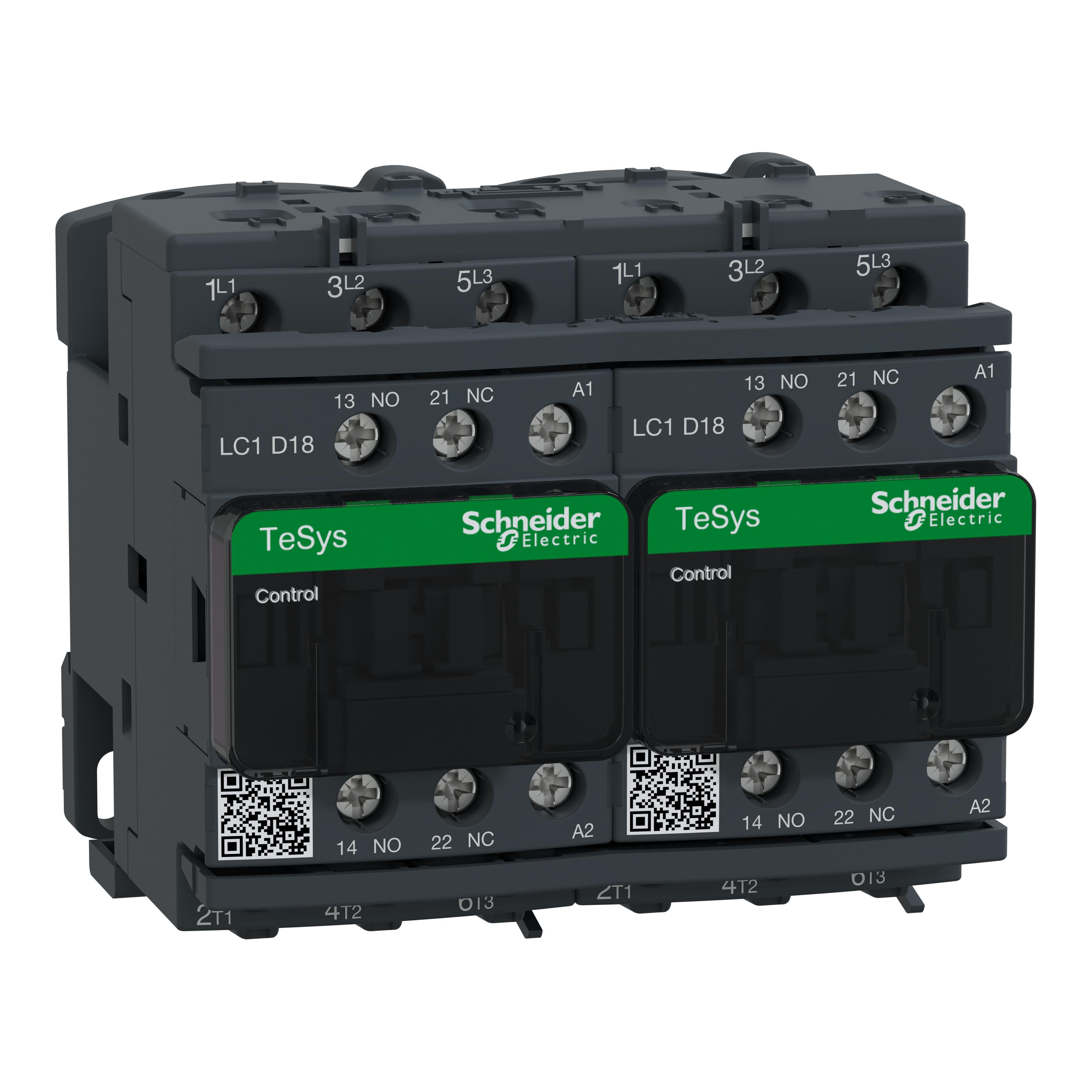

Schneider Electric LC2D18M7 TeSys D Reversing Contactor With Front Cover
Part Number # LC2D18M7
SKU # 2293815
$416.54 / Each
Schneider Electric LC2D18M7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC2D18M7 |
| SKU #: | 2293815 |
| Coil Power Rating: | 7 VAC at 50 Hz, 7.5 VAC at 60 Hz |
| Coil Voltage: | 220 V AC, 220 VAC |
| Contact Configuration: | 1NO-1NC/3NO |
| Contact Rating: | 10 A at 140 deg F Signalling Circuit, 32 A at 140 deg F Power Circuit |
| Dimensions: | 3.54 in W x 3.39 in D x 3.03 in H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 25 to 400 Hz |
| Number of Poles: | 3 |
| Operating Cycles: | 3600 Cycles/hr |
| Operating Temperature: | -40 to 70 deg C |
| Series: | TeSys D |
| Terminal Type: | Screw Clamp |
| Type: | Reversing |
| Wattage: | 0.8/2.5 W |
| Country of origin: | FR, ID |
| Mounting type: | DIN Rail/Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 00785901609469 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$416.54 / Each
Quantity:
- Schneider Electric Contactor, Reversing, Series: TeSys D, 220 V AC Coil, 32/18 A Maximum Load Current, 7 VAC at 50 Hz, 7.5 VAC at 60 Hz Coil, 3 Poles, 25 to 400 Hz Frequency, 0.8/2.5 W Wattage, Mechanically Linked/Mirror Contact, 1NO-1NC/3NO Contact Configuration, 10 A at 140 deg F Signalling Circuit, 32 A at 140 deg F Power Circuit Contact, Screw Clamp Terminal, IP20 Enclosure, 3600 cycles/hr Operating Cycles, -40 to 70 deg C Operating, DIN Rail/Surface Mounting, 3.54 in W x 3.39 in D x 3.03 in H Dimensions
LC2D18M7 Application
For resistive load motor control applicationsLC2D18M7 Item Features
- https://www.youtube.com/embed/COFeQr6wcKc
LC2D18M7 Standards
DNV;CSA;CCC;UL;GL;LROS (Lloyds register of shipping);BV;RINA;GOST;UKCASKU #2293815Part Number #LC2D18M7UNSPSC39121529UPC00785901609469
