Part Number # LC3D320AG7
SKU # 2392773
Image Disclaimers Message
LC3D320AG7

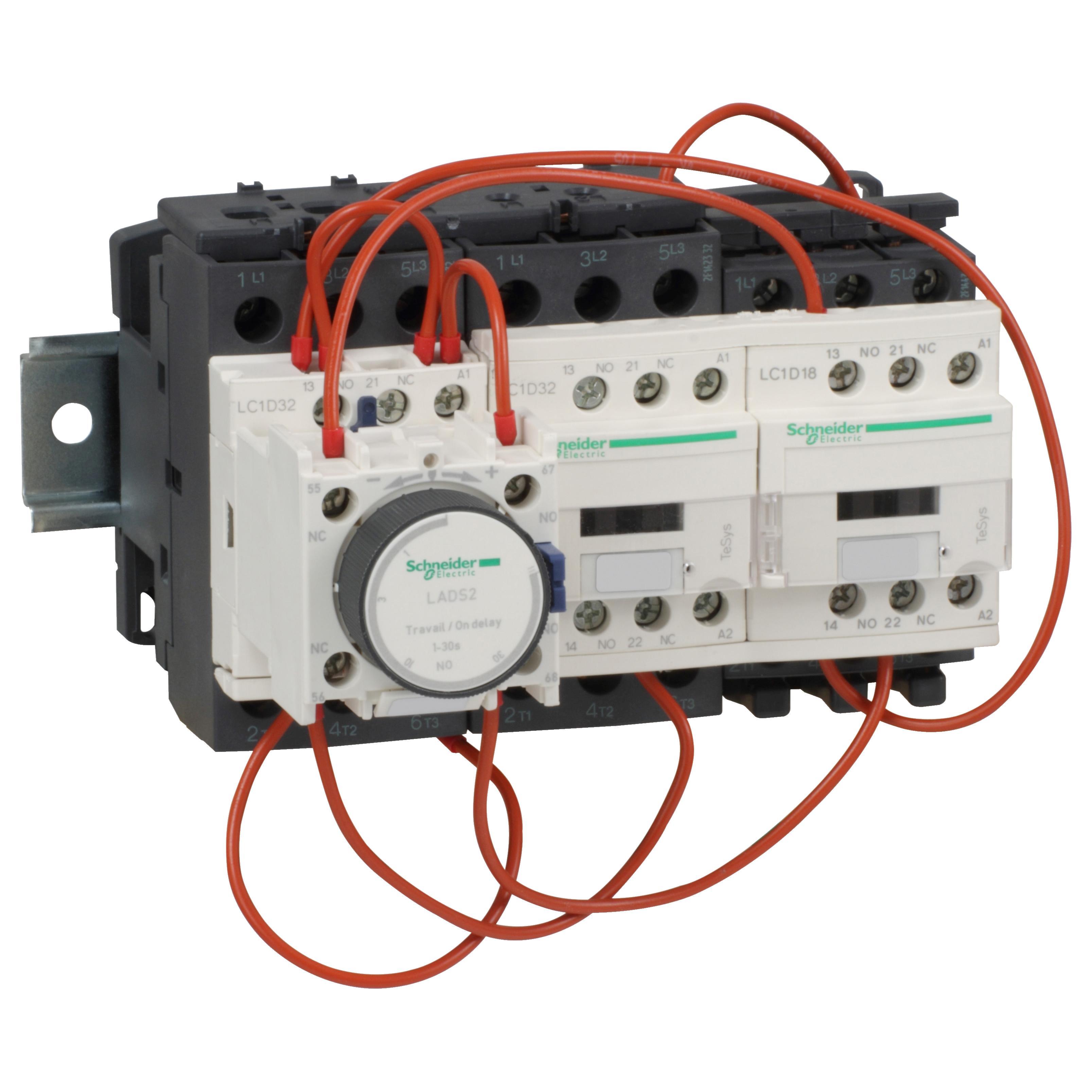

Schneider Electric LC3D320AG7 Star Delta Starter
Part Number # LC3D320AG7
SKU # 2392773
$3236.35 / Each
Schneider Electric LC3D320AG7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LC3D320AG7 |
| SKU #: | 2392773 |
| Amperage Rating: | 32 A |
| Auxiliary Contact Rating: | 1NO 1NC |
| Coil Voltage: | 120 V AC, 120 VAC |
| Dimensions: | 6.54 in W x 5.87 in D x 4.88 in H |
| Enclosure Type: | IP2X |
| Frequency Rating: | 50/60 Hz |
| Motor Power: | 70 VA at 50/60 Hz Inrush, 7.5 VA at 60 Hz, 7 VA at 50 Hz Hold-In |
| Number of Poles: | 9 |
| Operating Cycles: | 1650000 cycles |
| Operating Temperature: | -40 to 158 deg F |
| Series: | TeSys LC3D, TeSys™ LC3D |
| Timing: | 30 s Starting |
| Type: | Mechanical |
| Wattage: | 15 kW, 25 kW, 30 kW |
| Connection type: | Screw Clamp |
| Country of origin: | FR |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 03389110508604 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3236.35 / Each
Quantity:
- Schneider Electric Star Delta Starter, Mechanical, Series: TeSys LC3D, <=690 V AC, 32 A, 50/60 Hz Frequency, 15 kW, 25 kW, 30 kW Wattage, 70 VA at 50/60 Hz Inrush, 7.5 VA at 60 Hz, 7 VA at 50 Hz Hold-In Motor, 120 VAC Coil, 9 Pole, 30 s Starting Timing, Screw Clamp Connection, 1NO 1NC Auxiliary, IP2X Enclosure, 1650000 cycles Operating Cycles, -40 to 158 deg F Operating, 6.54 in W x 5.87 in D x 4.88 in H Dimensions
LC3D320AG7 Application
Material Handling an Hoisting ApplicationsLC3D320AG7 Item Features
- New TeSys D green increase TeSys D range with a new electronic coil with up to 80% less consumption than TeSys D standard AC or DC coil
- High fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR
- Eliminates the time consuming process of selecting tested combinations through web sites and spreadsheets
- Simple to select the right product
- All screw connections have IP20 finger safe terminals with both North American and international terminal markings
- Auxiliary contact blocks with serrated wiping action
- Front mount dust tight auxiliary contact blocks
- Pneumatic time delay blocks
- Transient voltage surge suppressors
- Interface modules and electronic timers
- Mechanical latching blocks
- Control circuit flexibility
- Without built-in suppressor module
- 15 kW at 220/230 VAC 50/60 Hz, 25 kW at 380/400 VAC 50/60 Hz, 30 kW at 415 VAC 50/60 Hz, 30 kW at 440 VAC 50/60 Hz
- https://www.youtube.com/embed/kW01lFljKgE
LC3D320AG7 Standards
UL;GOST;LROS (Lloyds register of shipping);RINA;DNV;CSA;CCC;BV;GLSKU #2392773Part Number #LC3D320AG7UNSPSC39121529UPC03389110508604
