Part Number # LP1K06013BD
SKU # 2279502
Image Disclaimers Message
LP1K06013BD

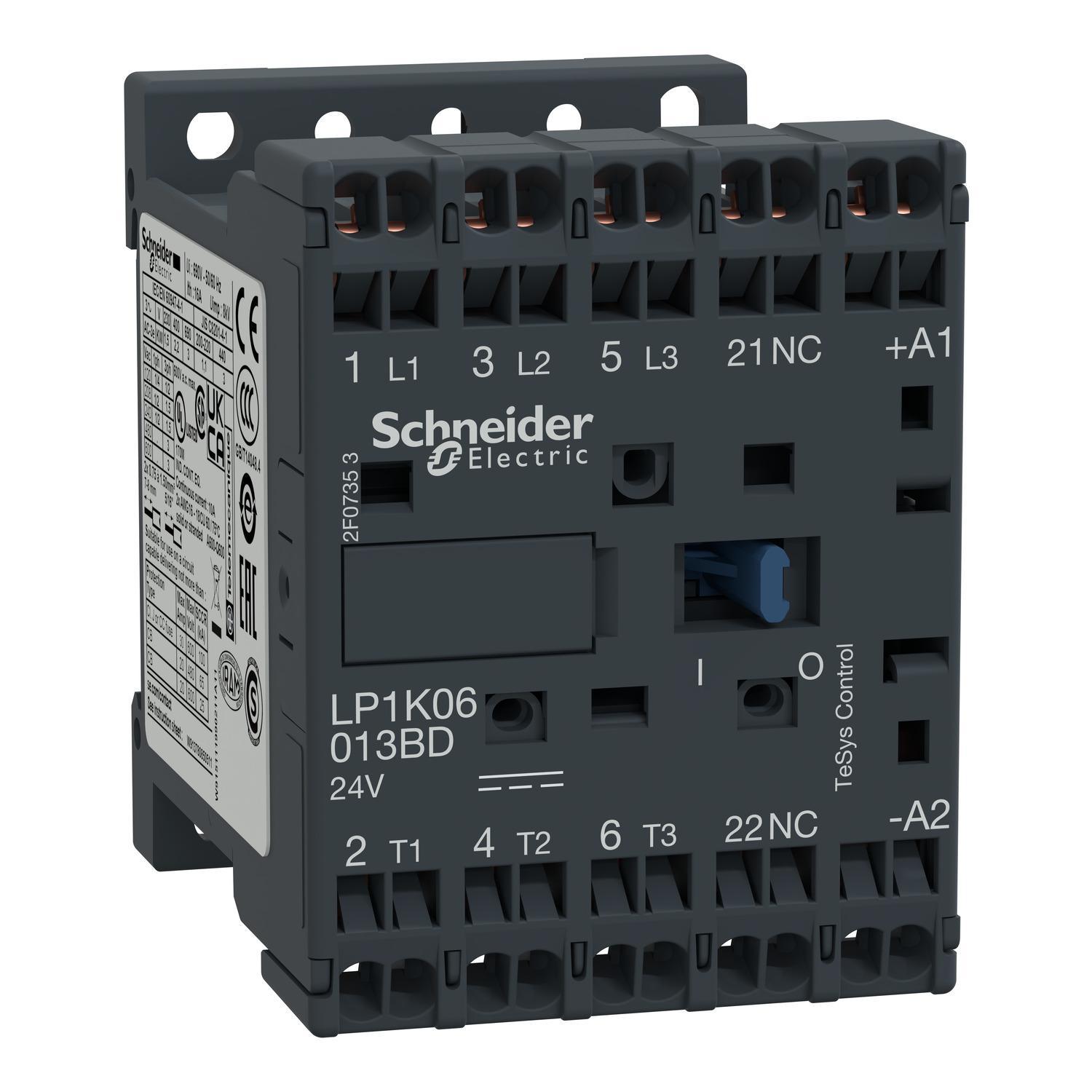

Schneider Electric LP1K06013BD Iec Contactor
Part Number # LP1K06013BD
SKU # 2279502
$88.14 / Each
Schneider Electric LP1K06013BD Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LP1K06013BD |
| SKU #: | 2279502 |
| Coil Power Rating: | 3 kW at 660 to 690 VAC |
| Coil Voltage: | 24, 24 V DC, 24 VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 58 mm H x 45 mm W x 57 mm D |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 3600, 3600 Cycles/hr |
| Series: | TeSys K LP1K, TeSys™ K LP1K |
| Terminal Type: | Spring |
| Type: | Non-Reversing |
| Country of origin: | SG |
| Mounting type: | Plate/Rail |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121529 |
| UPC: | 00785901460220 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$88.14 / Each
Quantity:
- Schneider Electric Square D IEC Contactor, Non-Reversing, Series: TeSys K LP1K, 24 V DC Coil, 6 A Maximum Load Current, 3 kW at 660 to 690 VAC Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 1NC Auxiliary Contacts, Spring Terminal, 3600 Cycles/hr Operating Cycles, Plate/Rail Mounting, 58 mm H x 45 mm W x 57 mm D Dimensions
LP1K06013BD Application
Industry, Infrastructure, Building and Motor Control ApplicationsLP1K06013BD Item Features
- High-fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR
- Two levels of ratings
- Terminal pins for soldering the contactor directly to a printed circuit board
- Spring terminals for extreme-vibration applications
LP1K06013BD Standards
RoHS Compliant|WEEE Compliant|REACH Compliant|Green Premium|BS 5424|CSA Certified|DIN 50016|IEC 60947|IEC 60068|NF C 63-110|UL Listed|VDE 0660/0106|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.govSKU #2279502Part Number #LP1K06013BDUNSPSC39121529UPC00785901460220
