LR2K0303

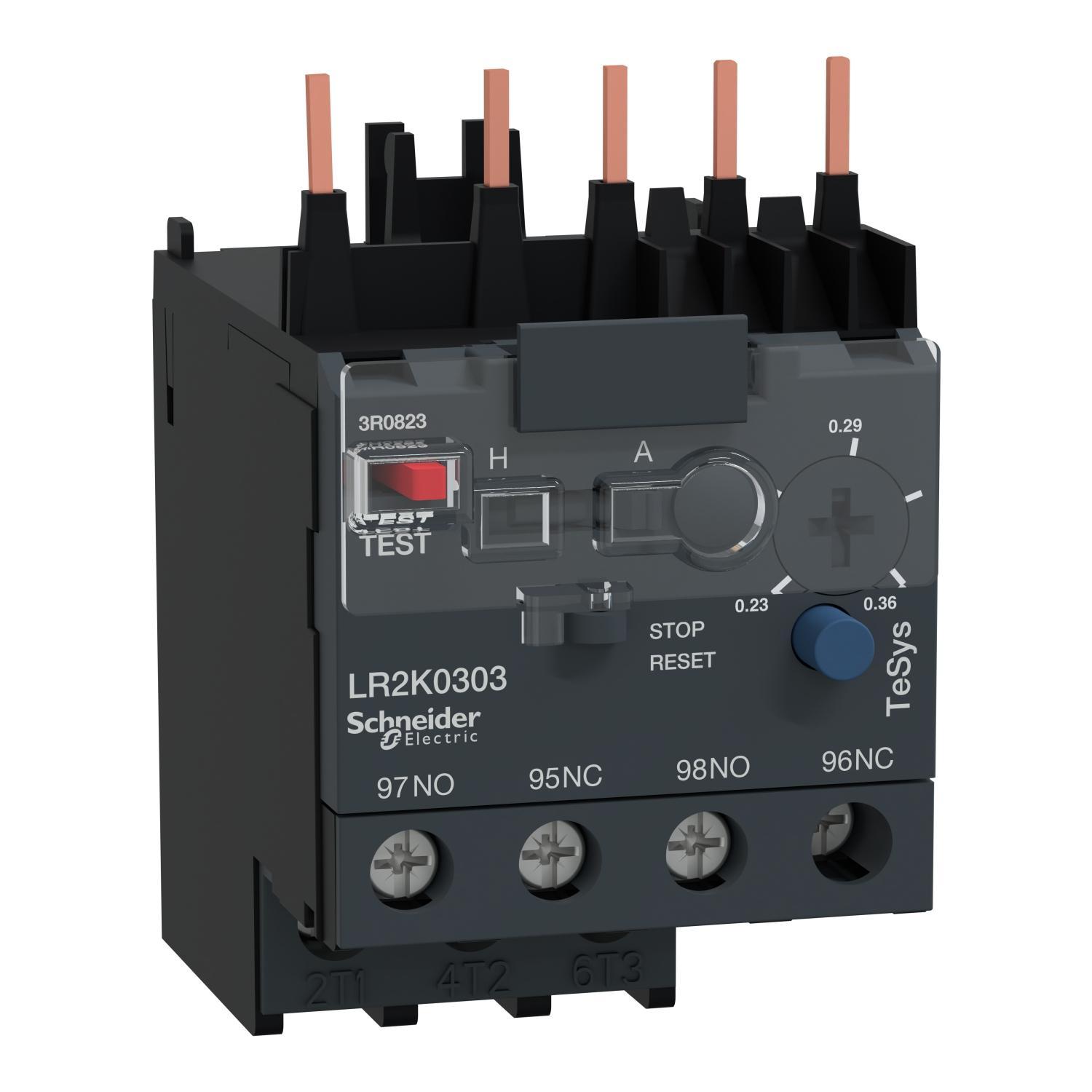

Schneider Electric LR2K0303 Thermal Overload Relay
Part Number # LR2K0303
SKU # 2188293
$67.86 / Each
Schneider Electric LR2K0303 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LR2K0303 |
| SKU #: | 2188293 |
| Amperage Rating: | 0.23 to 0.36, 0.23 to 0.36 A |
| Contact Form: | 1NC-1NO, 1NO-1NC, 1NO-1NC 1 Form A/1 Form B |
| Contact Rating: | 575, 575 V AC, 575 VAC |
| Dimensions: | 2.28 in H x 1.77 in W x 2.56 in D |
| Enclosure Type: | IP2X |
| Frequency Rating: | <=400, <=400 Hz |
| Number of Poles: | 3 |
| Series: | TeSys LR2K, TeSys™ LR2K |
| Temperature Rating (Degrees F): | -4 to 131, -4 to 131 deg F |
| Terminal Type: | Screw Clamp, Screw/Clamp |
| Type: | Bi-Metallic Differential |
| Country of origin: | CZ |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122330 |
| UPC: | 00785901882732 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$67.86 / Each
Quantity:
- Schneider Electric Square D Thermal Overload Relay, Bi-Metallic Differential, Series: TeSys LR2K, 0.23 to 0.36 A, 0.06 to 0.09 kW at 400 V Power, <=400 Hz Frequency, 1NO-1NC 1 Form A/1 Form B Contact Form, 575 V AC Contact, 3 Pole, Surface Mounting, Screw Clamp Terminal, IP2X Enclosure, -4 to 131 deg F, 2.28 in H x 1.77 in W x 2.56 in D Dimensions
LR2K0303 Application
For motor protectionLR2K0303 Item Features
- Compensated and phase failure sensitive
- Resetting can either be manual or automatic
LR2K0303 Standards
RoHS Compliant|REACH Compliant|IEC 60947|IEC 60529|BS 4941|NF C 63-650|VDE 0660|CSA Certified|UL Listed|WEEE Compliant|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.govSKU #2188293Part Number #LR2K0303UNSPSC39122330UPC00785901882732
