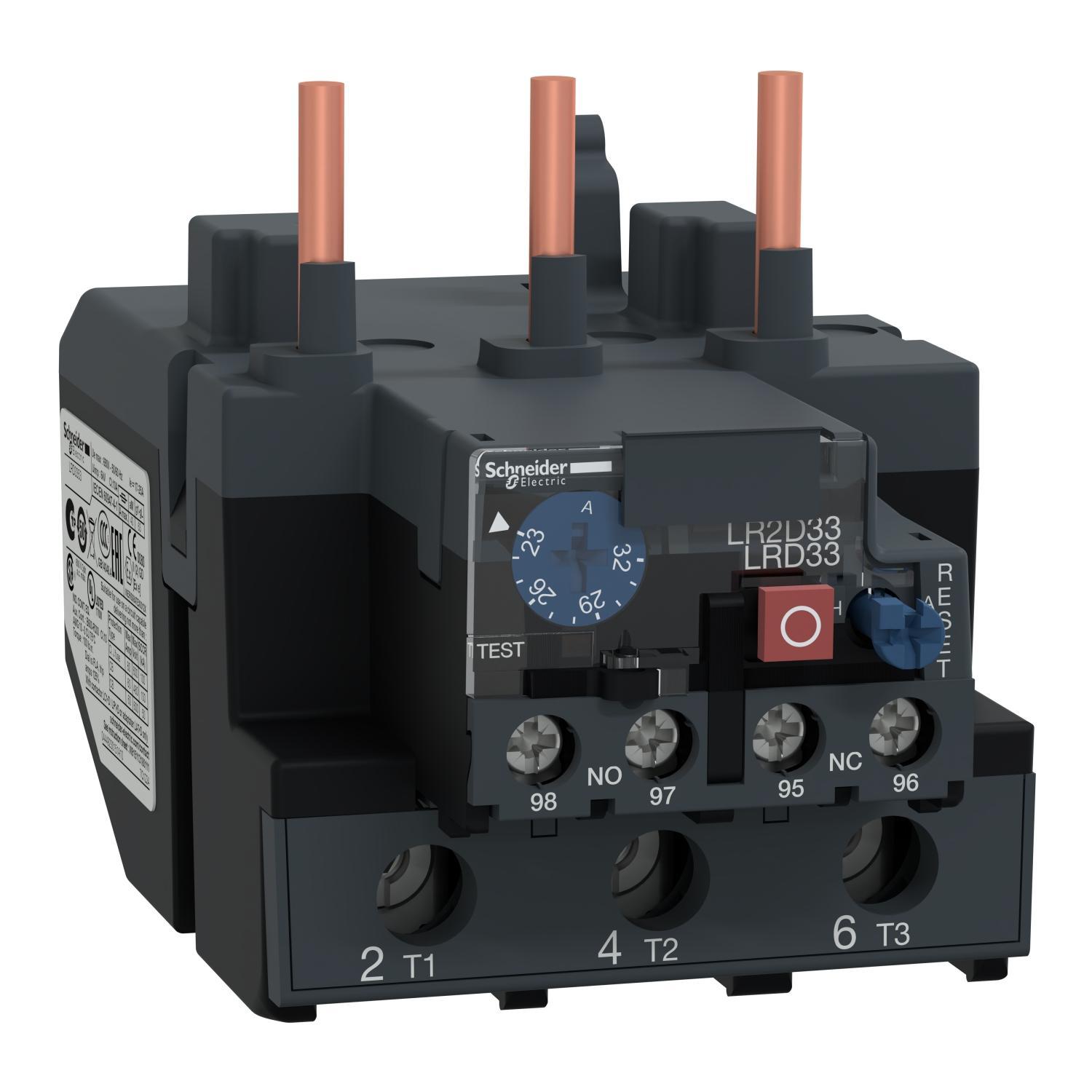

Schneider Electric LRD3353 Tesys Thermal Overload Relay
Part Number # LRD3353
SKU # 363770
$171.85 / Each
Schneider Electric LRD3353 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LRD3353 |
| SKU #: | 363770 |
| Amperage Rating: | 23 to 32, 23 to 32 A |
| Contact Form: | 1NC-1NO, 1NO-1NC, 1NO-1NC 1 Form A/1 Form B |
| Contact Rating: | 10, 10 A, 10:00 AM |
| Dimensions: | 75 mm W x 121 mm D x 123 mm H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 0 to 400, 0 to 400 Hz |
| Number of Poles: | 3 |
| Series: | D-Line |
| Temperature Rating (Degrees F): | -20 to 60, -20 to 60 deg C |
| Terminal Type: | Clamp/Threaded |
| Country of origin: | FR |
| Mounting type: | Contactor/Stand Alone |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122330 |
| UPC: | 00785901519928 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$171.85 / Each
Quantity:
- Schneider Electric TeSys Thermal Overload Relay, Series: D-Line, 23 to 32 A, 0 to 400 Hz Frequency, 1NO-1NC 1 Form A/1 Form B Contact Form, 10 A Contact, 3 Pole, Contactor/Stand Alone Mounting, Clamp/Threaded Terminal, IP20 Enclosure, -20 to 60 deg C, 75 mm W x 121 mm D x 123 mm H Dimensions
LRD3353 Application
For TeSys D40-D80 contactors or standalone applicationsLRD3353 Item Features
- It protects motors 15kW at 400V thanks to a thermal range 23-32A, a tripping class 10A and phase unbalance protection
- https://www.youtube.com/embed/tr9ayeSDB80
LRD3353 Standards
RoHS Compliant|ATEX 94/9|CE Certified|CSA C22.2 No. 14 Certified|EN 60947-4-1/60947-5-1|IEC 60947-4-1/60947-5-1|UL 508|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.govSKU #363770Part Number #LRD3353UNSPSC39122330UPC00785901519928
