Brand: Schneider Electric

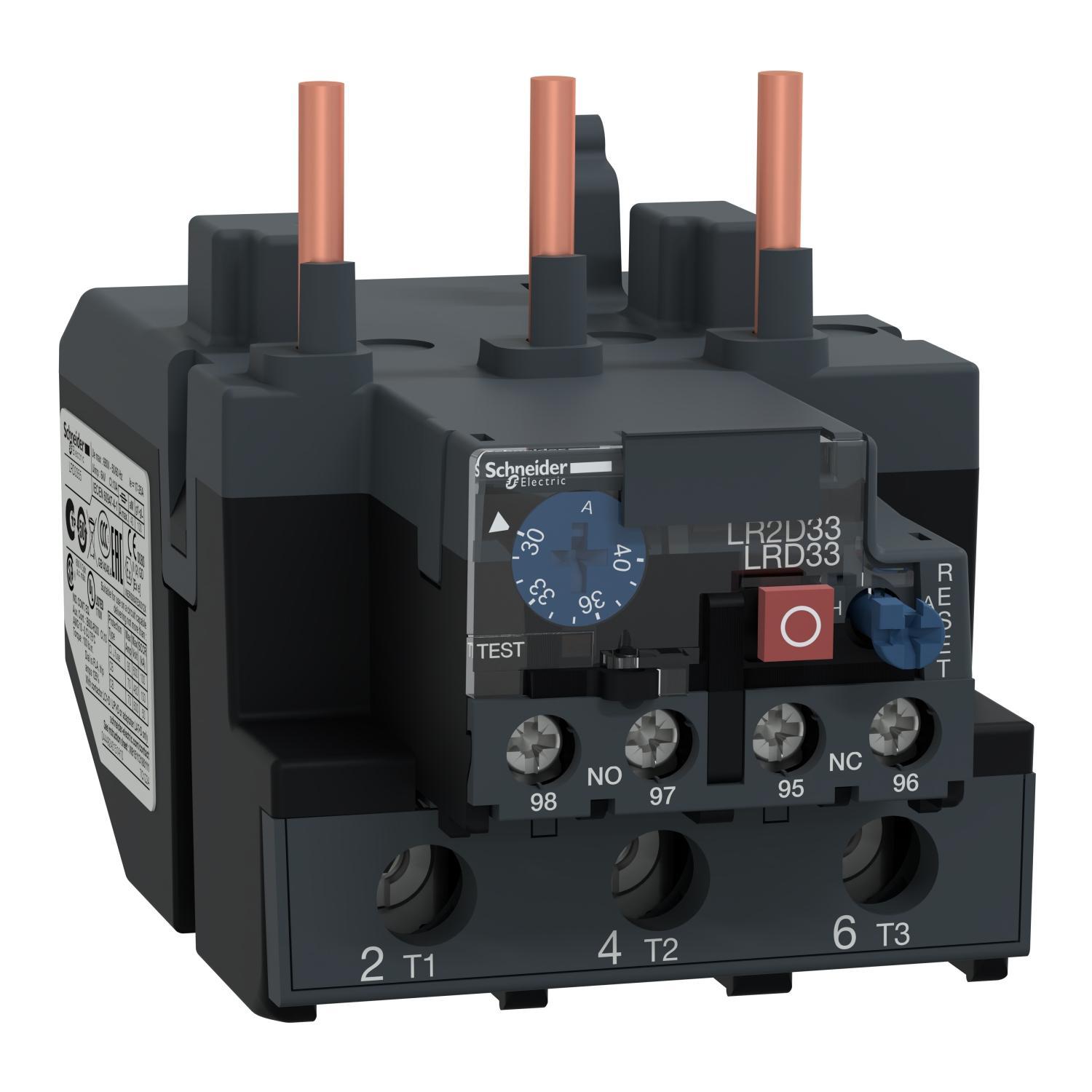

Schneider Electric LRD3355 Tesys Thermal Overload Relay
Image Disclaimers Message
Brand: Schneider Electric
Schneider Electric LRD3355 Tesys Thermal Overload Relay
Brand: Schneider Electric
Schneider Electric LRD3355 Tesys Thermal Overload Relay
Part #:LRD3355
SKU #: 362550
$107.15/EA
Key Features
Part #:LRD3355
SKU #: 362550
Brand: Schneider Electric
Amperage Rating: 30 to 40, 30 to 40 A
Contact Form: 1NC-1NO, 1NO-1NC
Contact Rating: 10, 10 A, 10:00 AM
Dimensions: 75 mm W x 121 mm D x 123 mm H
Enclosure Type: IP20
$107.15/EA
Only 1 left in stock order soon
Ships in 1 Business Day
- Ambient compensated
- Sealable flap
- Pre-wiring kit
- Terminal block for separate mounting
- Remote electrical reset available as an option
- It protects motors 18.5kW at 400V thanks to a thermal range 30-40A, a tripping class 10A and phase unbalance protection
- https://www.youtube.com/embed/RDSY92nZ3jE
Specifications
Brand: Schneider Electric
Amperage Rating: 30 to 40, 30 to 40 A
Contact Form: 1NC-1NO, 1NO-1NC
Contact Rating: 10, 10 A, 10:00 AM
Dimensions: 75 mm W x 121 mm D x 123 mm H
Enclosure Type: IP20
Frequency Rating: 0 to 400, 0 to 400 Hz
Number of Poles: 3
Series: D-Line
Terminal Type: Screw Clamp
Country of origin: FR
Manufacturer Name: Schneider Electric
UNSPSC: 39122330
UPC: 00785901519935
Schneider Electric LRD3355 Tesys Thermal Overload Relay
Schneider Electric TeSys Thermal Overload Relay, Series: D-Line, 30 to 40 A, 0 to 400 Hz Frequency, 1NC-1NO Contact Form, 10 A Contact, 3 Pole, Screw Clamp Terminal, IP20 Enclosure, 75 mm W x 121 mm D x 123 mm H Dimensions
Additional Description: SQD -LRD3355 THERMAL OVERLOAD 30-40A FITS LC1D80-D95 IEC + OPTIONS
Catalog Description: TeSys Deca, thermal overload relay, 30 to 40 A, class 10A, for LC1D80 and LC1D95
Item FeaturesFor TeSys D contactors or standalone applications
Item Features
Item FeaturesATEX 94/9|CE Certified|CSA C22 2 No. 14|EN 60947-4-1|EN 60947-5-1|IEC 60947-4-1/60947-5-1|UL 508|RoHS Compliant|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
