Part Number # LRD3806
SKU # 2453358
Image Disclaimers Message
Brand: Schneider Electric
LRD3806

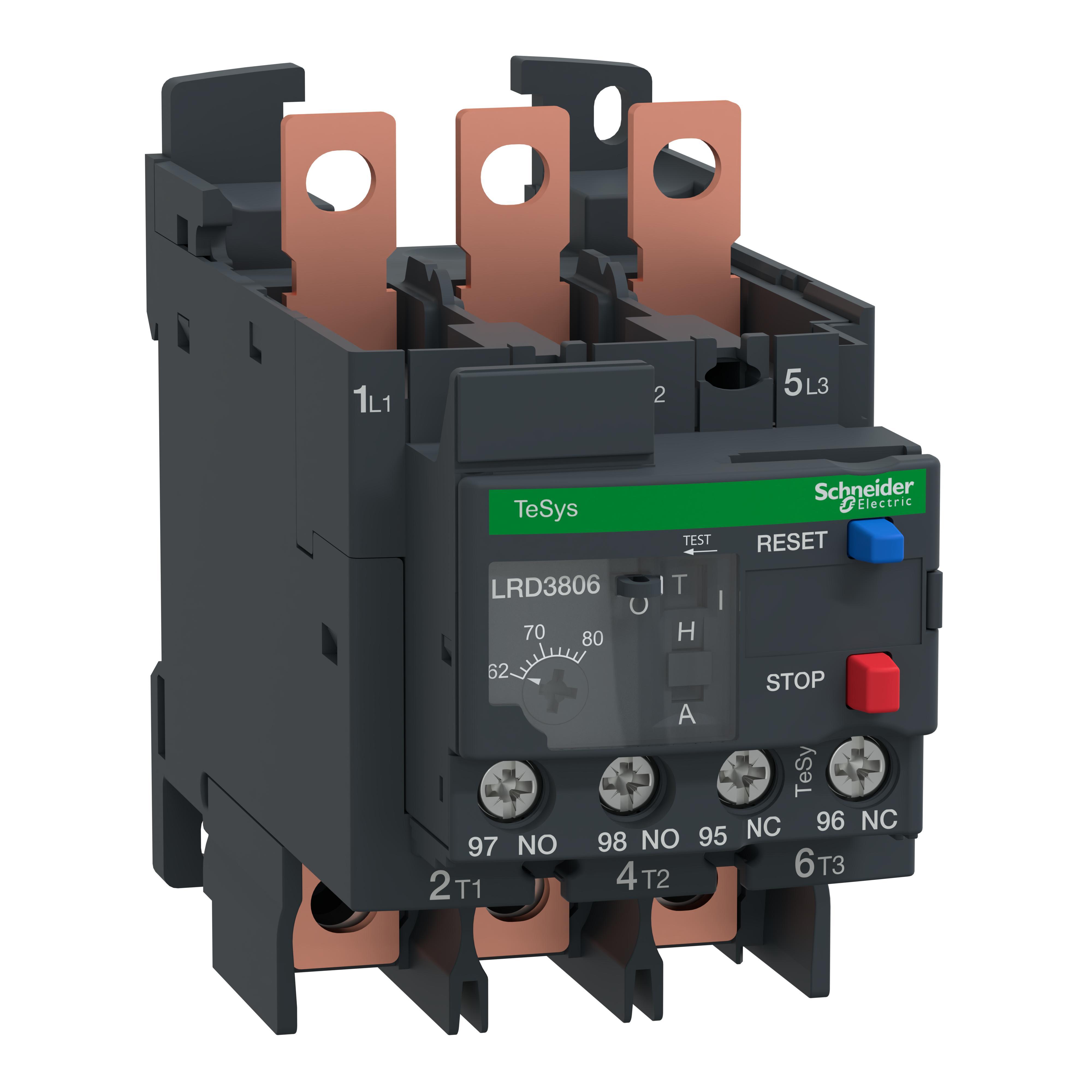

Schneider Electric LRD3806
Part Number # LRD3806
SKU # 2453358
$189.58 / Each
Schneider Electric LRD3806 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | LRD3806 |
| SKU #: | 2453358 |
| Amperage Rating: | 62 to 80 A |
| Coil Voltage: | 690 V AC, 690 VAC |
| Contact Form: | 1NO-1NC 1 Form A/1 Form B |
| Dimensions: | 2.76 in H x 2.17 in W x 4.84 in D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 0 to 400 Hz |
| Number of Poles: | 3 |
| Series: | LRD |
| Temperature Rating (Degrees F): | -20 to 60 deg C |
| Terminal Type: | Screw Clamp |
| Type: | Differential |
| Country of origin: | FR |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122330 |
| UPC: | 03606481312006 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$189.58 / Each
Quantity:
- Schneider Electric, LRD3806, Overload Relay, Differential, Series: LRD, 62 to 80 A, 37 kW at 400 V Power, 0 to 400 Hz Frequency, 690 V AC Coil, 1NO-1NC 1 Form A/1 Form B Contact Form, 3 Pole, DIN Rail Mounting, Screw Clamp Terminal, IP20 Enclosure, -20 to 60 deg C, 2.76 in H x 2.17 in W x 4.84 in D Dimensions
LRD3806 Item Features
- Manual or automatic reset
- Sealable flap
- Pre-wiring kit
- Direct mounting onto
- Terminal block for separate mounting
- Remote electrical reset available as an option
- Connectors spring terminal, screw clamp, terminal block EverLink (LRD3)
LRD3806 Standards
GB/T 14048.5|REACH Compliant|CSA C22.2 No 60947-5-1|DNV-GL|EAC|RMRS|UL Listed|UKCA|ROHS Compliant|EN/IEC 60947-5-1|EU-RO MR|WEEE Compliant|IEC|EN/IEC 60947-4-1|CSA C22.2 No 60947-4-1|CSA Certified|GB/T 14048.4|CCC|UL 60947-4-1|PROP65|UL 60947-5-1SKU #2453358Part Number #LRD3806UNSPSC39122330UPC03606481312006
