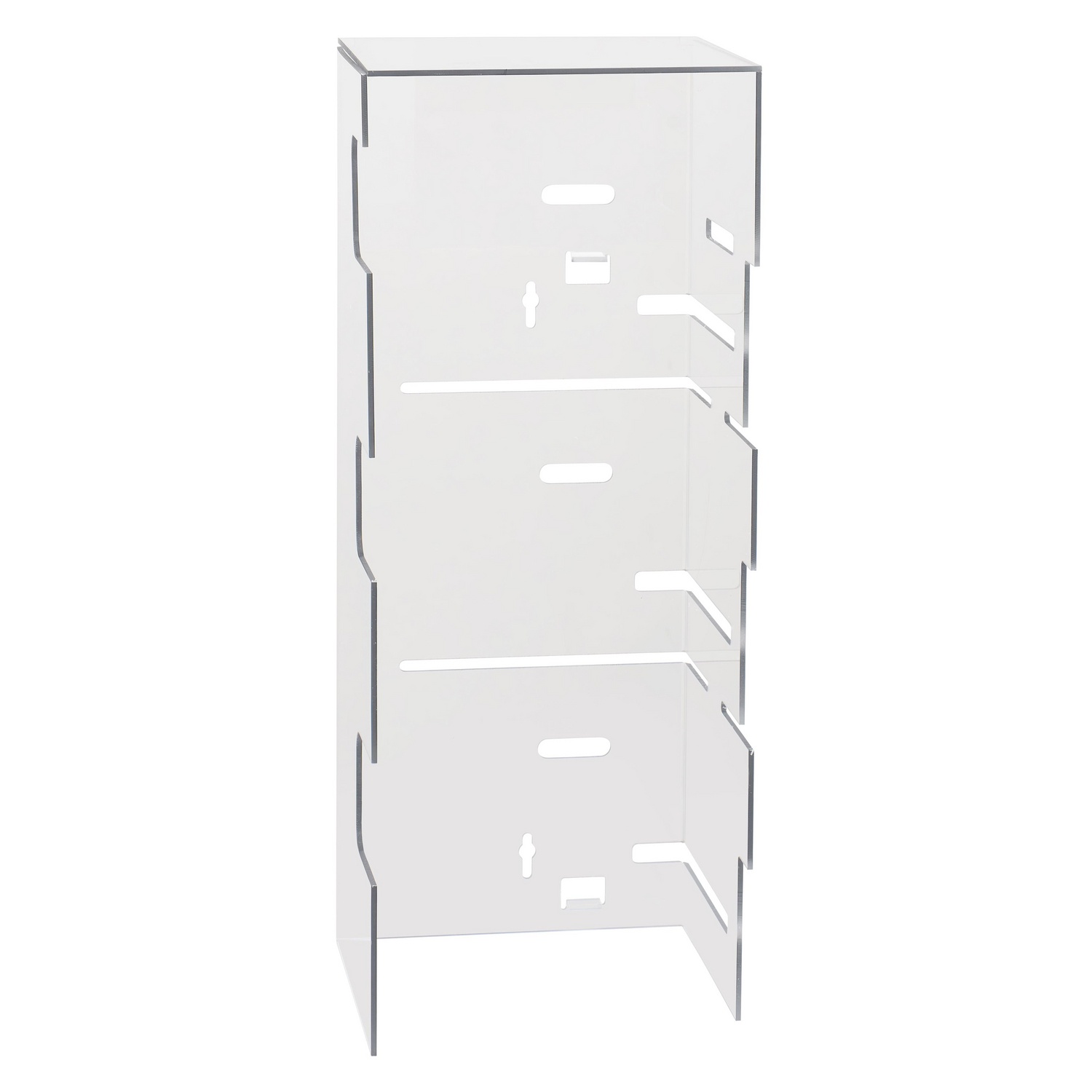

Schneider Electric LSBG602 LSB Side barrier, Polycarbonate/GF10
Image Disclaimers Message
Schneider Electric LSBG602 LSB Side barrier, Polycarbonate/GF10
Schneider Electric LSBG602 LSB Side barrier, Polycarbonate/GF10
Part #:LSBG602
SKU #: 2428519
$1069.56/EA
Key Features
Part #:LSBG602
SKU #: 2428519
Brand: Schneider Electric
Dimensions: 31 in H x 18 in L x 10 in D
Series: LSB
Type: Side barrier
Country of origin: MX
Material: Polycarbonate/GF10
$1069.56/EA
- 30-1200A 240Vac/250Vdc or 600Vac/600Vdc
- Fusible and non-fusible
- NEMA 7 and 9 enclosures for hazardous locations
- Two or three, fusible switched poles, with or without, insulated groundable solid neutral
- Four or six, fusible switched poles, without insulated, grounded, solid neutral
- Two, three, four, or six, non-fusible switched poles, without insulated, grounded, solid neutral
- Up to 200 kA Short Circuit Current Ratings, utilizing appropriately rated Class R fuses and Class R fuse kits or Class L and Class J fuses
- Horsepower rated for motor applications -- 500hp maximum
- Quick-make, quick-break operating mechanism
- Visible blade switches for positive "OFF" indication
- Optional viewing window allows visual verification of blade position without opening door
- Red and black handle indicates the ON (red) or OFF (black) condition of the switch
- Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open
- Handle lock-off provision for multiple padlocks -- "OFF" position
- Cover can be padlock closed
- Tangential knockouts, where provided, lessen the need for conduit offset bends
- Spring reinforced plated copper fuse clips
- 600 V permissible voltage
- With toxic heavy metal free
- With pvc free
Specifications
Brand: Schneider Electric
Dimensions: 31 in H x 18 in L x 10 in D
Series: LSB
Type: Side barrier
Country of origin: MX
Material: Polycarbonate/GF10
Manufacturer Name: Schneider Electric
UNSPSC: 39122205
UPC: 00785901606369
Item Features
Item FeaturesPROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|UL 869A
