Part Number # M9F12206
SKU # 2368436
Image provided may only be a representation of
final product and may include optional equipment
M9F12206

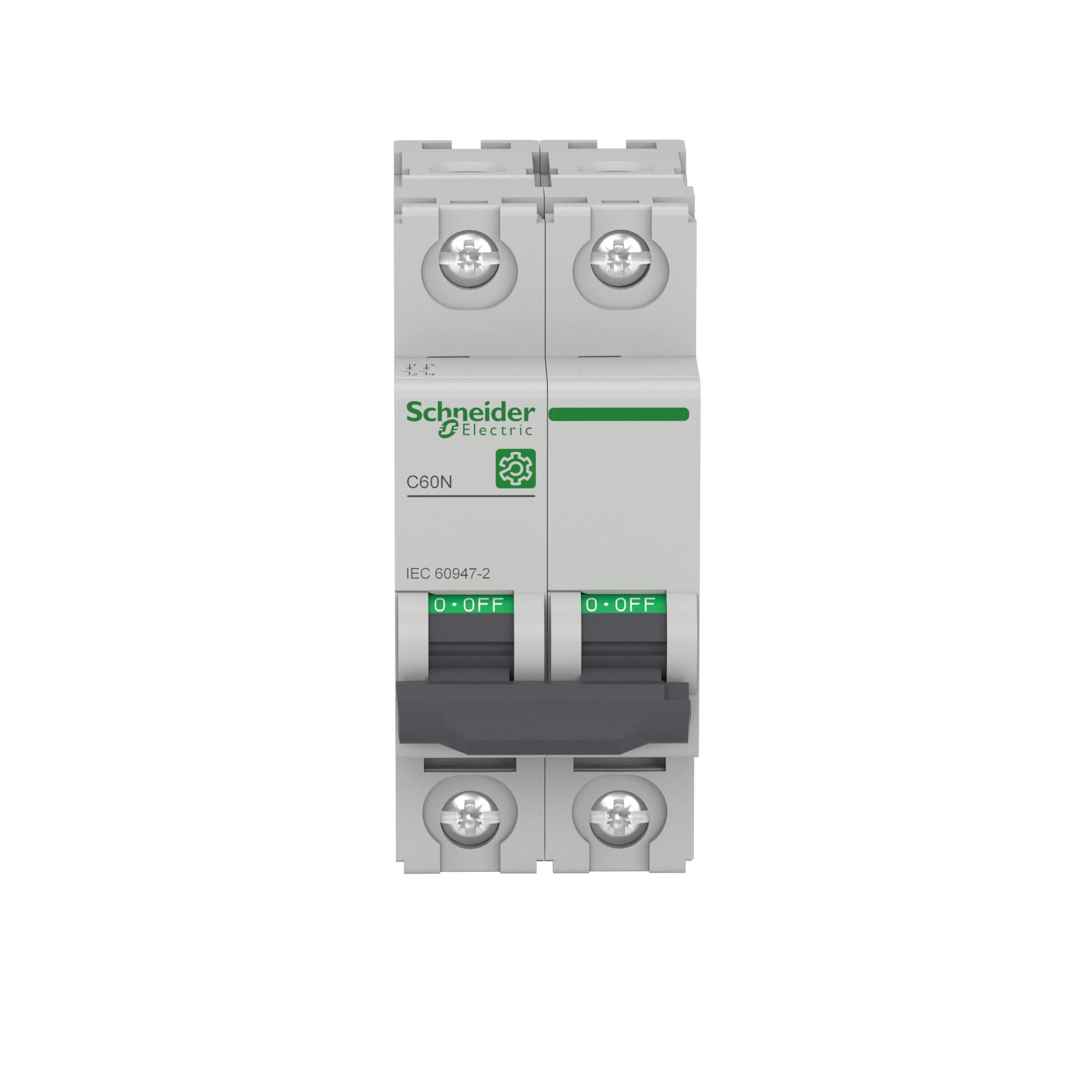

Schneider Electric M9F12206 Miniature Circuit Breaker
Part Number # M9F12206
SKU # 2368436
Schneider Electric M9F12206 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | M9F12206 |
| SKU #: | 2368436 |
| Actuator Type: | Toggle |
| Amperage Rating: | 6 A |
| Dimensions: | 72 mm L x 36 mm W x 81 mm H |
| Enclosure Type: | IP20/IP40 |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 20 kA at <=125 VDC/10 kA at 415 VAC/20 kA at 240 VAC/6 kA at 440 VAC |
| Number of Poles: | 2 |
| Series: | Multi 9 C60 |
| Temperature Rating (Degrees F): | -30 to 70 deg C |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Connection type: | Tunnel |
| Country of origin: | BG |
| Mounting type: | Clip/DIN Rail |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121603 |
| UPC: | 03606480576737 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric M9F12206 Miniature Circuit Breaker
Brand: Schneider Electric
Part Number: M9F12206
Schneider Electric Square D Miniature Circuit Breaker, Series: Multi 9 C60, 240/415/440 VAC/125 VDC, 6 A, 50/60 Hz Frequency, 20 kA at <=125 VDC/10 kA at 415 VAC/20 kA at 240 VAC/6 kA at 440 VAC Interrupt, Thermal/Magnetic Trip, 2 Pole, Toggle Actuator, Tunnel Connection, IP20/IP40 Enclosure, Clip/DIN Rail Mounting, -30 to 70 deg C, 72 mm L x 36 mm W x 81 mm H Dimensions, Gray
Additional Description: SQD -M9F12206 (N) Multi9 C60N 2P D 6A 10kA 415V MCB 6A NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Miniature circuit breaker (MCB), Multi9 C60N, 2P, 6A, D curve, 10kA (IEC/EN 60947-2)
M9F12206 Item Features
- Increased product service life thanks
- Overvoltage resistance
- High performance limitation
- To fast closing independent of the speed of actuation of the toggle
- Upstream or downstream connection
M9F12206 Standards
REACH Compliant|CCC|Green Premium|RoHS Compliant|KC|IEC 60529|EN/IEC 60947-2SKU #2368436Part Number #M9F12206UNSPSC39121603UPC03606480576737
