Part Number # M9F52245
SKU # 2450456
Image Disclaimers Message
Brand: Schneider Electric
M9F52245
Schneider Electric M9F52245
Part Number # M9F52245
SKU # 2450456
$237.96 / Each
Typical price:$409.50 / Each
Schneider Electric M9F52245 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | M9F52245 |
| SKU #: | 2450456 |
| Actuator Type: | Toggle |
| Amperage Rating: | 45 A |
| Dimensions: | 36 mm W x 72 mm D x 127 mm H |
| Enclosure Type: | IP20/IP40 |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 10 kA |
| Number of Poles: | 2 |
| Series: | Multi 9� C60N |
| Temperature Rating (Degrees F): | -30 to 70 deg C |
| Trip Type: | Thermal Magnetic |
| Type: | Curve C |
| Color: | Gray |
| Connection type: | Ring Tongue |
| Country of origin: | FR |
| Mounting type: | Clip-On/DIN Rail |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121603 |
| UPC: | 00785901129455 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$237.96 / Each
Typical price:$409.50 / Each
Quantity:

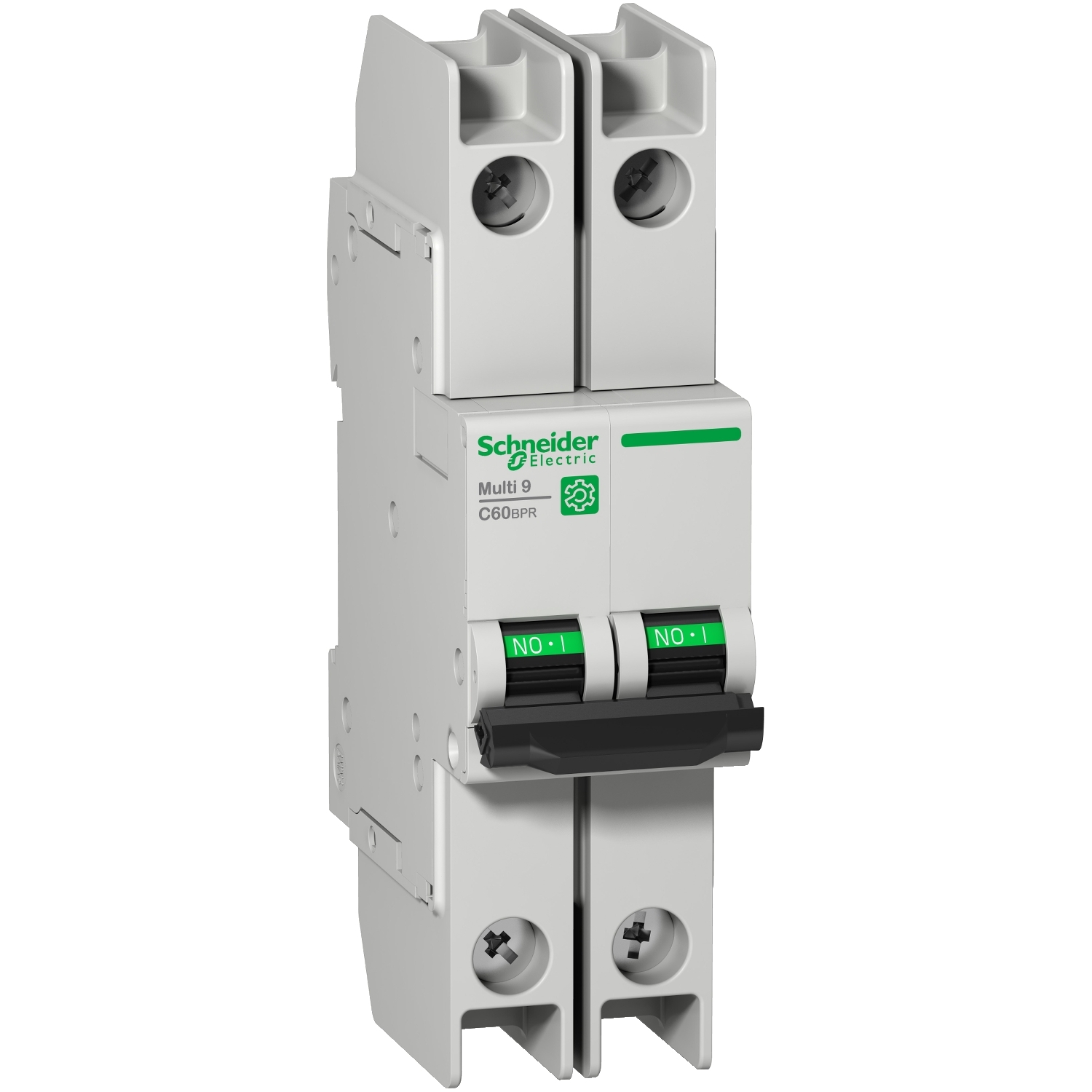

- Schneider Electric Square D Miniature Circuit Breaker, Curve C, Series: Multi 9 C60N, 240/415/440 VAC, 60 VDC, 45 A, 50/60 Hz Frequency, 10 kA Interrupt, Thermal Magnetic Trip, 2 Pole, Toggle Actuator, Ring Tongue Connection, IP20/IP40 Enclosure, Clip-On/DIN Rail Mounting, -30 to 70 deg C, 36 mm W x 72 mm D x 127 mm H Dimensions, Gray
M9F52245 Application
HVAC, Lift, Crane and Hoisting, Pumping, Genset, Semiconductor Industry, Packaging, Conveying and Telecom ApplicationsM9F52245 Item Features
- Multi 9 is a range of DIN rail modular devices, a solution offering great performance
- Multi 9 range is a Schneider Electric global offer dedicated to equipment manufacturers (OEMs), meeting all global standards for industry applications
- Designed to meet your needs for all types of machines and offering a wide range of modular devices, it provides protection, signaling functions and accessories
- With its wide range, new performances and the multiple choices of field installable accessories, Multi 9 allows you to adapt easily to any configuration any time
- Multi 9 fits perfectly in Schneider Electric solutions, allowing you to build your panel with the global specialist in energy management and automation
- Optimized - small footprint to reduce your panel size, cost effective, less commercial references
- Renowned quality - world leaders proven technology and experience
- Benefits to be completed
- ON/OFF indication
M9F52245 Standards
CSA C22.2 File No. 5|CCC Certified|EAC|Green Premium Listed|KC Compliant|IEC 60529|IEC/EN 60947-2|RoHS Compliant|REACH Compliant|UL 489|UL 1077|WEEE CertifiedSKU #2450456Part Number #M9F52245UNSPSC39121603UPC00785901129455
