Part Number # NSYDBN88
SKU # 2459522
NSYDBN88
Schneider Electric NSYDBN88
Part Number # NSYDBN88
SKU # 2459522
$58.80 / 10Each
Typical price:$70.20 / Each
Schneider Electric NSYDBN88 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | NSYDBN88 |
| SKU #: | 2459522 |
| Finish: | Epoxy-polyester powder |
| Type: | Junction Box |
| Country of origin: | IN |
| Depth: | 1.93 in |
| Height: | 3.35 in |
| Material: | Steel |
| Mounting type: | Wall |
| Width: | 3.35 in |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121324 |
| UPC: | 03606480187933 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$58.80 / 10Each
Typical price:$70.20 / Each
Quantity:
Schneider Electric NSYDBN88
Brand: Schneider Electric
Part Number: NSYDBN88
Additional Description: SQD -NSYDBN88 (N) STEEL BOX 85X85X49 LO NON-CANCELABLE, NON-RETURNABLE

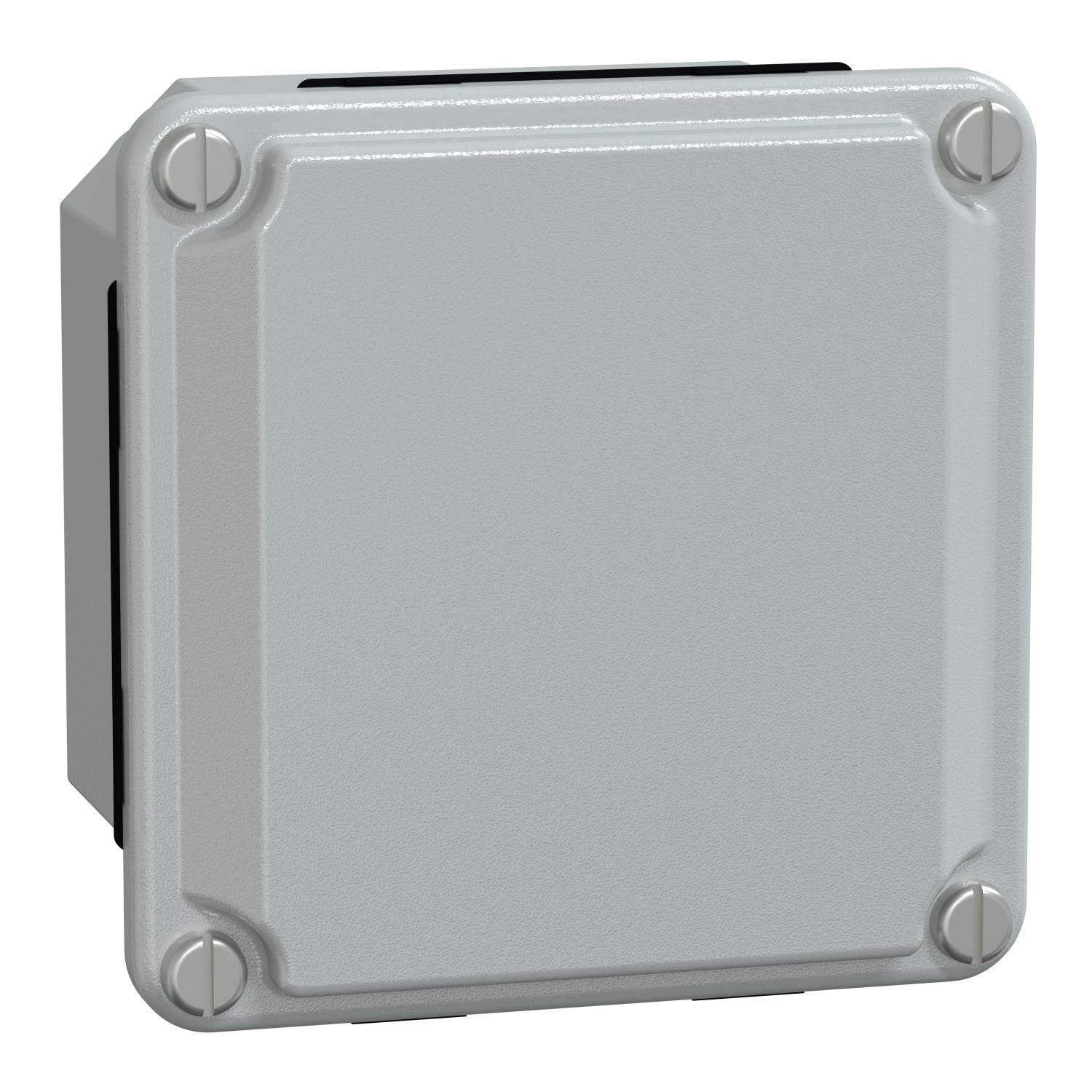

Catalog Description: Metal industrial box - low plain cover - H85xW85xD49 - IP55 - grey RAL 7035
NSYDBN88 Item Features
- IP 55 watertightness
- PVC gasket for small dimensions, rubber gasket for > 25x20 cm
- IK 07 external mechanical resistance
- Cover and body stamped
- 7 dimensions avec without knock outs and 7 dimensions with knock outs
- For >15x10 cm : 2 heights of covers for each dimension
- For >20x15 cm : 1 version equipped with hinges
- For > 15x10 cm : 4 threaded holes fitted with removable plugs
- For > 15x10 cm : Mounting plates available in accessories
- For > 20x15 cm : Version equipped with lock and hinges
- Polyester epoxy paint
- Leather-type surface
- Color grey RAL 7035
- Low plain cover type of front cover
- Screw cover fixing
NSYDBN88 Standards
IEC 62208SKU #2459522Part Number #NSYDBN88UNSPSC39121324UPC03606480187933
Image provided may only be a representation of final product and may include optional equipment
