Part Number # NSYS3D5520P
SKU # 2462906
NSYS3D5520P
Schneider Electric NSYS3D5520P
Part Number # NSYS3D5520P
SKU # 2462906
Schneider Electric NSYS3D5520P Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | NSYS3D5520P |
| SKU #: | 2462906 |
| Capacity: | 50 kg/sq-m |
| Finish: | Epoxy Polyester Powder Coated |
| Series: | Spacial S3D |
| Type: | 1-Door Blank Compact Multi-Purpose |
| Depth: | 200 mm |
| Height: | 500 mm |
| Material: | Galvanized Steel/Steel |
| Width: | 500 mm |
| UNSPSC: | 39121303 |
| UPC: | 03606480159381 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric NSYS3D5520P
Brand: Schneider Electric
Part Number: NSYS3D5520P

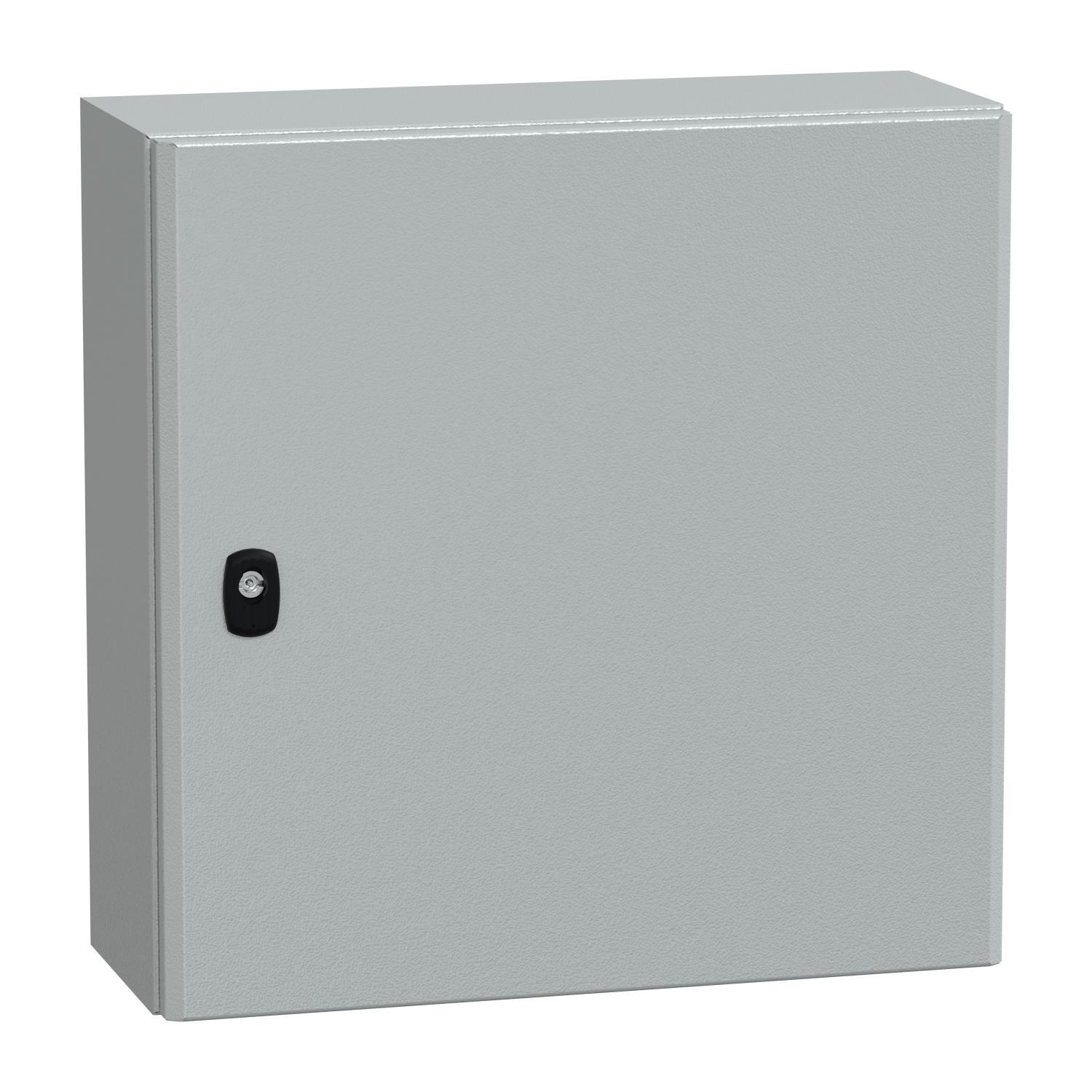

Schneider Electric Square D Wall Mount Enclosure, 1-Door Blank Compact Multi-Purpose, Series: Spacial S3D, 500 mm Width, 200 mm Depth, 500 mm Height, 120 deg Reversible/Solid Front Cover, Lock: 3 mm Double Bar, 50 kg/sq-m Capacity, Wall Mounting, Galvanized Steel/Steel, Epoxy Polyester Powder Coated, Light Gray
Additional Description: SQD -NSYS3D5520P (N) S3D H500XW500XD200+PLAIN CHASSIS NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 500x500x200mm, IP66, IK10
NSYS3D5520P Application
For electronic applicationsNSYS3D5520P Includes
Body, Plain Mounting Plate, Door with Lock and Standard Cable Gland PlateNSYS3D5520P Item Features
- Door can be opened up to 120, for easy access to the equipment inside
- Reversible door with a three-point lock and a 3mm double-bar insert for added security
- Cable gland plate and door can be removed for maintenance purposes
- https://www.youtube.com/watch?v=IiscCbcU7d8
NSYS3D5520P Standards
UL;GL;cUL;DNV;BV;IEC 62208NSYS3D5520P Warranty
18 monthsSKU #2462906Part Number #NSYS3D5520PUNSPSC39121303UPC03606480159381
Image provided may only be a representation of final product and may include optional equipment
