Part Number # NSYS3D6420T
SKU # 2456251
NSYS3D6420T
Schneider Electric NSYS3D6420T
Part Number # NSYS3D6420T
SKU # 2456251
$143.83 / Each
Typical price:$171.97 / Each
Schneider Electric NSYS3D6420T Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | NSYS3D6420T |
| SKU #: | 2456251 |
| Finish: | Epoxy-polyester powder |
| Type: | Without Mounting Plate |
| Country of origin: | FR |
| Depth: | 7.87 in |
| Height: | 23.62 in |
| Material: | Steel |
| Width: | 15.75 in |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121324 |
| UPC: | 03606480159312 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$143.83 / Each
Typical price:$171.97 / Each
Quantity:
Schneider Electric NSYS3D6420T
Brand: Schneider Electric
Part Number: NSYS3D6420T
Additional Description: SQD -NSYS3D6420T (N) S3D GLAZED DOOR.H600XW400XD200 NON-CANCELABLE, NON-RETURNABLE

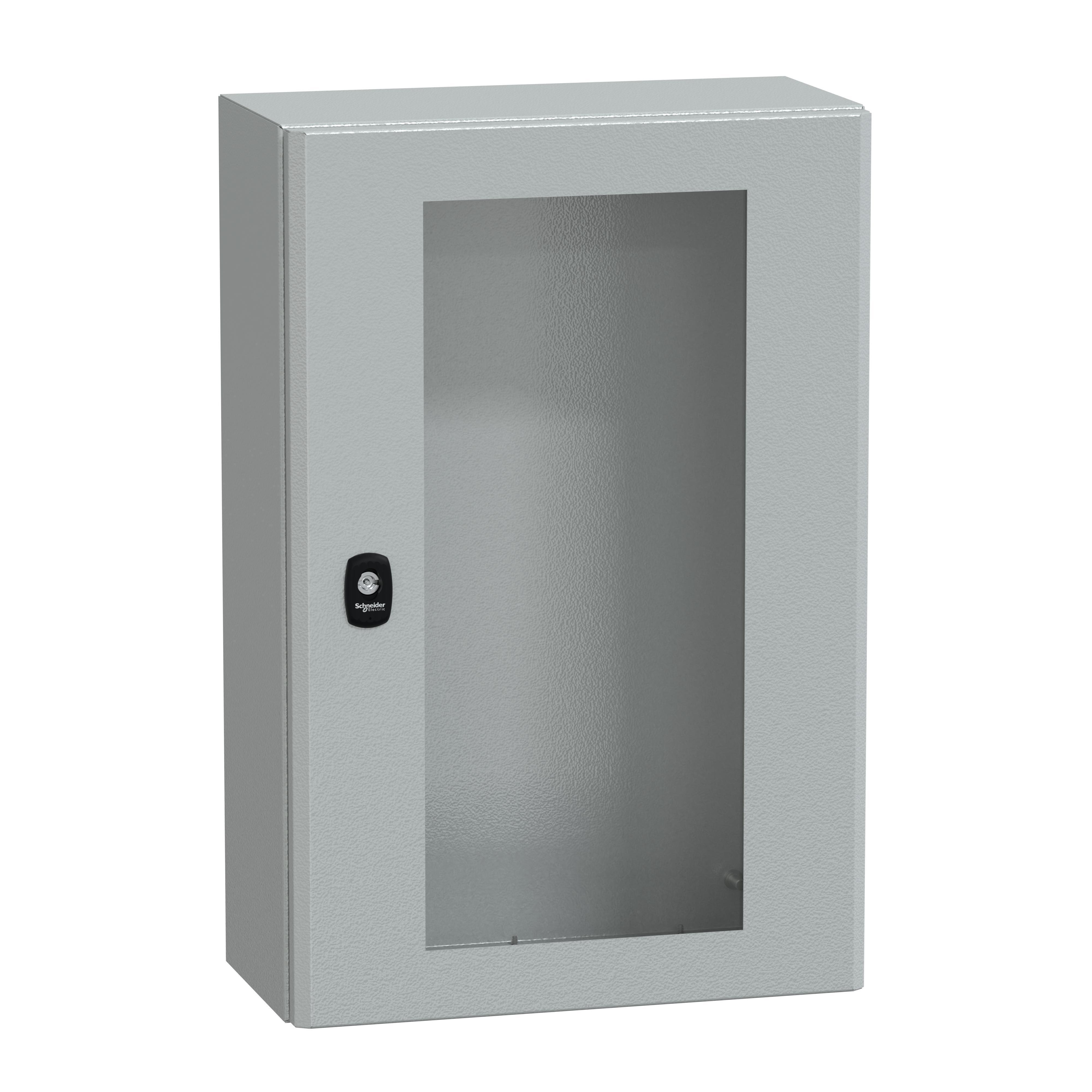

Catalog Description: Wall mounted steel enclosure, PanelSeT S3D, transparent door, without mounting plate, 600x400x200mm, IP66, IK08
NSYS3D6420T Application
Multi-purposeNSYS3D6420T Item Features
- One-piece folded and welded body, double plate thickness gutter shaped front profile
- Flat rear panel
- IP 66 degree of protection for all single door enclosures
- IP 55 degree of protection for double door enclosures
- A light and resistant enclosure with folded cross structure sheet steel
- IK 10 external mechanical impact resistance for enclosures with plain door
- IK 08 external mechanical impact resistance for enclosures with glazed door
- Time saving : 54 dimensions with or without plain chassis, customized offer, wide range of accessories..
- Wide range of sizes from 300X200X150 to 1400X1000X300
- Grey color RAL 7035 finsih
- Spacial S3DEX WM ATEX (10 dimensions)
- Spacial S3DM Modular distribution enclosure
- Spacial S3DB Terminals enclosure
- An offer developed for centralization and transmission of signals in industrial installations or on machines
- Standard type of gland plate
- Front face 1 number of doors
- Reversible 120 deg door opening side
NSYS3D6420T Standards
BV|LR|GL|DNV|CUL|UL Listed|IEC 62208SKU #2456251Part Number #NSYS3D6420TUNSPSC39121324UPC03606480159312
Image provided may only be a representation of final product and may include optional equipment
