Part Number # NSYS3DC121030
SKU # 2330748
NSYS3DC121030

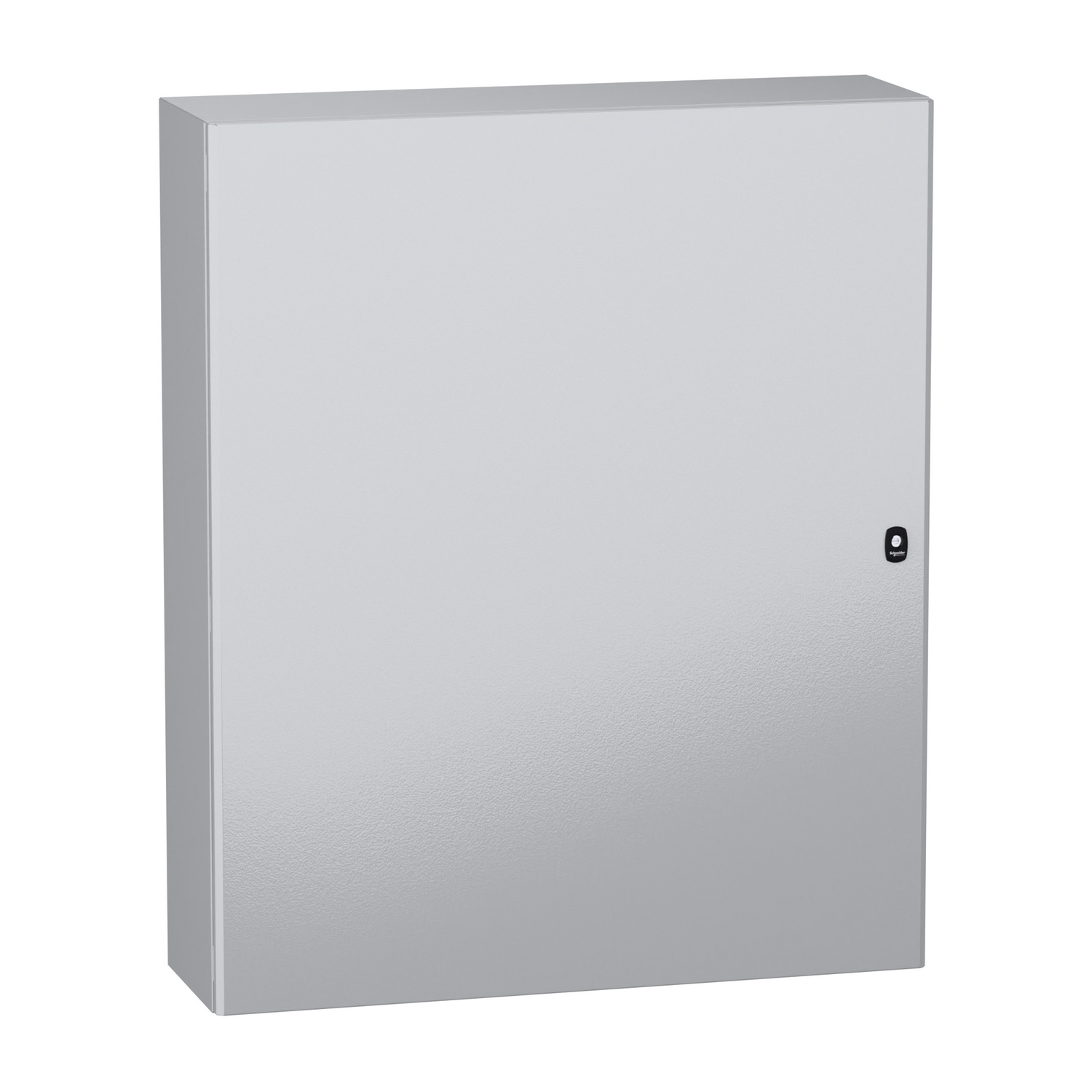

Schneider Electric NSYS3DC121030 Spacial Enclosure
Part Number # NSYS3DC121030
SKU # 2330748
Schneider Electric NSYS3DC121030 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | NSYS3DC121030 |
| SKU #: | 2330748 |
| Finish: | Epoxy Polyester Powder Coated |
| NEMA Rating: | NEMA 1/2/3/3R/4/4X |
| Series: | NSYS3DC |
| Type: | 1-Door Compact |
| Country of origin: | FR |
| Depth: | 300, 300 mm |
| Height: | 1200 mm |
| Material: | Steel |
| Mounting type: | Wall |
| Width: | 1000, 1000 mm |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121303 |
| UPC: | 00785901662853 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric NSYS3DC121030 Spacial Enclosure
Brand: Schneider Electric
Part Number: NSYS3DC121030
Schneider Electric Square D Spacial Enclosure, 1-Door Compact, Series: NSYS3DC, 1000 mm Width, 300 mm D, 1200 mm Height, NEMA 1/2/3/3R/4/4X, Hinged Cover, Lock: 3-Point/Screw Driver Insert, Wall Mount, Steel, Epoxy Polyester Powder Coated, Gray
Additional Description: SQD -NSYS3DC121030 S3DC H1200xL1000xP300 plain door
Catalog Description: Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 1200x1000x300mm, IP66, IK10
NSYS3DC121030 Application
For used to protect equipment in most indoor installations with harsh and dirty environments and multi-purpose applicationsNSYS3DC121030 Item Features
- IP66 conforming to IEC 60529
- Without mounting plate, plain chassis and cable gland plate
NSYS3DC121030 Standards
RoHS Compliant|IEC 62208|UL 508A|Green Premium|REACH Compliant|ECCN: EAR99SKU #2330748Part Number #NSYS3DC121030UNSPSC39121303UPC00785901662853
Image provided may only be a representation of final product and may include optional equipment
