Part Number # NSYS3DC3315
SKU # 2237028
NSYS3DC3315
Schneider Electric NSYS3DC3315 Spacial Enclosure
Part Number # NSYS3DC3315
SKU # 2237028
Schneider Electric NSYS3DC3315 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | NSYS3DC3315 |
| SKU #: | 2237028 |
| Finish: | Epoxy Polyester Powder Coated |
| NEMA Rating: | NEMA 1/2/3/3R/4/4X |
| Series: | NSYS3DC |
| Type: | 1-Door Compact |
| Country of origin: | FR |
| Depth: | 150, 150 mm |
| Height: | 300 mm |
| Length: | 300 |
| Material: | Steel |
| Mounting type: | Wall |
| Width: | 300, 300 mm |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121303 |
| UPC: | 00785901662938 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric NSYS3DC3315 Spacial Enclosure
Brand: Schneider Electric
Part Number: NSYS3DC3315
Schneider Electric Square D Spacial Enclosure, 1-Door Compact, Series: NSYS3DC, 300 mm Width, 150 mm D, 300 mm Height, NEMA 1/2/3/3R/4/4X, Hinged Cover, Lock: Screw Driver Insert, Wall Mount, Steel, Epoxy Polyester Powder Coated, Gray
Additional Description: SQD -NSYS3DC3315 S3DC H300xL300xP150 plain door
Catalog Description: Wall mounted steel enclosure, PanelSeT S3DC, plain door, without plain chasis, 300x300x150mm, IP66, IK10
NSYS3DC3315 Application
For protecting equipment in most indoor installations with harsh and dirty environments, gutter shaped front profile double sheet THK single piece body and multi-purpose applicationsNSYS3DC3315 Item Features
- IP66 conforming to IEC 60529
- Without mounting plate, plain chassis and cable gland plate
NSYS3DC3315 Standards
RoHS Compliant|IEC 62208|UL 508A|cUL Listed|Green Premium|REACH Compliant|ECCN: EAR99SKU #2237028Part Number #NSYS3DC3315UNSPSC39121303UPC00785901662938

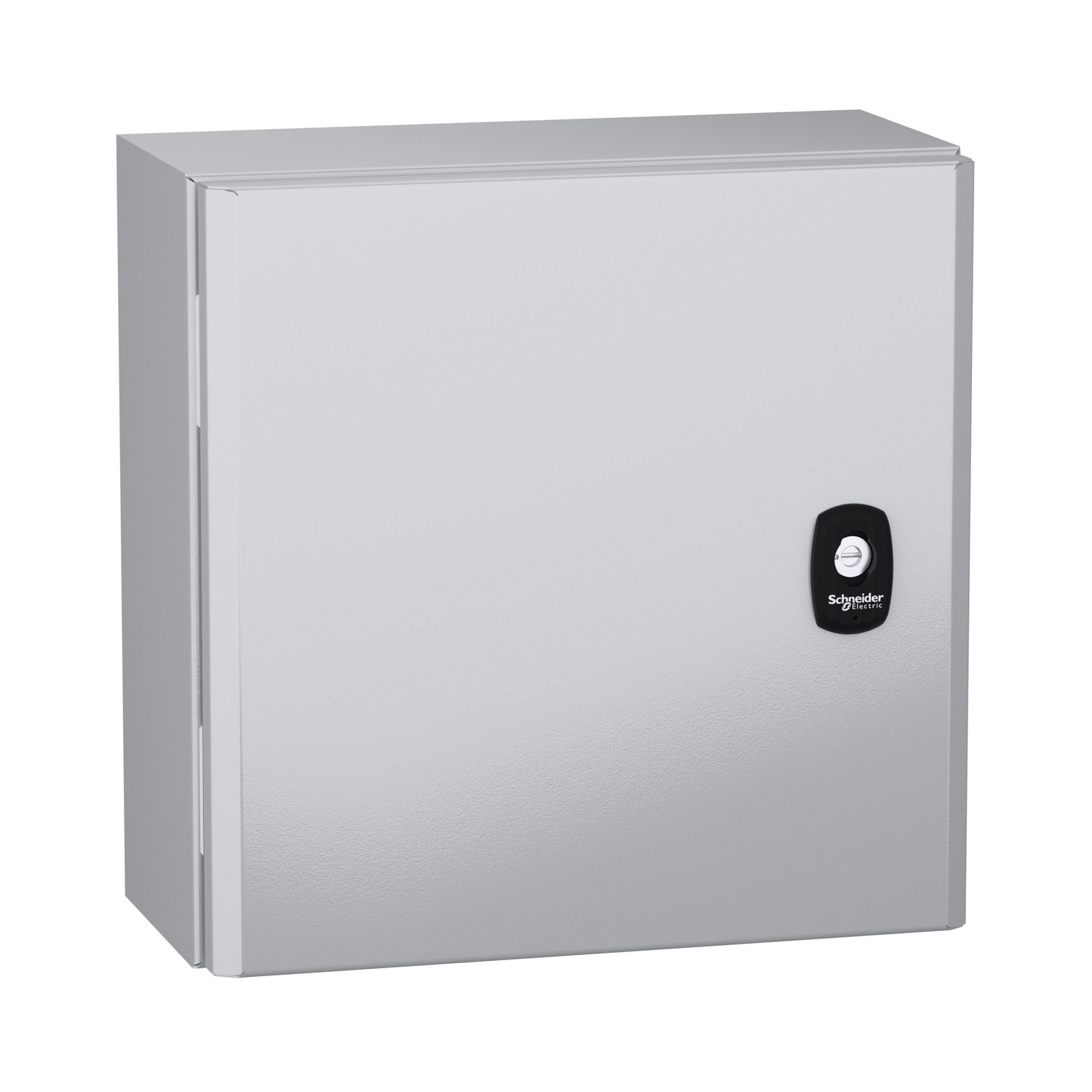

Image provided may only be a representation of final product and may include optional equipment
