Part Number # NSYSBM152012
SKU # 2454962
Image Disclaimers Message
NSYSBM152012

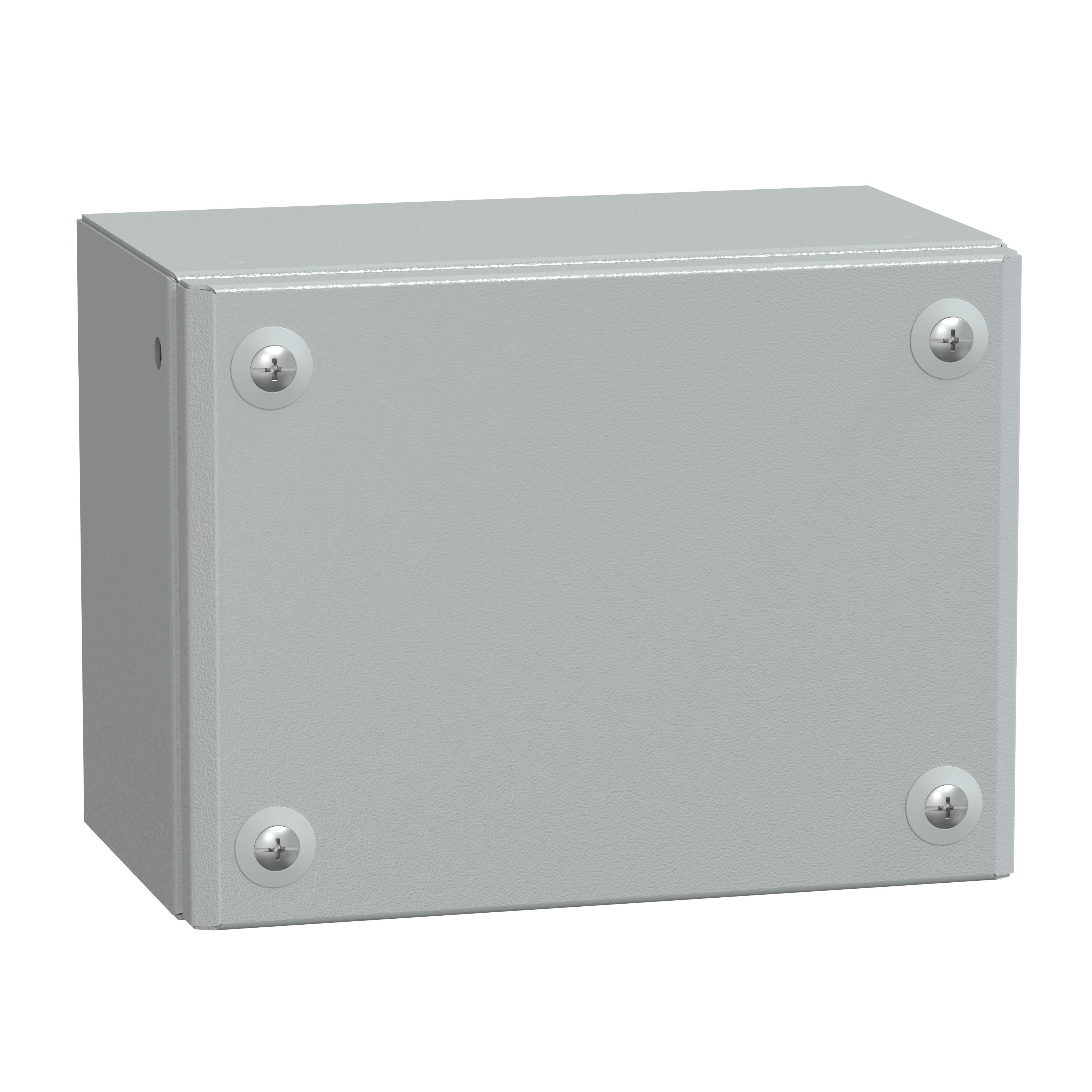

Schneider Electric NSYSBM152012
Part Number # NSYSBM152012
SKU # 2454962
$53.32 / Each
Typical price:$63.75 / Each
Schneider Electric NSYSBM152012 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | NSYSBM152012 |
| SKU #: | 2454962 |
| Finish: | Polyester Powder |
| Series: | SBM Series |
| Temperature Rating (Degrees F): | -35 to 60 deg C |
| Color: | Gray |
| Country of origin: | ES |
| Depth: | 4.72 in |
| Height: | 5.91 in |
| Material: | Sheet Steel |
| Mounting type: | Wall |
| Width: | 7.87 in |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121324 |
| UPC: | 03606480520112 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$53.32 / Each
Typical price:$63.75 / Each
Quantity:
- Schneider Electric NSYSBM152012, SBM Series, 7.87 in Width, 4.72 in Depth, 5.91 in Height, Cover by captive screws Cover, Lock: Captive screw PZ2 outside sealed area , Wall Mounting, -35 to 60 deg C, sheet steel, Polyester powder, Gray
NSYSBM152012 Application
For Spacial SBMNSYSBM152012 Item Features
- 45 different boxes in plain versions, entry plate versions and a BUS version with a glazed door and entry plates are available
- Easy installation with direct fixing through the rear, or mounting with external lugs
- Steel enclosures, protected inside and outside with epoxy-polyester paint in
- RAL 7035 grey
- Polyurethane sealing gasket applied throughout the range Multiple installation accessories
- Extension box access allows ease of component installation and adjustment
- FL21 cable entry compliant for seamless and easy connections
- The industrys largest combination of dimensions, with 42 varieties available in the catalogue
- Easy to use, simple to install thanks to compatibility with many existing boxes and their accessories
- Attractive and tough design provides protection of your most sensitive electronics
- Reliable delivery world-wide to get you up and running on schedule
- Single piece body folded and welded body type
- Plain door type of front cover
- Half turn metal screw cover fixing
NSYSBM152012 Standards
LR|DNV-GL|UL Listed|BV|IEC 62208SKU #2454962Part Number #NSYSBM152012UNSPSC39121324UPC03606480520112
