Part Number # NSYTBS342916H
SKU # 2451055

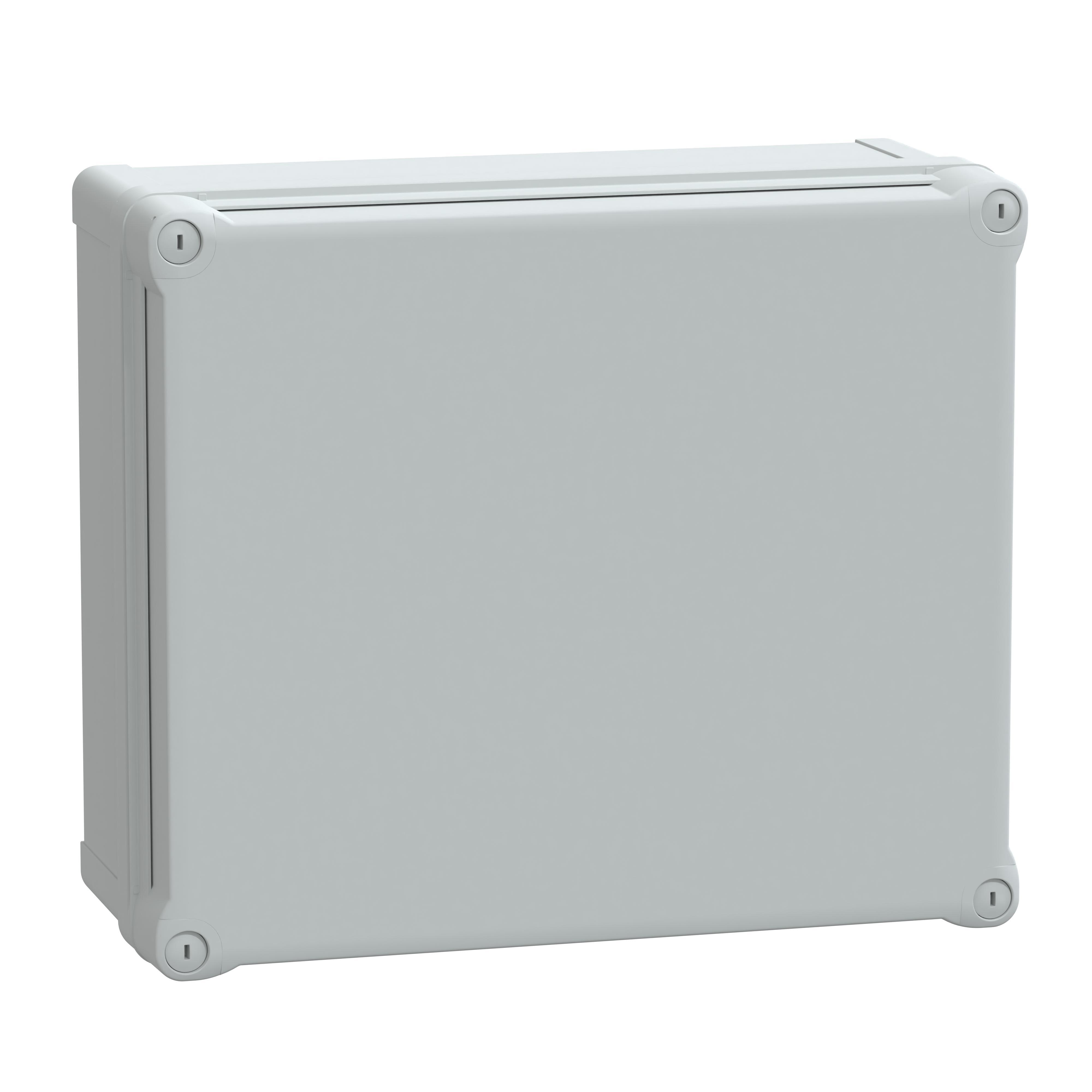

Image provided may only be a representation of
final product and may include optional equipment
NSYTBS342916H
Schneider Electric NSYTBS342916H
Part Number # NSYTBS342916H
SKU # 2451055
$46.14 / Each
Typical price:$55.16 / Each
Schneider Electric NSYTBS342916H Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | NSYTBS342916H |
| SKU #: | 2451055 |
| Insulation: | Class II |
| NEMA Rating: | NEMA 4/4X |
| Temperature Rating (Degrees F): | -15 to 40 deg C |
| Country of origin: | HU |
| Depth: | 6.61 in |
| Height: | 13.43 in |
| Material: | Acrylonitrile butadiene-styrene |
| Mounting type: | Wall |
| Width: | 11.46 in |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121324 |
| UPC: | 03606480165412 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$46.14 / Each
Typical price:$55.16 / Each
Quantity:
Schneider Electric NSYTBS342916H
Brand: Schneider Electric
Part Number: NSYTBS342916H
Additional Description: SQD -NSYTBS342916H (N) TBS ext291x168x341mm high cov. IP66 IK07 NON-CANCELABLE, NON-RETURNABLE
Catalog Description: ABS industrial box, PanelSeT TBS, 291x168x341mm, int. 275x160x325mm, high plain cover, IP66, IK07, RAL 7035
NSYTBS342916H Application
For storage/operation isNSYTBS342916H Item Features
- IP 66, NEMA 4-4X watertightness
- Polyurethane gasket put down on the lid
- Type II double electrical insulation
- -25 up to +60 deg C usage temperature
- 650 deg C glow wire resistance
- IK 07 External mechanical resistance
- Rounded design intended to increase robustness
- 20 dimensions from 74x74 to 341x291mm (exterior)
- Opaque and Tinted transparent (from 138x93mm) covers
- 38 models in total
- Grey color, RAL 7035
- 12.80 in (325 mm) internal height
- 10.83 in (275 mm) internal width
- 6.30 in (160 mm) internal depth
- One piece moulded body type
- High plain cover type of front cover
- Plastic screws cover fixing
- Class II electrical insulation class
- 1202 deg F (650 deg C) IEC 60695-2-11 glow wire resistance
- With toxic heavy metal free
NSYTBS342916H Standards
TUV|IEC 62208SKU #2451055Part Number #NSYTBS342916HUNSPSC39121324UPC03606480165412
