Part Number # NSYTRV44DBL
SKU # 2450557

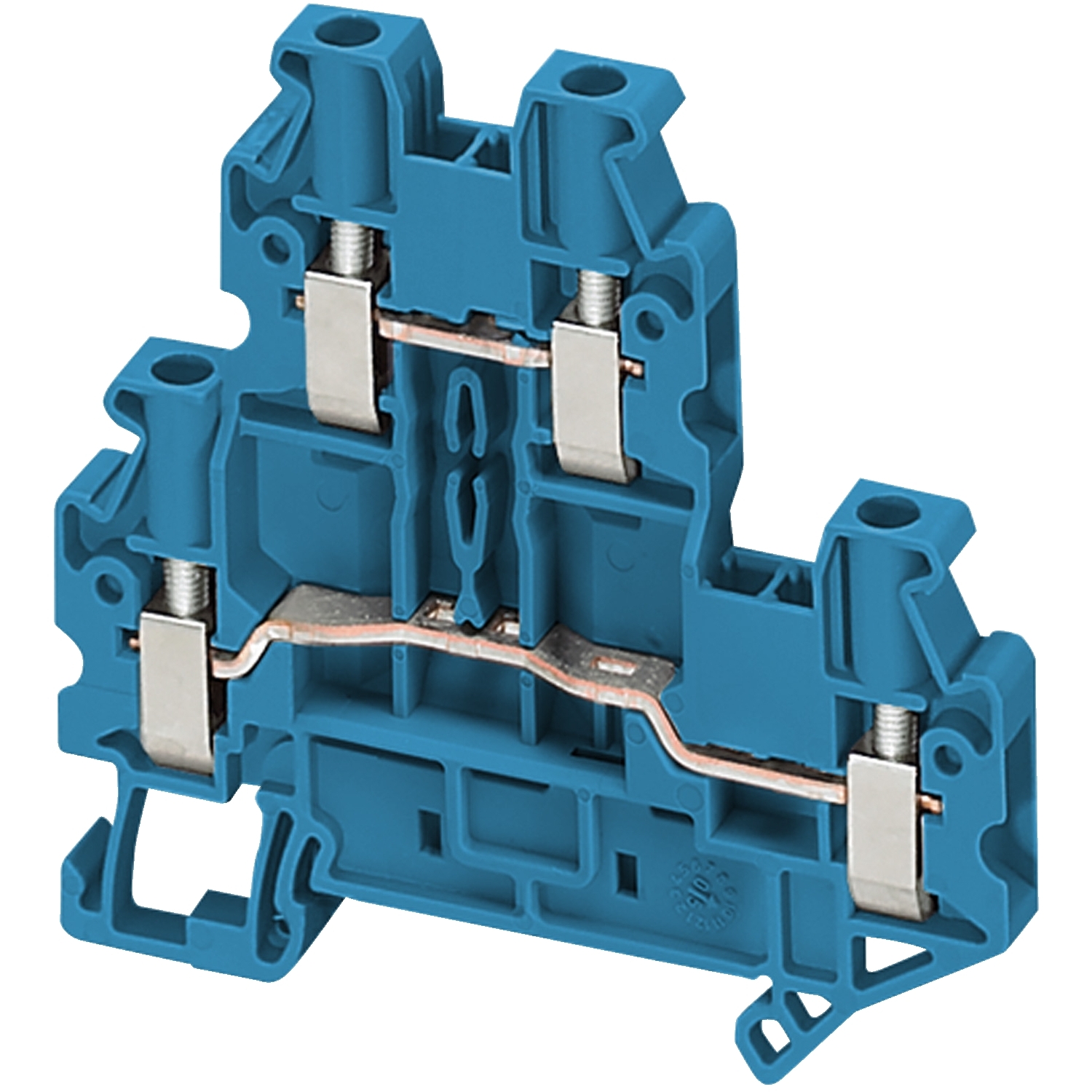

Image provided may only be a representation of
final product and may include optional equipment
NSYTRV44DBL
Schneider Electric NSYTRV44DBL
Part Number # NSYTRV44DBL
SKU # 2450557
Schneider Electric NSYTRV44DBL Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | NSYTRV44DBL |
| SKU #: | 2450557 |
| Amperage Rating: | 36 A |
| Dimensions: | 2.75 in L x 0.24 in W x 2.56 in H |
| Number of Poles: | 2 |
| Series: | NSYTRV |
| Temperature Rating (Degrees F): | -40 to 266 deg F |
| Terminal Size: | 4 sq-mm |
| Terminal Type: | Pass Through |
| Torque Rating: | 5.31 to 7.08 in-lb |
| Type: | 2-Level 2-Terminal |
| Wire Size: | 26 to 10 AWG Solid/Stranded |
| Connection type: | Terminal Screw |
| Country of origin: | US |
| Material: | Polyamide 6.6 |
| Mounting type: | Clip, DIN Rail |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121410 |
| UPC: | 00785901951261 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric NSYTRV44DBL
Brand: Schneider Electric
Part Number: NSYTRV44DBL
Schneider Electric Square D™ Linergy™ TR Terminal Block, 2-Level 2-Terminal, Series: NSYTRV, 800 V, 36 A, 2 Pole, 26 to 10 AWG Solid/Stranded Wire, 0.35 in Wire Strip Length, Pass Through Terminal, 4 sq-mm Terminal, 5.31 to 7.08 in-lb Torque, Clip Mounting, Terminal Screw Connection, -40 to 266 deg F, Polyamide 6.6, Blue, 2.75 in L x 0.24 in W x 2.56 in H Dimensions
Additional Description: SQD -NSYTRV44DBL SCREW TERMINAL, DOUBLE LEVEL, 4 POINTS,
Catalog Description: Terminal block, Linergy TR, blue, 4mm2, double level, 4 points, set of 10
NSYTRV44DBL Application
For Prisma G/Prisma P/Prisma PH panel building system, Prisma pack wall-mounting enclosure, spacial enclosure, Kaedra weatherproof enclosure, Pragma modular enclosure and TeSys motor controlsNSYTRV44DBL Includes
(4) Test PointNSYTRV44DBL Item Features
- Double deck
NSYTRV44DBL Standards
V0 0.8 mm UL 94NSYTRV44DBL Warranty
18 monthsSKU #2450557Part Number #NSYTRV44DBLUNSPSC39121410UPC00785901951261
