Brand: Schneider Electric

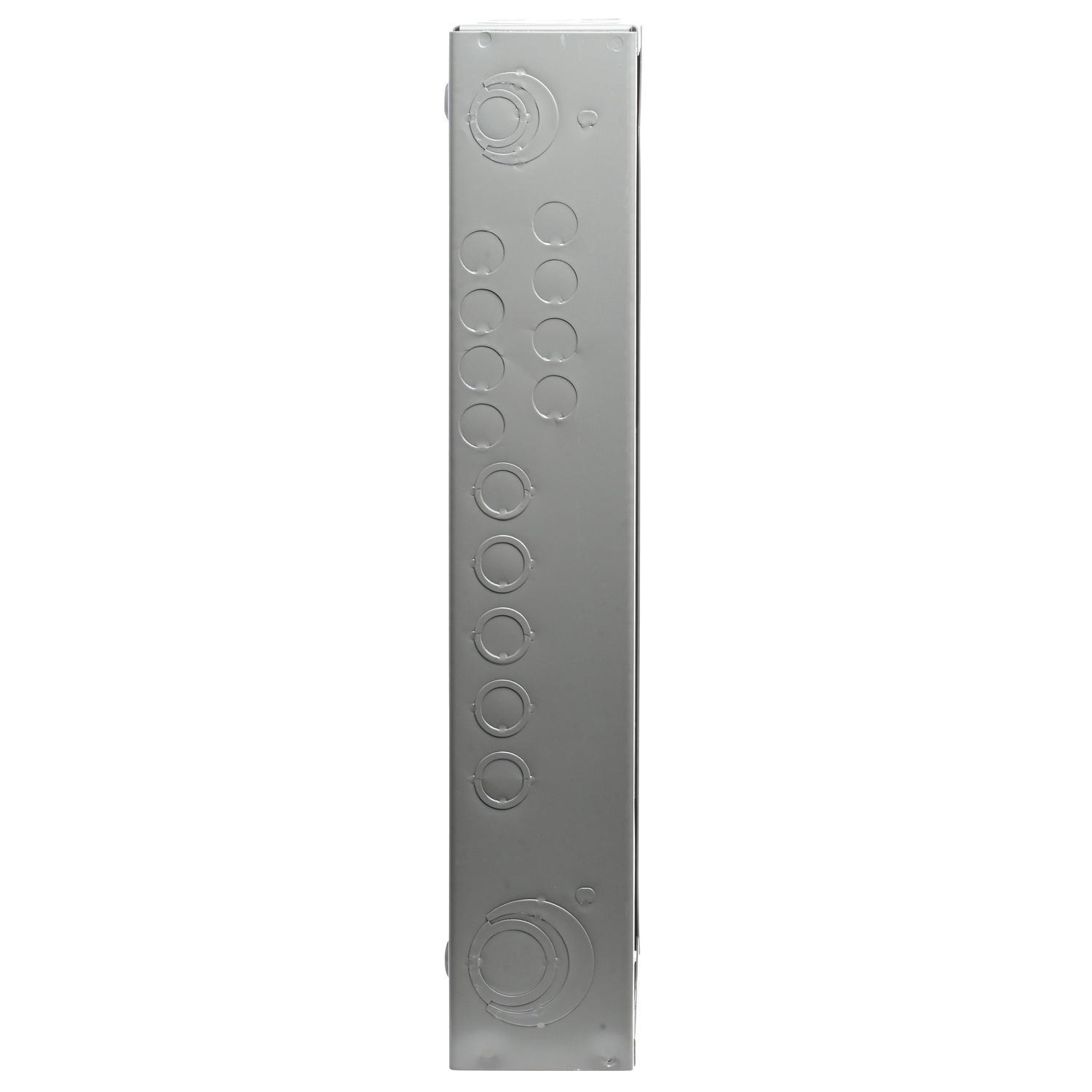

Schneider Electric QO QO120L125PWG 1-Phase Convertible Main Lug Neutral Load Center
Image Disclaimers Message
Brand: Schneider Electric
Schneider Electric QO QO120L125PWG 1-Phase Convertible Main Lug Neutral Load Center
Brand: Schneider Electric
Schneider Electric QO QO120L125PWG 1-Phase Convertible Main Lug Neutral Load Center
Part #:QO120L125PWG
SKU #: 2425680
$130.55/EA
Key Features
Part #:QO120L125PWG
SKU #: 2425680
Brand: Schneider Electric
Amperage Rating: 125 A
Breaker Mounting: Plug-On
Enclosure Box Size: 14.25 in W x 3.75 in D x 20.92 in H
Enclosure Type: NEMA 1
Interrupt Rating: 22 kA
$130.55/EA
- 3/4 in W circuit breaker
- Separate flush or surface mount covers
- Full complement of accessories
- Backed out neutral screws save labor and installation time
- Exclusive shielded copper bus features electro tin plated copper bus bars sandwiched between two rugged polymer shields to insulate and secure the interior
- Straight-in mains wiring and uniform termination lugs help minimize service cable bends, cutting waste and saving installation time
- Convertible mains allow fast field conversion between main breaker and main lugs to meet changing job requirements
- Standard 22000/10000 A series short circuit current rating on main breaker load centers provides increased application capability
- QO 3 ph main circuit breaker panels can be field upgraded to provide 100000 A short circuit current ratings
- Single, captive interior mounting screw cant be lost
- Interior mounts quickly and can easily be removed during rough-in for paint or theft protection
- Split branch neutral with up to 50% more terminations than UL requirement - simplifies wiring and reduces clutter
- Indoor enclosures designed to rotate 180 deg to accommodate top or bottom service entrance feed, saving expensive service cable
- Combination slot/square drive neutral, ground and cover screw accommodate both standard flat blade screwdrivers and square head drivers
- Three ground bar mounting locations (left, right and end) make it easier to wire
Specifications
Brand: Schneider Electric
Amperage Rating: 125 A
Breaker Mounting: Plug-On
Enclosure Box Size: 14.25 in W x 3.75 in D x 20.92 in H
Enclosure Type: NEMA 1
Interrupt Rating: 22 kA
Number of Circuits: 20
Number of Poles: 1
Number of Spaces: 20
Type: 1-Phase
Voltage Rating: 120/240 VAC
Country of origin: US
Manufacturer Name: Schneider Electric
UNSPSC: 39121101
UPC: 00785901605430
Schneider Electric QO QO120L125PWG 1-Phase Convertible Main Lug Neutral Load Center
QO PON LC N1 1PH ML 125A WIDE GUTTER
Additional Description: SQD -QO120L125PWG QO PON N1 1PH 125A ML WIDE GUTTER W/GB
Catalog Description: Load center, QO, 1 phase, 20 spaces, 20 circuits, 125A convertible main lugs, PoN, NEMA1, wide gutter, UL
Item FeaturesResidential, Remodels/Upgrades, Commercial, Agricultural and Indoor Applications
Item FeaturesWide Gutter
Item Features
Item FeaturesUL Listed
Item FeaturesLifetime
