Part Number # QO124M200PWG125
SKU # 2425689
Image Disclaimers Message
QO124M200PWG125

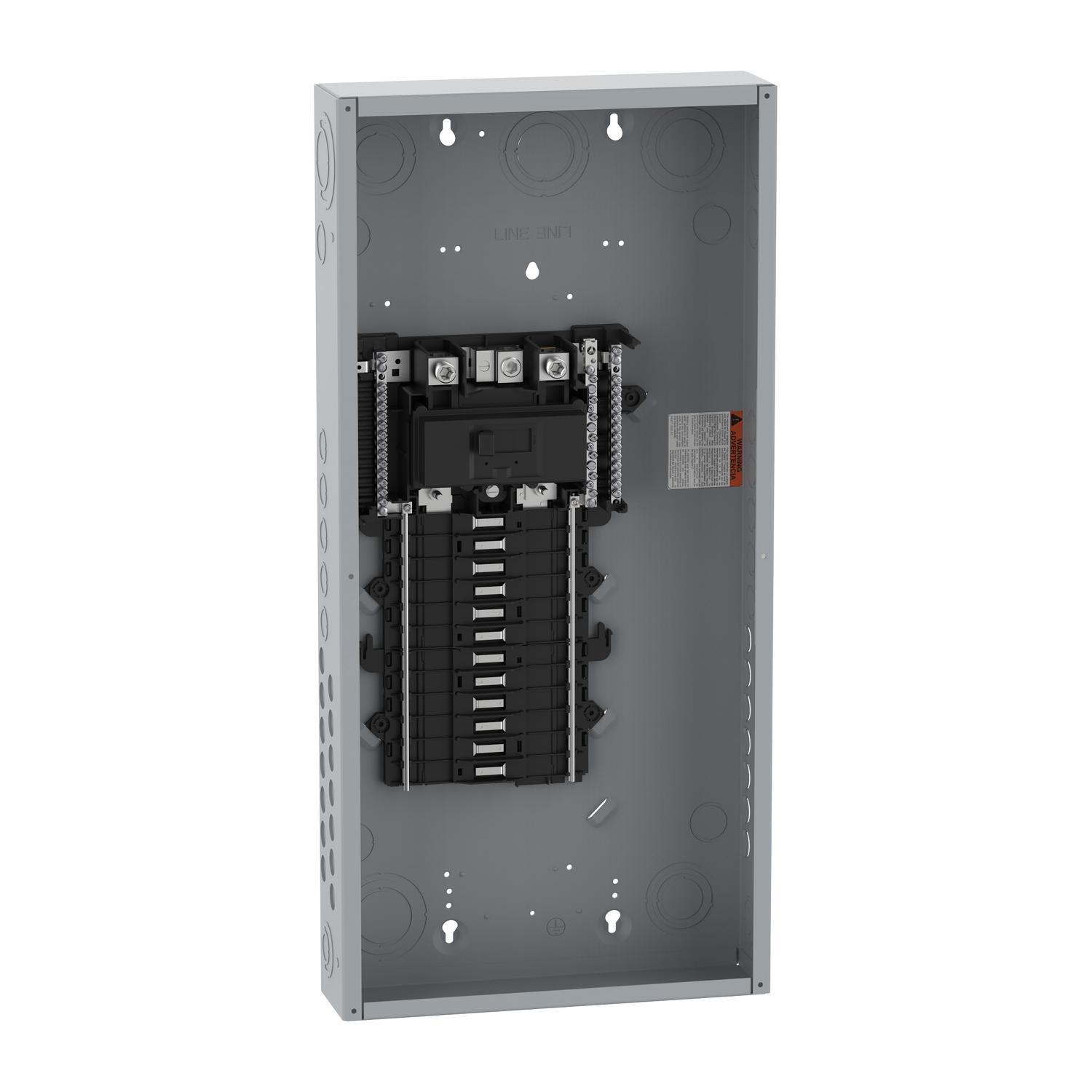

Schneider Electric QO QO124M200PWG125 1-Phase Convertible Main Neutral Load Center
Part Number # QO124M200PWG125
SKU # 2425689
$283.26 / Each
Typical price:$897.00 / Each
Schneider Electric QO124M200PWG125 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | QO124M200PWG125 |
| SKU #: | 2425689 |
| Amperage Rating: | 200 A |
| Breaker Mounting: | Plug-On |
| Enclosure Box Size: | 14.25 in W x 3.75 in D x 29.86 in H |
| Enclosure Type: | NEMA 1 |
| Interrupt Rating: | 22 kA |
| Number of Circuits: | 24 |
| Number of Poles: | 1 |
| Number of Spaces: | 24 |
| Type: | 1-Phase |
| Country of origin: | US |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121101 |
| UPC: | 00785901611196 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$283.26 / Each
Typical price:$897.00 / Each
Quantity:
- Square D QO Convertible Main Neutral Load Center, 1-Phase, 120/240 V AC, 200 A, 1 Pole, 22 kA Interrupt, 24 Circuits, Plug-On Breaker Mounting, 24 Spaces, NEMA 1 Enclosure, 14.25 in W x 3.75 in D x 29.86 in H Enclosure Box
QO124M200PWG125 Application
Residential, Remodels/Upgrades, Commercial, Agricultural and Indoor ApplicationsQO124M200PWG125 Includes
Wide GutterQO124M200PWG125 Item Features
- 3/4 in W circuit breaker
- Separate flush or surface mount covers
- Full complement of accessories
- Backed out neutral screws save labor and installation time
- Exclusive shielded copper bus features electro tin plated copper bus bars sandwiched between two rugged polymer shields to insulate and secure the interior
- Straight-in mains wiring and uniform termination lugs help minimize service cable bends, cutting waste and saving installation time
- Convertible mains allow fast field conversion between main breaker and main lugs to meet changing job requirements
- Standard 22000/10000 A series short circuit current rating on main breaker load centers provides increased application capability
- QO 3 ph main circuit breaker panels can be field upgraded to provide 100000 A short circuit current ratings
- Single, captive interior mounting screw cant be lost
- Interior mounts quickly and can easily be removed during rough-in for paint or theft protection
- Split branch neutral with up to 50% more terminations than UL requirement - simplifies wiring and reduces clutter
- Indoor enclosures designed to rotate 180 deg to accommodate top or bottom service entrance feed, saving expensive service cable
- Combination slot/square drive neutral, ground and cover screw accommodate both standard flat blade screwdrivers and square head drivers
- Three ground bar mounting locations (left, right and end) make it easier to wire
QO124M200PWG125 Standards
UL ListedQO124M200PWG125 Warranty
LifetimeSKU #2425689Part Number #QO124M200PWG125UNSPSC39121101UPC00785901611196
