Part Number # QO2205237
SKU # 2452850
QO2205237
Schneider Electric QO2205237
Part Number # QO2205237
SKU # 2452850
Square D QO2205237 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | QO2205237 |
| SKU #: | 2452850 |
| Amperage Rating: | 20 A |
| Dimensions: | 3 in H x 1.5 in W x 2.91 in D |
| Enclosure Type: | NEMA AB1 |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 10 kA at 120/240 VAC, 5 kA at 48 VDC |
| Number of Poles: | 2 |
| Phase: | 1 |
| Temperature Rating (Degrees F): | 104 deg F |
| Trip Type: | Thermal Magnetic |
| Type: | Type QO |
| Wire Size: | 14 to 8 AWG Al/Cu |
| Connection type: | Ring Tongue |
| Country of origin: | US |
| Material: | Fiberglass Filled Thermoset |
| Mounting type: | Plug-In |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121603 |
| UPC: | 00785901933083 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric QO2205237
Brand: Square D
Part Number: QO2205237
Square D™ Miniature Circuit Breaker, Type QO, 120/240 VAC, 48 VDC, 20 A, 50/60 Hz Frequency, 10 kA at 120/240 VAC, 5 kA at 48 VDC Interrupt, Thermal/Magnetic Trip, 2 Pole, 1 ph, Ring Tongue Connection, 14 to 8 AWG Al/Cu Wire, NEMA AB1 Enclosure, Plug-In Mounting, 104 deg F, 3 in H x 1.5 in W x 2.91 in D Dimensions, Fiberglass Filled Thermoset
Additional Description: SQD -QO2205237 MINIATURE CIRCUIT BREAKER 120/240V 20A
Catalog Description: Mini circuit breaker, QO, 20A, 2 pole, 120/240VAC, 10kA, plug in, ring
QO2205237 Application
Residential and Light Commercial, Commercial and Industrial Circuit Protection, High Interruption Rating Capabilities, Overcurrent Protection, Short Circuit Protection, Parallel and Series Arc Fault Protection and Ground Fault ProtectionsQO2205237 Item Features
- Reliable and durable
- Plug-on neutral design and shorter footprint for faster installs
- Simple design and clear instructions for quick setup
- Time-saving diagnostics with touch of a button
QO2205237 Standards
RoHS Compliant|CSA 22.2 No. 5|Federal Specification W-C-375B/GEN|HACR Rated|NOM/ANCE Certified|UL 489 File No. E84967|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.govSKU #2452850Part Number #QO2205237UNSPSC39121603UPC00785901933083

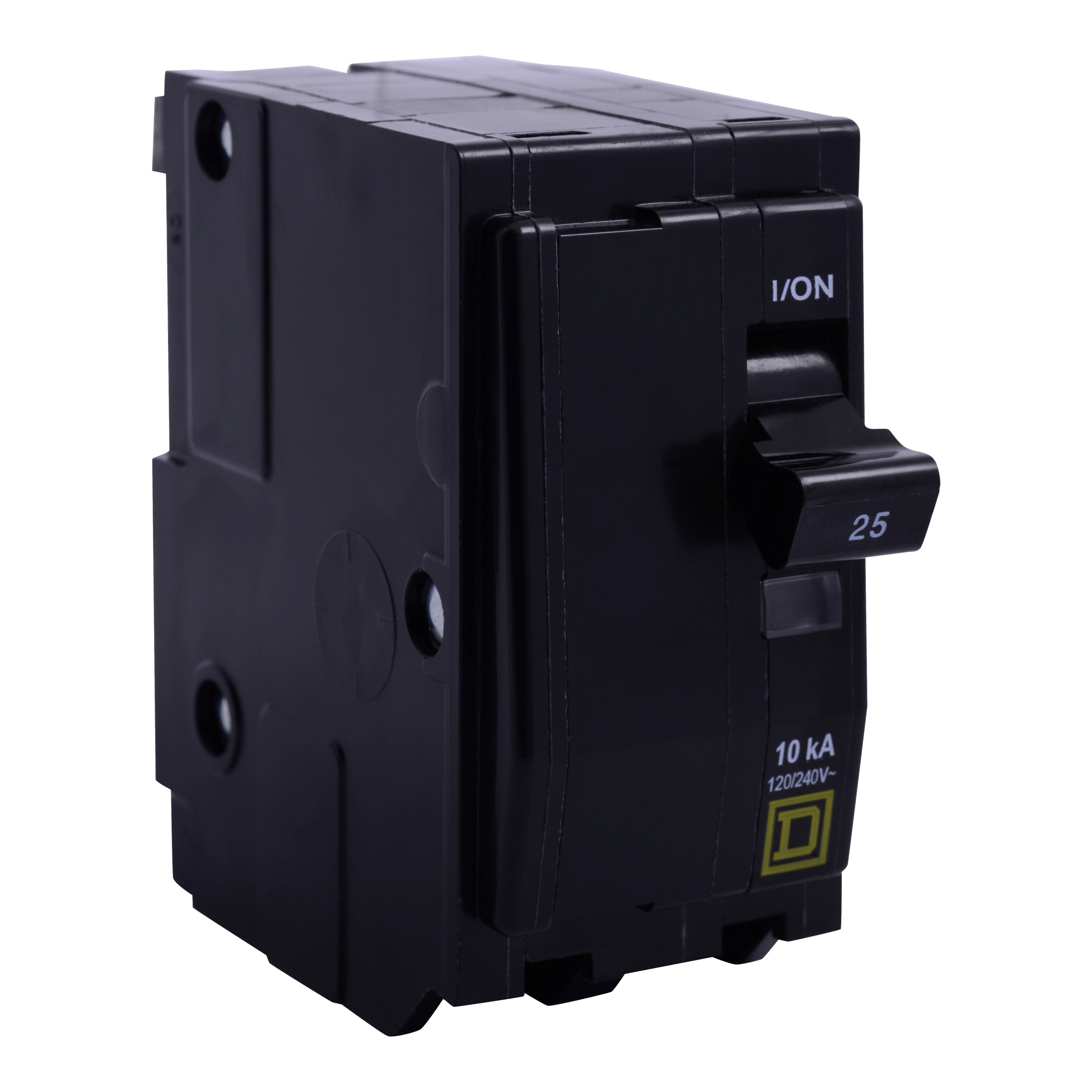

Image provided may only be a representation of final product and may include optional equipment
