Part Number # QOB1155237
SKU # 2447106

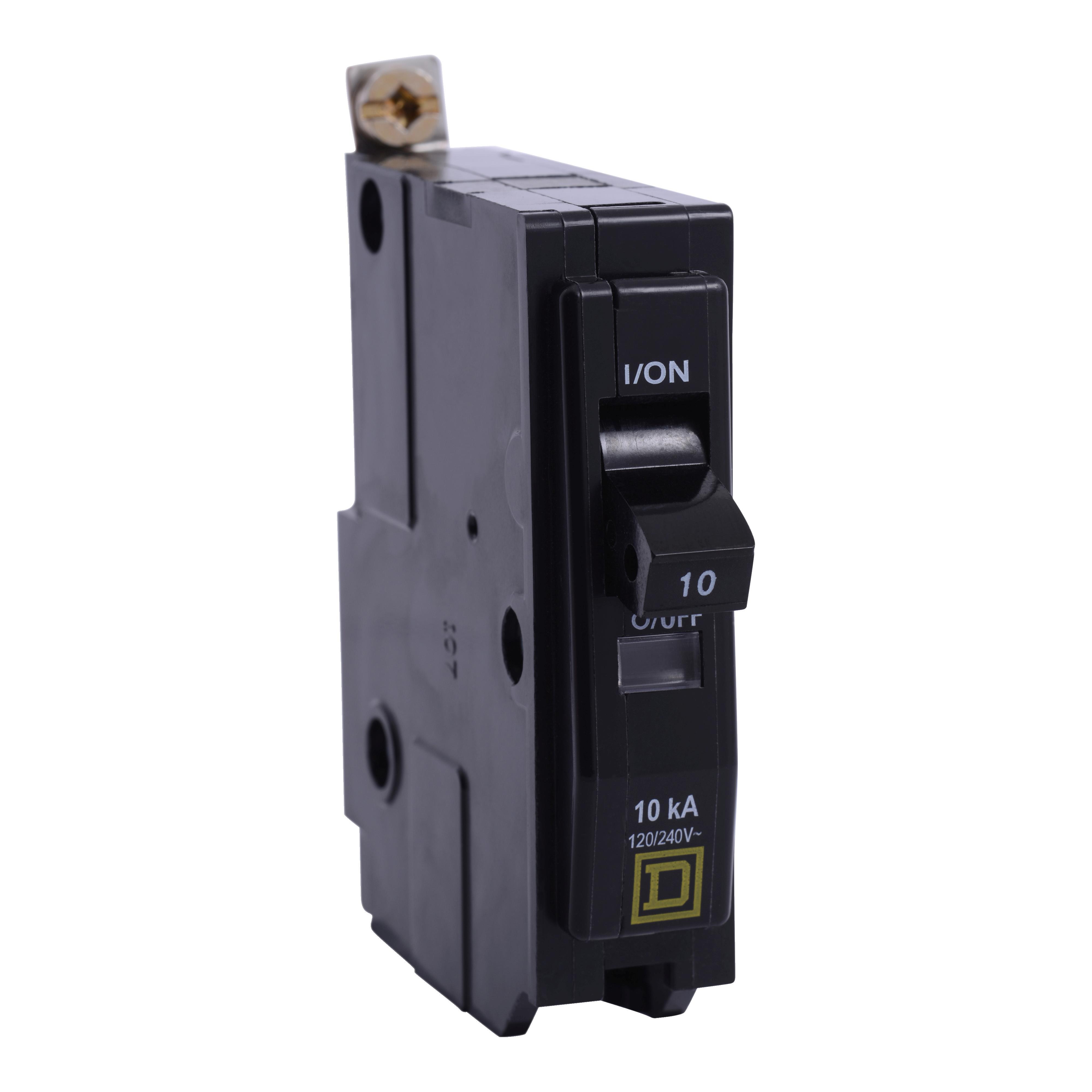

Image provided may only be a representation of
final product and may include optional equipment
QOB1155237
Schneider Electric QOB1155237
Part Number # QOB1155237
SKU # 2447106
Square D QOB1155237 Key Features
| Brand: | Square D |
|---|---|
| Part Number # : | QOB1155237 |
| SKU #: | 2447106 |
| Amperage Rating: | 15 A |
| Dimensions: | 3 in H x 0.75 in W x 2.91 in D |
| Enclosure Type: | NEMA AB1 |
| Frequency Rating: | 50/60 Hz |
| Interrupt Rating: | 10 kA at 120/240 VAC, 5 kA at 48 VDC |
| Number of Poles: | 1 |
| Phase: | 1 |
| Temperature Rating (Degrees F): | 104 deg F |
| Trip Type: | Thermal Magnetic, Thermal/Magnetic |
| Type: | Type QOB |
| Wire Size: | 14 to 8 AWG Cu |
| Connection type: | Ring Tongue |
| Country of origin: | MX |
| Material: | Fiberglass Filled Thermoset |
| Mounting type: | Bolted-On |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121603 |
| UPC: | 00785901088493 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric QOB1155237
Brand: Square D
Part Number: QOB1155237
Square D™ Miniature Circuit Breaker, Type QOB, 120/240 VAC, 48 VDC, 15 A, 50/60 Hz Frequency, 10 kA at 120/240 VAC, 5 kA at 48 VDC Interrupt, Thermal/Magnetic Trip, 1 Pole, 1 ph, Ring Tongue Connection, 14 to 8 AWG Cu Wire, NEMA AB1 Enclosure, Bolted-On Mounting, 104 deg F, 3 in H x 0.75 in W x 2.91 in D Dimensions, Fiberglass Filled Thermoset
Additional Description: SQD -QOB1155237 MINIATURE CIRCUIT BREAKER 120/240V 15A
Catalog Description: Mini circuit breaker, QO, 15A, 1 pole, 120/240VAC, 10kA, bolt on, ring
QOB1155237 Application
Residential and Light Commercial, Commercial and Industrial Circuit Protection, High Interruption Rating Capabilities, Overcurrent Protection, Short Circuit Protection, Parallel and Series Arc Fault Protection and Ground Fault ProtectionsQOB1155237 Item Features
- Reliable and durable
- Plug-on neutral design and shorter footprint for faster installs
- Simple design and clear instructions for quick setup
- Time-saving diagnostics with touch of a button
QOB1155237 Standards
RoHS Compliant|CSA 22.2 No. 5|Federal Specification W-C-375B/GEN|HACR Rated|NOM/ANCE Certified|UL 489 File No. E84967|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2447106Part Number #QOB1155237UNSPSC39121603UPC00785901088493
