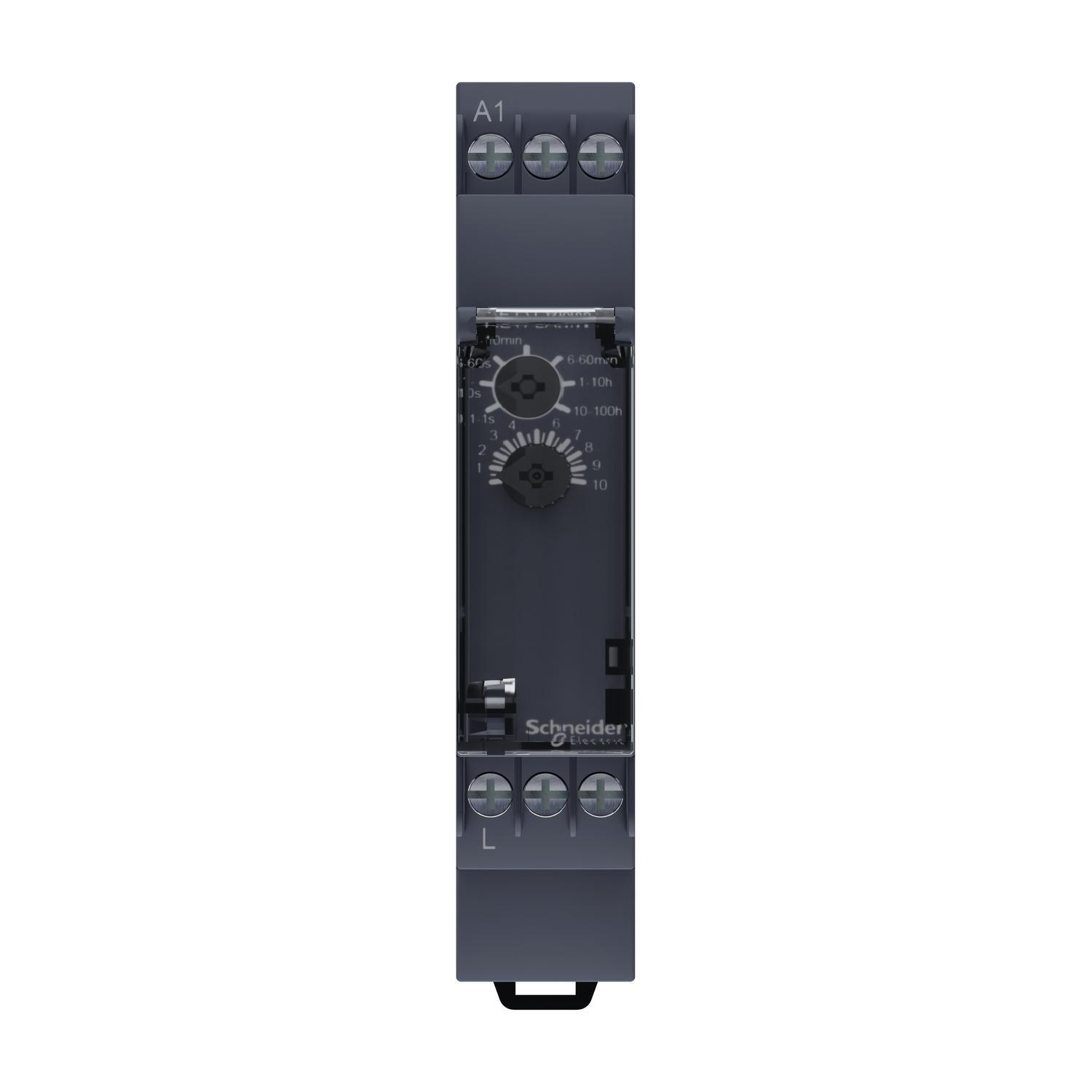

Schneider Electric RE17LAMW Zelio Modular Timing Relay
Part Number # RE17LAMW
SKU # 2281672
$47.73 / Each
Schneider Electric RE17LAMW Key Features
Brand: Schneider Electric
Part Number # RE17LAMW
SKU #2281672
Amperage Rating: 0.7 A
Contact Form: SPDT
Dimensions: 17.5 mm W x 90 mm H
Display Type: LED
Electrical Connections: Screw
Enclosure Type: IP20/IP40/IP50
Number of Poles: 1
Operation Mode: ON-Delay
Temperature Rating (Degrees F): -20 to 60 deg F
Time Setting: 0.1 sec to 100 hr
Voltage Rating: 24 to 240 VAC/VDC
Country of origin: ID
Mounting type: DIN Rail
Manufacturer Name: Schneider Electric
UNSPSC: 39121523
UPC: 00785901103066
$47.73 / Each
Schneider Electric RE17LAMW Zelio Modular Timing Relay
Brand: Schneider Electric
Part Number: RE17LAMW
Schneider Electric Square D Zelio Modular Timing Relay, Operation Mode: On-Delay, 24 to 240 VAC/VDC, 0.7 A, 1 Pole, SPDT Contact Form, 0.1 sec to 100 hr Time Setting, LED Display, Screw Electrical Connections, IP20/IP40/IP50 Enclosure, -20 to 60 deg F, DIN Rail Mounting, 17.5 mm W x 90 mm H Dimensions
Additional Description: SQD -RE17LAMW ON DELAY TIMER 24 240 VAC
Catalog Description: single function relay, Harmony Timer Relays, 0.7A, 1CO, 0,1s..100h, on delay, solid state output, 24..240V AC DC
RE17LAMW Item Features
- Read relay status
- Overwrite the output
- Manage NFC Timer Relay without power
- Diagnostic button that helps you check the downstream circuit immediately without sending a fault input signal to the relays
- Experience simplified product selection, unprecedented accuracy, and diagnostic and superior security with NFC Timer Relay
- This Schneider Electric RE17L timing relay can be set between 0.1 seconds and 100 hr, has an output rating of 0.7 Aeres, is 17.5 milimeters wide and can be supplied with 24 to 240 Vac
- It also has 2 changeover contacts DPDT (double pole double throw)
RE17LAMW Standards
CE Certified|CSA Certified|cULus Listed|ECCN: EAR99|EC-EN 61000-6-1|EC-EN 61000-6-3|EN 61000-6-2|IEC 61812-1|EN 61000-6-4|GL|IEC 60068-2-27|IEC 60068-2-6|IEC 60529|IEC 61000-4-2|IEC 61000-4-3|IEC 61000-4-4|IEC 61000-4-4|3|IEC 61000-4-5|IEC 61000-4-5|3|IEC 61000-4-6|IEC 61000-4-11|IEC 61000-4-11|EN 55022|Green Premium|RoHS Compliant|PROP65: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.govSKU #2281672Part Number #RE17LAMWUNSPSC39121523UPC00785901103066
