Part Number # RE17LCBM
SKU # 2311631
RE17LCBM

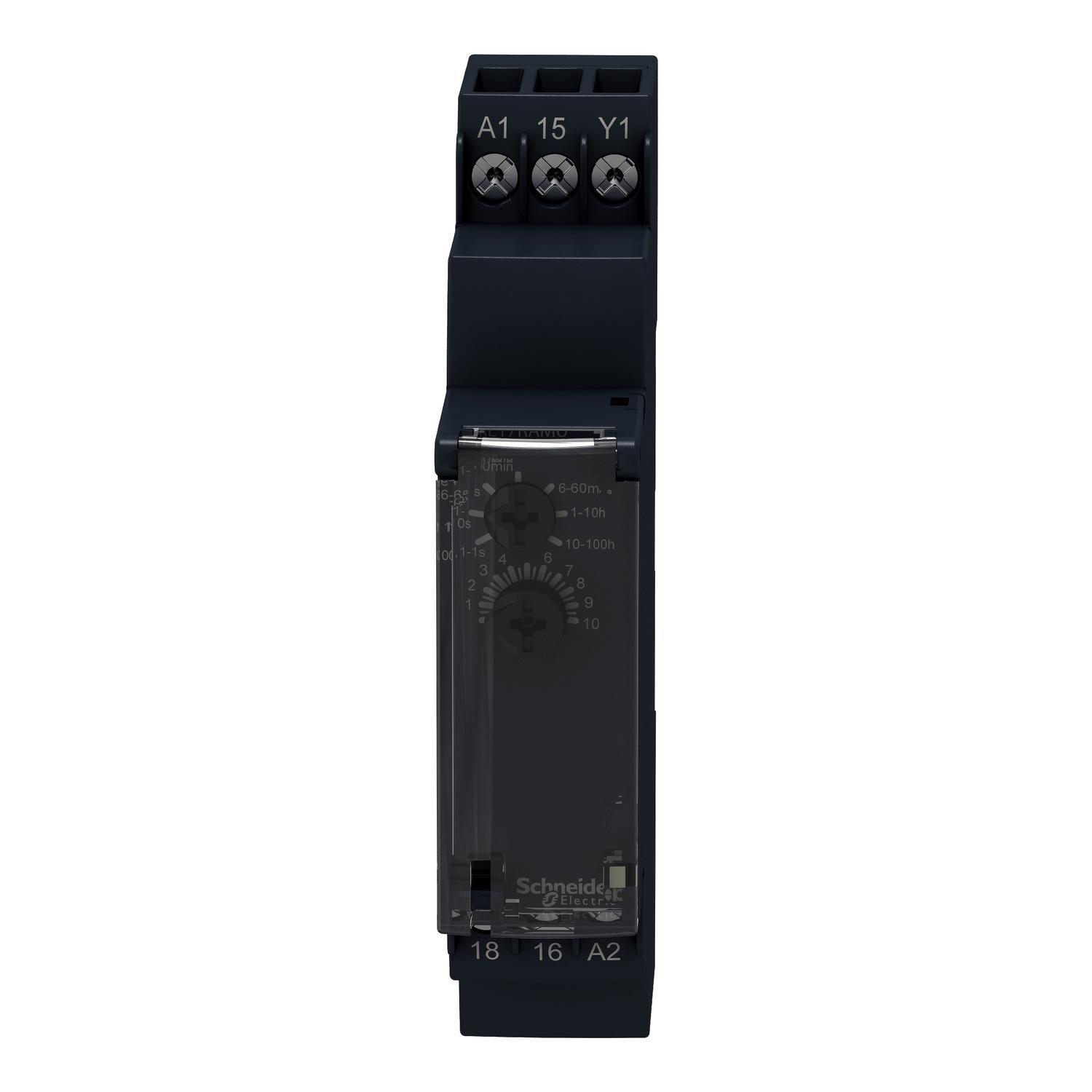

Schneider Electric RE17LCBM Zelio Modular Timing Relay
Part Number # RE17LCBM
SKU # 2311631
$57.30 / Each
Typical price:$61.70 / Each
Schneider Electric RE17LCBM Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | RE17LCBM |
| SKU #: | 2311631 |
| Amperage Rating: | 0.7 A |
| Contact Form: | 1 Form C SPDT |
| Dimensions: | 17.5 mm W x 90 mm H |
| Electrical Connections: | Screw |
| Enclosure Type: | IP20/IP40/IP50 |
| Operation Mode: | Off-Delay with Control Signal |
| Temperature Rating (Degrees F): | -20 to 60 deg F |
| Time Setting: | 0.1 sec to 100 hr |
| Country of origin: | ID |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39121523 |
| UPC: | 00785901147244 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$57.30 / Each
Typical price:$61.70 / Each
Quantity:
- Schneider Electric Square D Zelio Modular Timing Relay, Operation Mode: Off-Delay with Control Signal, 24 to 240 V AC, 0.7 A, 1 Pole, 1 Form C SPDT Contact Form, 0.1 sec to 100 hr Time Setting, LED Display, Screw Electrical Connections, IP20/IP40/IP50 Enclosure, -20 to 60 deg F, DIN Rail Mounting, 17.5 mm W x 90 mm H Dimensions
RE17LCBM Item Features
- Diagnostic button to check downstream circuit immediately, shorten the commission and troubleshooting time
- Wide range of time delay for adjustment - from 0.01 s to 999 hr
- Unprecedented accuracy, predictive maintenance, and superior security
- Flexible choice of screw or spring connection terminals for wiring
- Single function timer for simple integration in hard-wired logic schematics
- https://youtu.be/E6EmoxCSol0?si=pgsC4CGbLrNit1R8
RE17LCBM Standards
CE Certified|CSA Certified|cULus Listed|ECCN: EAR99|EC-EN 61000-6-1|EC-EN 61000-6-3|EN 61000-6-2|IEC 61812-1|EN 61000-6-4|GL|IEC 60068-2-27|IEC 60068-2-6|IEC 60529|IEC 61000-4-2|IEC 61000-4-3|IEC 61000-4-4|IEC 61000-4-4|3|IEC 61000-4-5|IEC 61000-4-5|3|IEC 61000-4-6|IEC 61000-4-11|IEC 61000-4-11|EN 55022|Green Premium|RoHS Compliant|PROP65: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.govSKU #2311631Part Number #RE17LCBMUNSPSC39121523UPC00785901147244
Image provided may only be a representation of final product and may include optional equipment
