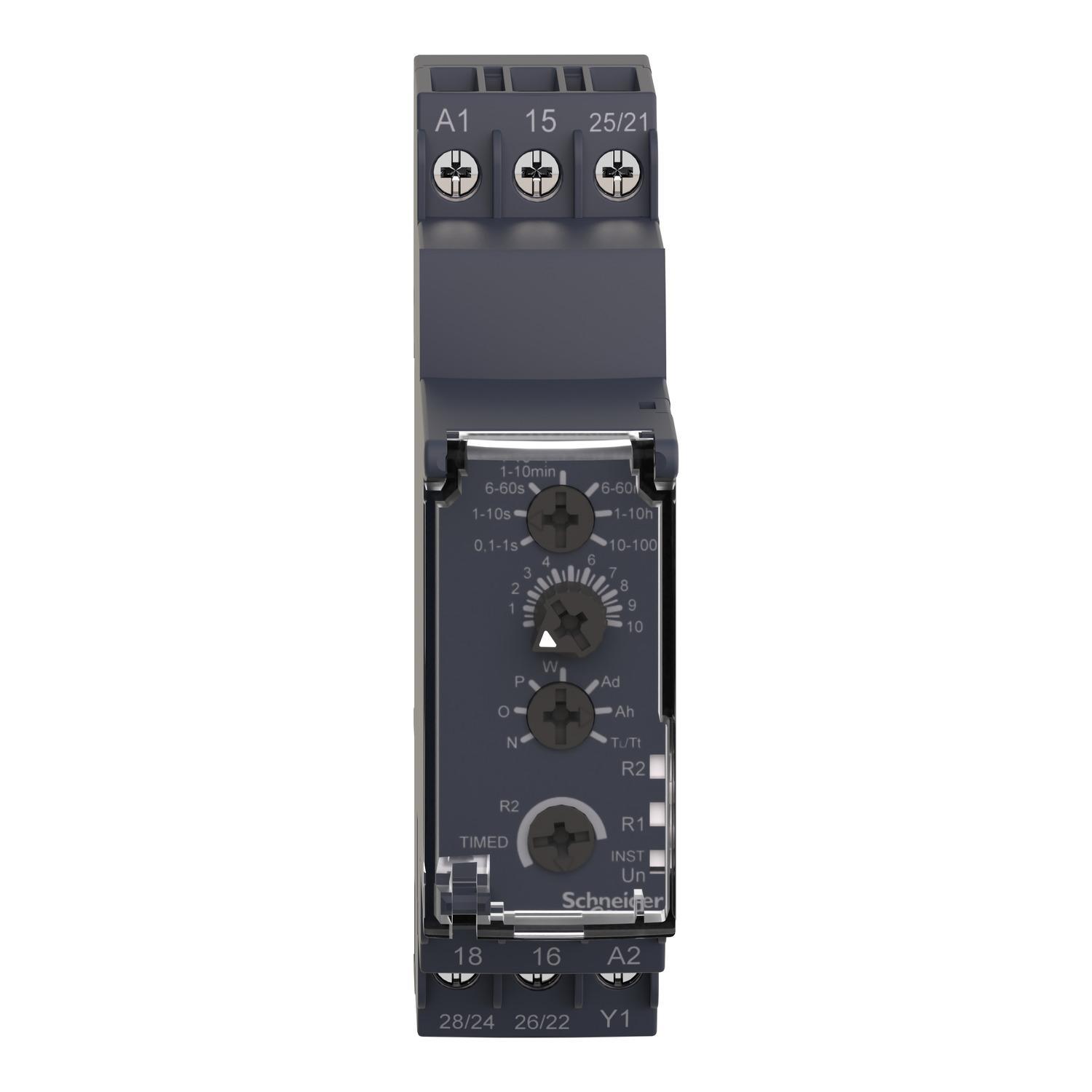

Schneider Electric RE22R2MXMU Zelio Modular Timing Relay
Image Disclaimers Message
Schneider Electric RE22R2MXMU Zelio Modular Timing Relay
Schneider Electric RE22R2MXMU Zelio Modular Timing Relay
Part #:RE22R2MXMU
SKU #: 2435230
$67.81/EA
Key Features
Part #:RE22R2MXMU
SKU #: 2435230
Brand: Schneider Electric
Amperage Rating: 8 A
Coil Voltage: 24 to 240/24 VAC/VDC
Contact Form: 2CO
Dimensions: 0.89 in W
Display Type: LED
$67.81/EA
- Reduced panel space - smaller units require less installed space
- Tamper-resistant - these units feature a sealable cover
- Increased functionality - timers with single functions and a choice of electromechanical or solid state functionality
- https://youtu.be/W6W-90ovcos
Specifications
Brand: Schneider Electric
Amperage Rating: 8 A
Coil Voltage: 24 to 240/24 VAC/VDC
Contact Form: 2CO
Dimensions: 0.89 in W
Display Type: LED
Electrical Connections: Screw Terminal
Enclosure Type: IP20/IP40/IP50
Operation Mode: Multi-Function
Series: RE22
Temperature Rating (Degrees F): -4 to 140 deg F
Time Setting: 0.1 to 1 s, 1 to 10 hr, 1 to 10 s, 6 to 60 min, 10 to 100 hr, 6 to 60 s, 1 to 10 min
Voltage Rating: 250 VAC
Country of origin: ID
Mounting type: 35 mm DIN Rail
Manufacturer Name: Schneider Electric
UNSPSC: 39121523
UPC: 00785901486008
Schneider Electric RE22R2MXMU Zelio Modular Timing Relay
TIMER24-240VAC/24VDC IN8A DPDT OUTMULTI-FUNC
Additional Description: SQD -RE22R2MXMU (N) Multifunction Timer Relay NON-CANCELABLE, NON-RETURNABLE
Catalog Description: multifunction relay, Harmony Timer Relays, 8A, 2CO, 0.1s…100h, bistable, 24V DC or 24...240V AC DC
Item FeaturesAutomatic Doors, Bottling, Car Washes, Complex and Special Machines, Control Equipment Panels, Educational Campuses, Food and Beverage, HVAC, Industrial Buildings, Manufacturing, Material Handling and Process Control Applications
Item Features
Item FeaturesIEC 61812-1|EN 61000-6-1|EN 61000-6-3|EN 61000-6-4|EN 61000-6-2|CSA Certified|CCC Certified|GL Certified|cULus Listed|EAC Certified|CE Certified|RCM Certified|RoHS Compliant|REACH Compliant|Green Premium Listed|PROP65: This product can expose you to chemicals including, Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
