Brand: Schneider Electric

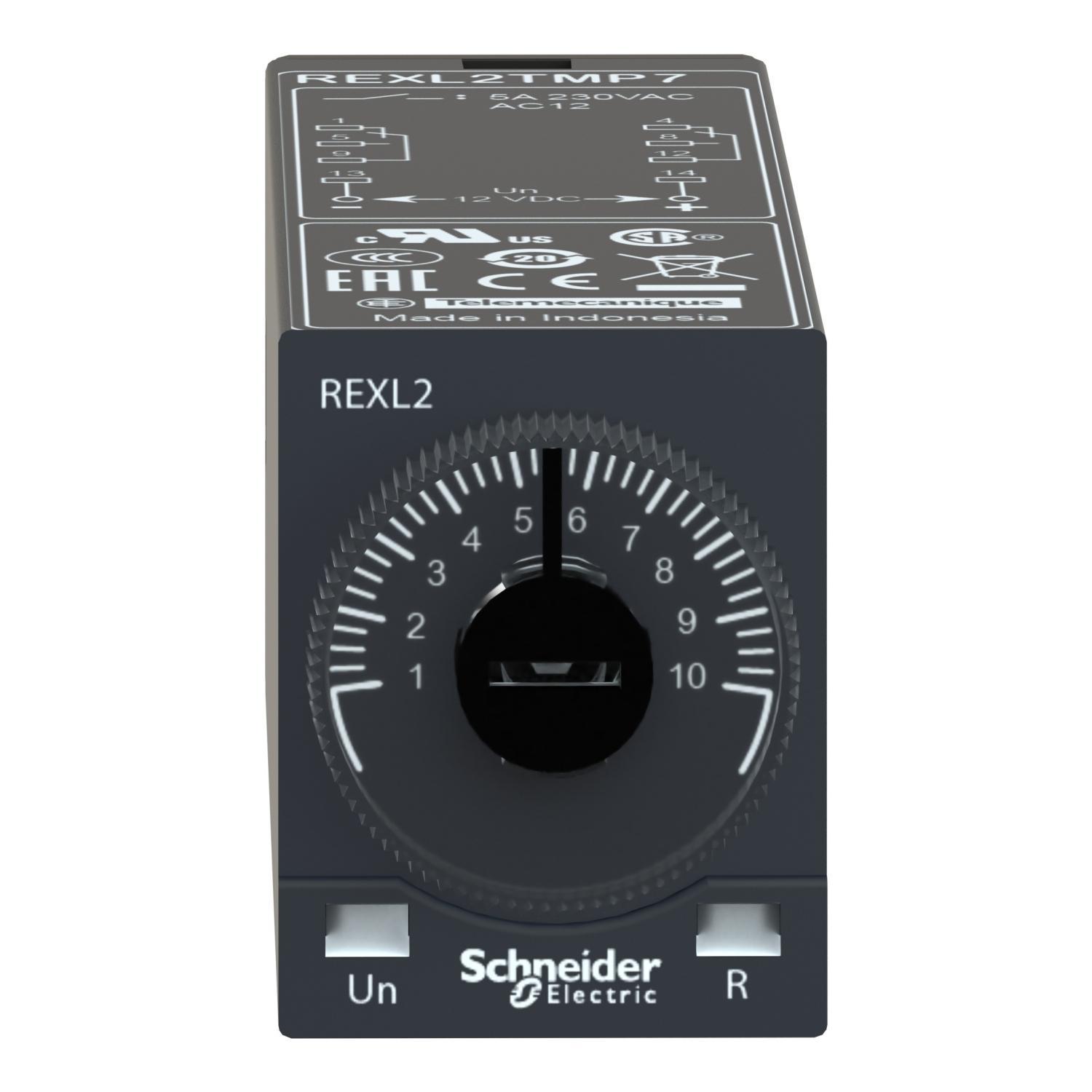

Schneider Electric REXL2TMP7 Zelio Timing Relay
Image Disclaimers Message
Brand: Schneider Electric
Schneider Electric REXL2TMP7 Zelio Timing Relay
Brand: Schneider Electric
Schneider Electric REXL2TMP7 Zelio Timing Relay
Part #:REXL2TMP7
SKU #: 2298023
$55.73/EA
Key Features
Part #:REXL2TMP7
SKU #: 2298023
Brand: Schneider Electric
Amperage Rating: 5, 5 A
Contact Form: 2CO SPDT, 2CO-SPDT
Enclosure Type: IP50
Operation Mode: ON-Delay, On Delay
Series: REXL
$55.73/EA
- It also has 2 changeover contacts DPDT (double pole double throw)
- Designed for socket plug-in quick and easy installation minimizes setup
- No more need to stock many different products to cover all your factory transparent cover to protect settings from being tampered with
- More piece of mind for your maintenance team single function timer for a simple integration in hard wired logic schematics
- Reduced panel space smaller units require less installed space
- Tamper-resistant, these units feature a sealable cover
- Increased functionality, timers with single functions and a choice of electromechanical or solid state functionality
- This Schneider Electric REXL timing relay can be set between 0.1 seconds and 100 hr, has an output rating of 5 Aeres, is 21 milimeters wide and can be supplied with 230 Vac
Specifications
Brand: Schneider Electric
Amperage Rating: 5, 5 A
Contact Form: 2CO SPDT, 2CO-SPDT
Enclosure Type: IP50
Operation Mode: ON-Delay, On Delay
Series: REXL
Temperature Rating (Degrees F): -4 to 140, -4 to 140 deg F
Time Setting: 0.1 s to 100 hr
Type: Type A Miniature Modular
Voltage Rating: 250, 250 VAC
Country of origin: ID
Mounting type: Plug-In
Manufacturer Name: Schneider Electric
UNSPSC: 39121523
UPC: 00785901760788
Schneider Electric REXL2TMP7 Zelio Timing Relay
Schneider Electric Square D Zelio Timing Relay, Type A Miniature Modular, Series: REXL, Operation Mode: On-Delay, 250 VAC, 5 A, 2CO-SPDT Contact Form, 0.1 s to 100 hr Time Setting, IP50 Enclosure, -4 to 140 deg F, Plug-In Mounting
Additional Description: SQD -REXL2TMP7 MINI PLUG-IN TIMER 2C/O 240VAC
Catalog Description: single function relay, Harmony Timer Relays, 5A, 2CO, 0.1s..100h, on delay, 230V AC
Item FeaturesFor refurbishment of old installations without using a plc status display with 2 LEDs visually inspect the status of you system without specialized tools, automatic doors, bottling, car washes, complex and special machines, control equipment panels, educational campuses, food and beverage, HVAC, industrial buildings, manufacturing, material handling and process control
Item Features
Item FeaturesRoHS Compliant|EN/IEC 61812-1|73/23/EEC|EN/IEC 60601-2|EN 50081-2|89/336/EEC|93/68/EEC|EN/IEC 60601-1|EN 61000-6-2|UL Listed|cUL Listed|cURus Listed|CE Certified|REACH Compliant|WEEE Compliant|Green Premium|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
