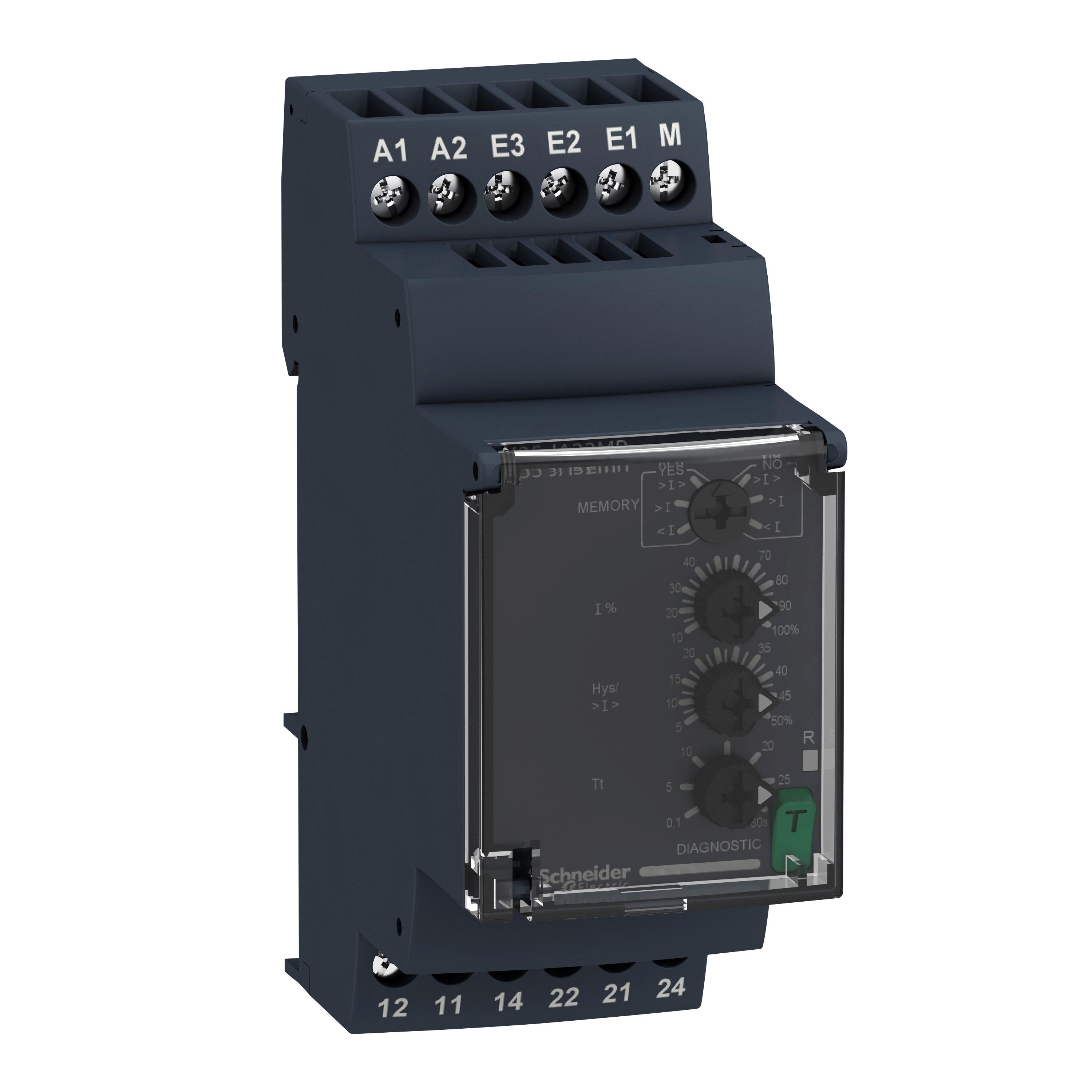

Schneider Electric RM35JA32MRSP01
Part Number # RM35JA32MRSP01
SKU # 2468665
RM35JA32MRSP01
Schneider Electric RM35JA32MRSP01
Part Number # RM35JA32MRSP01
SKU # 2468665
$1508.10 / 10Each
Typical price:$1624.10 / Each
Square D (Schneider Electric) RM35JA32MRSP01 Key Features
| Brand: | Square D (Schneider Electric) |
|---|---|
| Part Number # : | RM35JA32MRSP01 |
| SKU #: | 2468665 |
| Amperage Rating: | 8 A |
| Coil Voltage: | 24 to 240 V AC/DC |
| Contact Form: | 2CO 2 Form C |
| Dimensions: | 1.38 in W |
| Enclosure Type: | IP20/IP30/IP50 |
| Frequency Rating: | 50 to 60 Hz |
| Series: | RM35 |
| Temperature Rating (Degrees F): | -40 to 70 deg C |
| Terminal Type: | Screw |
| Type: | Modular Measurement |
| Country of origin: | ID |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122331 |
| UPC: | 00785901968573 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1508.10 / 10Each
Typical price:$1624.10 / Each
Quantity:
- Schneider Electric, RM35JA32MRSP01, Current Control Relay, Modular Measurement, Series: RM35, 8 A, 1.5 W Power, 50 to 60 Hz Frequency, 24 to 240 V AC/DC Coil, 2CO 2 Form C Contact Form, DIN Rail Mounting, Screw Terminal, IP20/IP30/IP50 Enclosure, -40 to 70 deg C, 1.38 in W Dimensions
RM35JA32MRSP01 Item Features
- One product reference covering 7 monitoring functions, phase loss, phase sequence, asymmetry, overvoltage, undervoltage, over frequency and under frequency
- Monitoring parameters can be set precisely to the desired value without the need for a screwdriver and complex calculations
- Time delay can be set precisely up to minutes, seconds or milliseconds
- Simulator available to check logic validity in settings
- Auto-configure to teach the product to propose settings with real-time 3-phase network connections
- Clone settings to multiple NFC Control Relays easily with a simple click
- Settings can be shared via multiple channels and loaded directly to another NFC Control Relay
- Front LEDs to indicate the exact fault status
- Real-time monitoring of a relay status
- Records a maximum of 20 faults through event logging
- Wide monitoring parameters (phase, current, voltage, liquid level, frequency, speed, temperature, and pump control) to meet your application needs
- True root mean square (RMS) measurement that minimizes the possibility of unexpected trips from highly polluted networks
- Diagnostic button that helps you check the downstream circuit immediately without sending a fault input signal to the relays
- Experience simplified product selection, unprecedented accuracy, predictive maintenance, and superior security with NFC Control Relay
- https://youtu.be/E6EmoxCSol0?si=pgsC4CGbLrNit1R8
RM35JA32MRSP01 Standards
CE|UL|CSA|IEC 60947-4-1|IEC 61000-4-3|IEC 61000-4-5|IEC 60947-4-1|IEC 60068-2-6|IEC 60068-2-27|IEC 60255-27|IEC 61000-4-2|IEC 60068-2-30|IEC 60947-1|EN/IEC 61000-6-2|IEC 60664-1|EN/IEC 61000-6-4|IEC 61000-4-4|EN/IEC 60255-1|EN/IEC 61000-6-3|IEC 60947-5-1|EN/IEC 61000-6-1|IP50|IP20|IP30SKU #2468665Part Number #RM35JA32MRSP01UNSPSC39122331UPC00785901968573
Image provided may only be a representation of final product and may include optional equipment
