Part Number # RM35UA11MW
SKU # 2219420
Image provided may only be a representation of
final product and may include optional equipment
RM35UA11MW

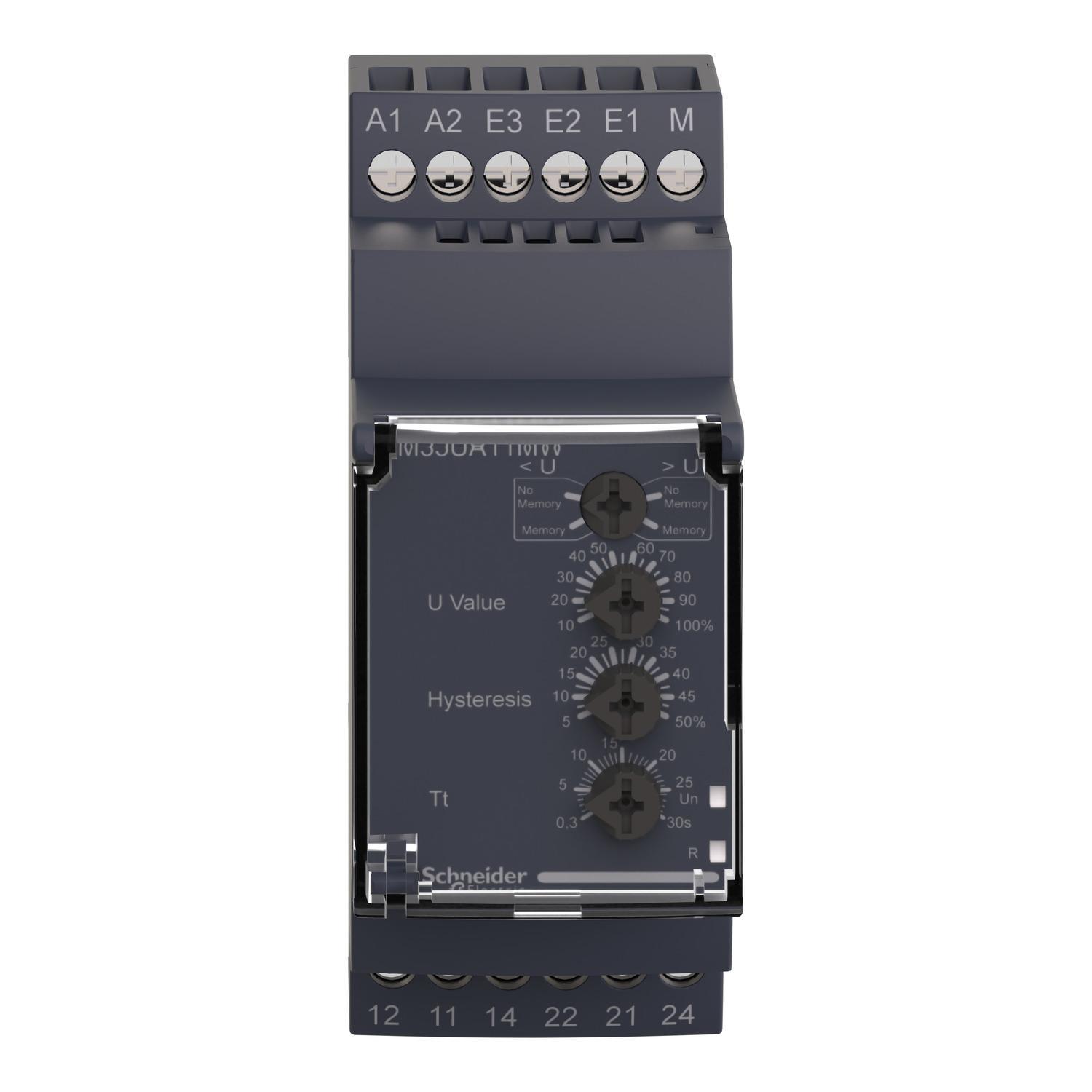

Schneider Electric RM35UA11MW Zelio Control Relay
Part Number # RM35UA11MW
SKU # 2219420
Schneider Electric RM35UA11MW Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | RM35UA11MW |
| SKU #: | 2219420 |
| Amperage Rating: | 5, 5 A |
| Coil Voltage: | 24 to 240, 24 to 240 V AC/DC, 24 to 240 VAC/VDC |
| Contact Form: | 2CO 2 Form C DPDT, 2CO DPDT, 2CO-DPDT |
| Dimensions: | 1.38 in W |
| Enclosure Type: | IP20/IP30 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 2 |
| Series: | RM35 |
| Temperature Rating (Degrees F): | -20 to 50, -20 to 50 deg C |
| Terminal Type: | Screw Clamp, Screw/Clamp |
| Type: | 1-Phase Modular Measurement Multi-Function Voltage |
| Country of origin: | FR |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122331 |
| UPC: | 00785901597230 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric RM35UA11MW Zelio Control Relay
Brand: Schneider Electric
Part Number: RM35UA11MW
Schneider Electric Square D Zelio Control Relay, 1-Phase Modular Measurement Multi-Function Voltage, Series: RM35, 5 A, 0 to 3.5 VA/0.6 W Power, 50/60 Hz Frequency, 24 to 240 VAC/VDC Coil, 2CO-DPDT Contact Form, 2 Pole, DIN Rail Mounting, Screw Clamp Terminal, IP20/IP30 Enclosure, -20 to 50 deg C, 1.38 in W Dimensions
Additional Description: SQD -RM35UA11MW OV OR UV RELAY 0 05..5V 24-240VAC/DC 2CO
Catalog Description: voltage control relay, Harmony Control Relays, 5A, 2CO, 0.05...5V AC DC , 24..240V AC DC
RM35UA11MW Application
Construction Cranes, Harbor Cranes, Motor Voltage, Current Overload, Construction Lifts, Passenger Lifts, Escalators, Motor Voltage, Current Overload, Liquid Level on Water Tank at Water and Waste Water Recycling Plant ApplicationsRM35UA11MW Item Features
- It has a measurement range of 0.05-5V
- It is mountable on DIN rail
RM35UA11MW Standards
RoHS Compliant|REACH Compliant|EEC/EMC/C-Tick/GL/EN/NF/GOST Certified|UL Listed|CSA Certified|CE Certified|IEC Certified|EN/IEC 60255-6|Green Premium|WEEE Compliant|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2219420Part Number #RM35UA11MWUNSPSC39122331UPC00785901597230
