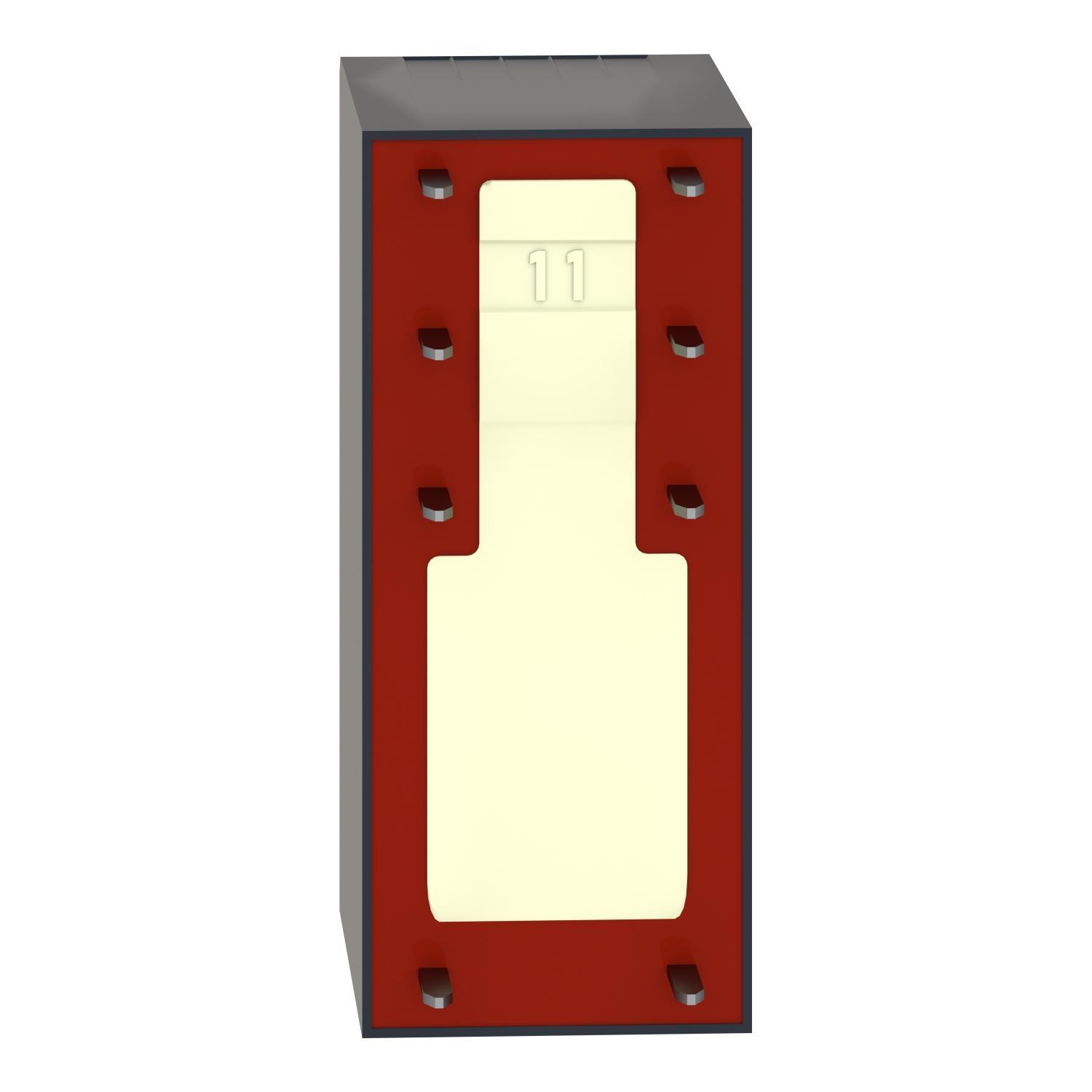

Schneider Electric RSB1A120M7 Zelio Interface Plug-In Relay
Part Number # RSB1A120M7
SKU # 2435329
$46.90 / 10Each
Schneider Electric RSB1A120M7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | RSB1A120M7 |
| SKU #: | 2435329 |
| Amperage Rating: | 12 A |
| Coil Voltage: | 220 V AC, 220 VAC |
| Contact Form: | 1CO 1 Form C SPDT, SPDT (1C/O) |
| Contact Rating: | 12 A at 250 V AC/12 A at 28 V DC, 12 A at 250 VAC/12 A at 28 VDC |
| Dimensions: | 12.5 mm W x 1.14 mm H |
| Enclosure Type: | IP40 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 1 |
| Series: | RSB Series |
| Temperature Rating (Degrees F): | -40 to 70 deg C AC/-40 to 85 deg C DC |
| Terminal Type: | Flat Pin |
| Country of origin: | AT |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122326 |
| UPC: | 03389110257267 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$46.90 / 10Each
Quantity:
- Schneider Electric Square D Zelio Interface Plug-In Relay, Series: RSB Series, 12 A, 0.75 VA Power, 50/60 Hz Frequency, 220 V AC Coil, 1CO 1 Form C SPDT Contact Form, 12 A at 250 VAC/12 A at 28 VDC Contact, 1 Pole, DIN Rail Mounting, Flat Pin Terminal, IP40 Enclosure, -40 to 70 deg C AC/-40 to 85 deg C DC, 12.5 mm W x 1.14 mm H Dimensions
RSB1A120M7 Application
General purposeRSB1A120M7 Item Features
- This Schneider Electric Zelio RSB interfacing plug-in relay has a control coil voltage of 220Vac and has 1 changeover contact single pole double throw with a rating of 12 amperes
- https://www.youtube.com/embed/W6W-90ovcos
RSB1A120M7 Standards
CE Certified|IEC 61810-1|CSA 215736 Class 3211 07|CSA C22.2 File No 14|cURus E173076 CNN NRNT2|EN/IEC 60068-2-6|EN/IEC 61810-1|EN/IEC 60068-2-27|EN/IEC 60529|EAC Standard|ECCN: EAR99|Green Premium|RoHS Compliant|REACH Compliant|UL 508|PROP65: This product can expose you to chemicals including: Nickel compounds and Di-isodecyl phthalate (DIDP) which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.govSKU #2435329Part Number #RSB1A120M7UNSPSC39122326UPC03389110257267
