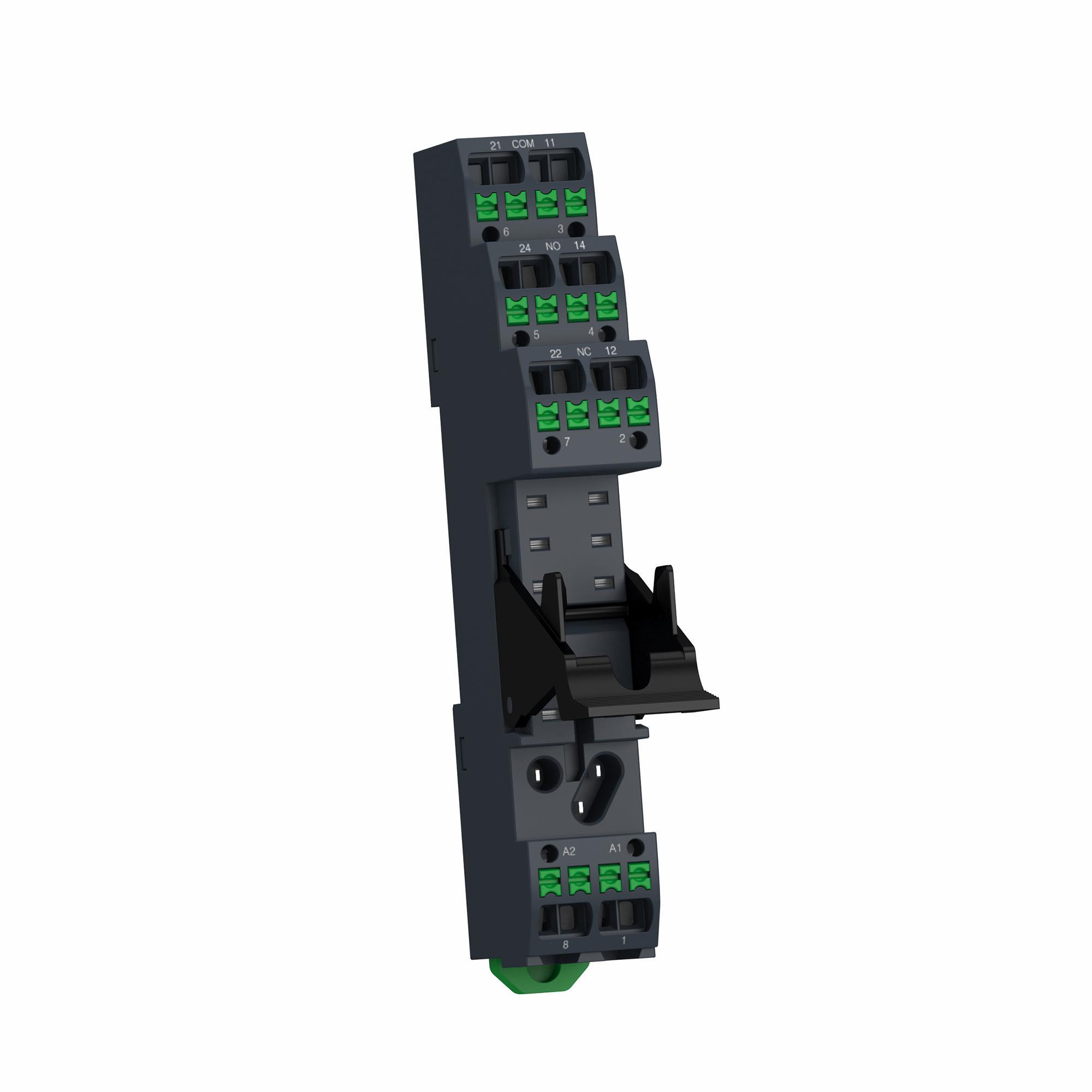

Schneider Electric RSZE08P RSB Series
Part Number # RSZE08P
SKU # 2414742
$11.39 / Each
Schneider Electric RSZE08P Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | RSZE08P |
| SKU #: | 2414742 |
| Amperage Rating: | 10 A |
| Dimensions: | 2.36 in H x 0.63 in W x 3.86 in L |
| Enclosure Type: | IP20 |
| Series: | RSB Series |
| Temperature Rating (Degrees F): | -40 to 185 deg F |
| Country of origin: | CN |
| Mounting type: | Push-In |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122326 |
| UPC: | 00785901985143 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$11.39 / Each
Quantity:
- Schneider Electric RSZE08P, RSB Series, 250 V, 10 A, -40 to 185 deg F, Push-In Mounting, IP20 Enclosure, 2.36 in H x 0.63 in W x 3.86 in L Dimensions
RSZE08P Application
For RSB2 relays Schneider Electric SQD RSZE08P Harmony, Push-in socket Harmony 10 A, spring clamp terminals, separate contact, 250 V AC RSZ push-in socket with clampRSZE08P Item Features
- Maximum of 4 Contacts
- Current rating from 3A up to 30A
- Wide choice of control voltage
- Several terminal types available: screw connector, screw clamp and spring/push-in terminal
- Flexible "add-on" accessories: protection module, timing module, maintaining clamp and marking legend
- Separate contact terminal arrangement
- 4 kV uimp rated impulse withstand voltage
- 250 V ui rated insulation voltage
- Clip-on 35 mm symmetrical DIN rail) fixing mode
- III overvoltage category
- 2500 V dielectric strength
- With toxic heavy metal free
RSZE08P Standards
IEC 61984|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|CSA|ULEAC|CE MarkedSKU #2414742Part Number #RSZE08PUNSPSC39122326UPC00785901985143
