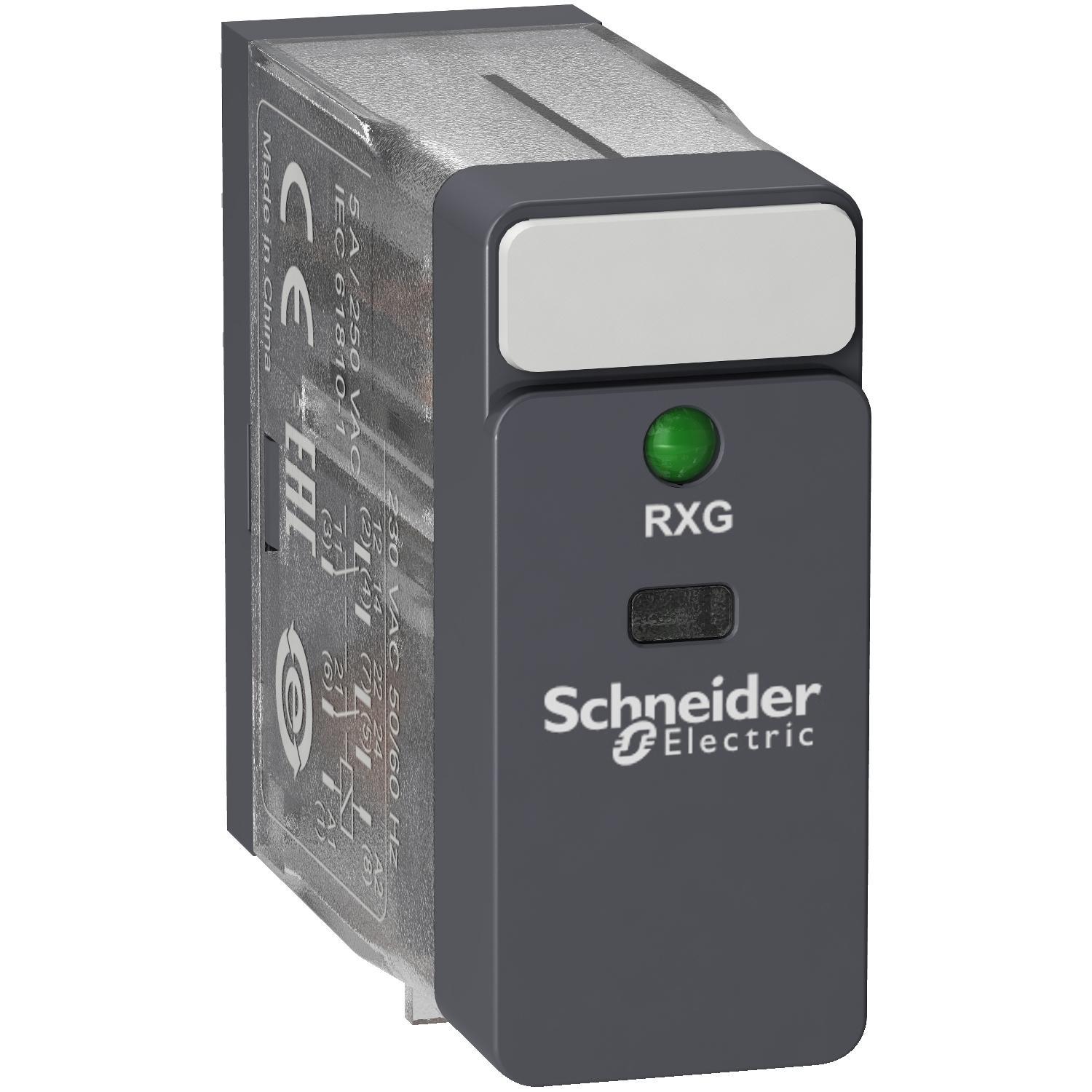

Schneider Electric RXG23F7 Zelio Interface Plug-In Relay
Part Number # RXG23F7
SKU # 2435265
RXG23F7
Schneider Electric RXG23F7 Zelio Interface Plug-In Relay
Part Number # RXG23F7
SKU # 2435265
Schneider Electric RXG23F7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | RXG23F7 |
| SKU #: | 2435265 |
| Amperage Rating: | 5 A |
| Coil Voltage: | 120 V AC |
| Contact Form: | 2CO 2 Form C DPDT |
| Contact Rating: | 10 A at 250 V AC/10 A at 30 V DC |
| Dimensions: | 13 mm W |
| Display Type: | LED |
| Enclosure Type: | IP40 |
| Number of Poles: | 2 |
| Series: | RXG Series |
| Temperature Rating (Degrees F): | -40 to 70 deg C |
| Terminal Type: | Screw |
| Country of origin: | US |
| Mounting type: | DIN Rail/Panel |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122326 |
| UPC: | 00785901972648 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric RXG23F7 Zelio Interface Plug-In Relay
Brand: Schneider Electric
Part Number: RXG23F7
Schneider Electric Square D Zelio Interface Plug-In Relay, Series: RXG Series, 5 A, 0.82 VA Power, 120 VAC Coil, 2CO 2 Form C DPDT Contact Form, 10 A at 250 V AC/10 A at 30 V DC Contact, 2 Pole, DIN Rail/Panel Mounting, Screw Terminal, LED Display, IP40 Enclosure, -40 to 70 deg C, 13 mm W Dimensions
Additional Description: SQD -RXG23F7 2CO 5A Relay-LTB+LED 120VAC
Catalog Description: interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, with LED, 120V AC
RXG23F7 Application
General purposeRXG23F7 Item Features
- Flexibility design for space saving with 16mm width
- Single step lockable testing function
- Easy to use
- High performance ensuring machine and system availability
- Mechanical durability of 10 million cycles
- https://www.youtube.com/embed/W6W-90ovcos
RXG23F7 Standards
20 gn in operation;100 gn not in operationSKU #2435265Part Number #RXG23F7UNSPSC39122326UPC00785901972648
Image provided may only be a representation of final product and may include optional equipment
