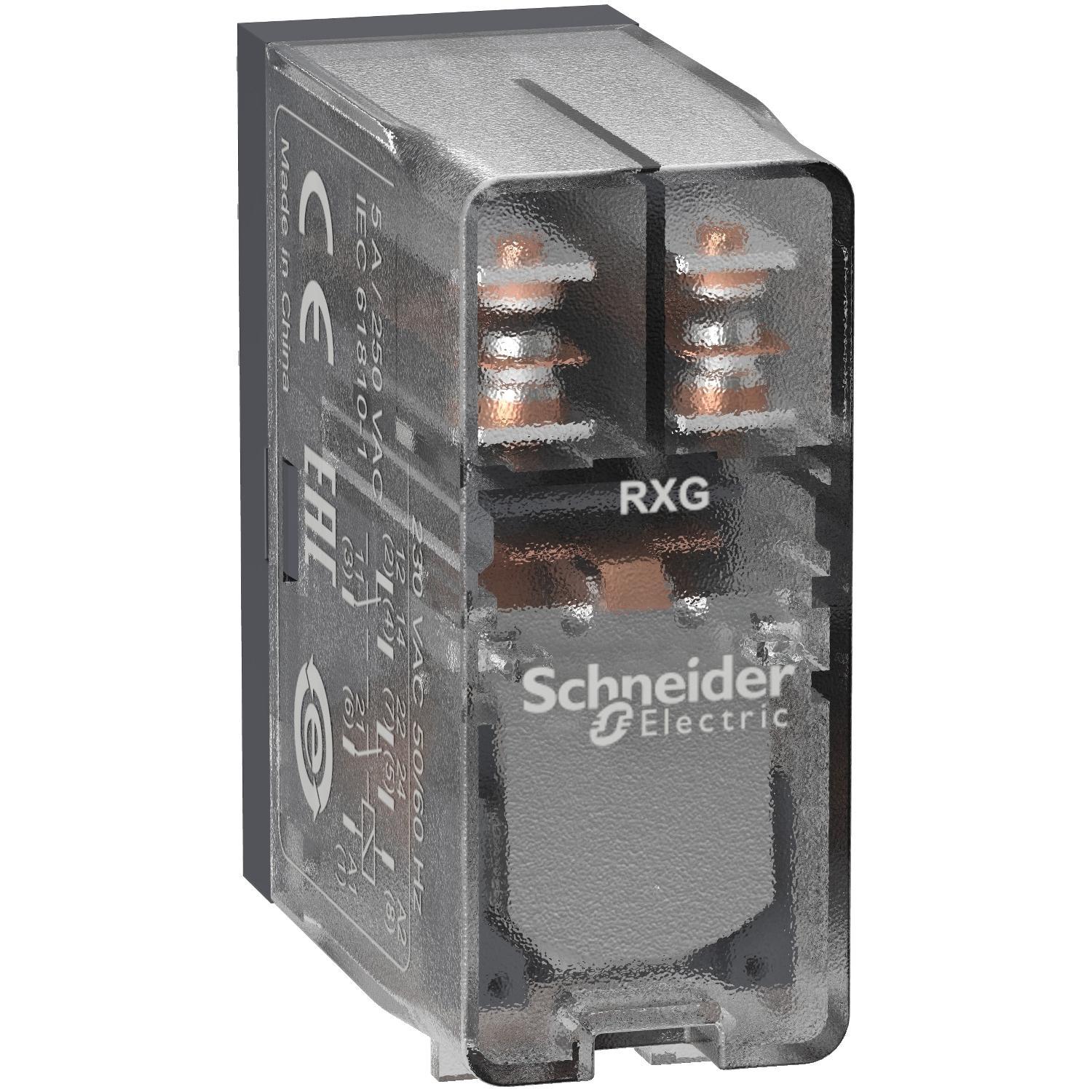

Schneider Electric RXG25P7 Zelio Interface Plug-In Relay
Part Number # RXG25P7
SKU # 2393482
Schneider Electric RXG25P7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | RXG25P7 |
| SKU #: | 2393482 |
| Amperage Rating: | 5 A |
| Coil Voltage: | 230 V AC, 230 VAC |
| Contact Form: | 2CO 2 Form C DPDT, 2CO/DPDT |
| Contact Rating: | 5 A at 250 V AC, 5 A at 30 V DC, 5 A at 250 VAC, 5 A at 30 VDC |
| Dimensions: | 13 mm W |
| Enclosure Type: | IP40 |
| Number of Poles: | 2 |
| Series: | RXG Series |
| Temperature Rating (Degrees F): | -40 to 70 deg C |
| Terminal Type: | Flat Pin |
| Type: | General Purpose |
| Country of origin: | CN, US |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122325 |
| UPC: | 00785901412182 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric RXG25P7 Zelio Interface Plug-In Relay
Brand: Schneider Electric
Part Number: RXG25P7
Schneider Electric Square D Zelio Interface Plug-In Relay, General Purpose, Series: RXG Series, 5 A, 230 VAC Coil, 2CO/DPDT Contact Form, 5 A at 250 VAC, 5 A at 30 VDC Contact, 2 Pole, DIN Rail Mounting, Flat Pin Terminal, IP40 Enclosure, -40 to 70 deg C, 13 mm W Dimensions
Additional Description: SQD -RXG25P7 (N) 2CO 5A Relay Clear 230VAC CLEAR NON-CANCELABLE, NON-RETURNABLE
Catalog Description: interface plug in relay, Harmony Electromechanical Relays, 5A, 2CO, clear cover, 230V AC
RXG25P7 Application
PLC ApplicationsRXG25P7 Item Features
- Standard hold down ejector clip integrated with socket
- Optional protection modules for protection against electrical transients
- Industry standard footprint for seamless compatibility with competitive sockets
- Without red LED and lockable test button
- https://www.youtube.com/embed/W6W-90ovcos
RXG25P7 Standards
20 gn in operation;100 gn not in operationSKU #2393482Part Number #RXG25P7UNSPSC39122325UPC00785901412182
