Brand: Schneider Electric

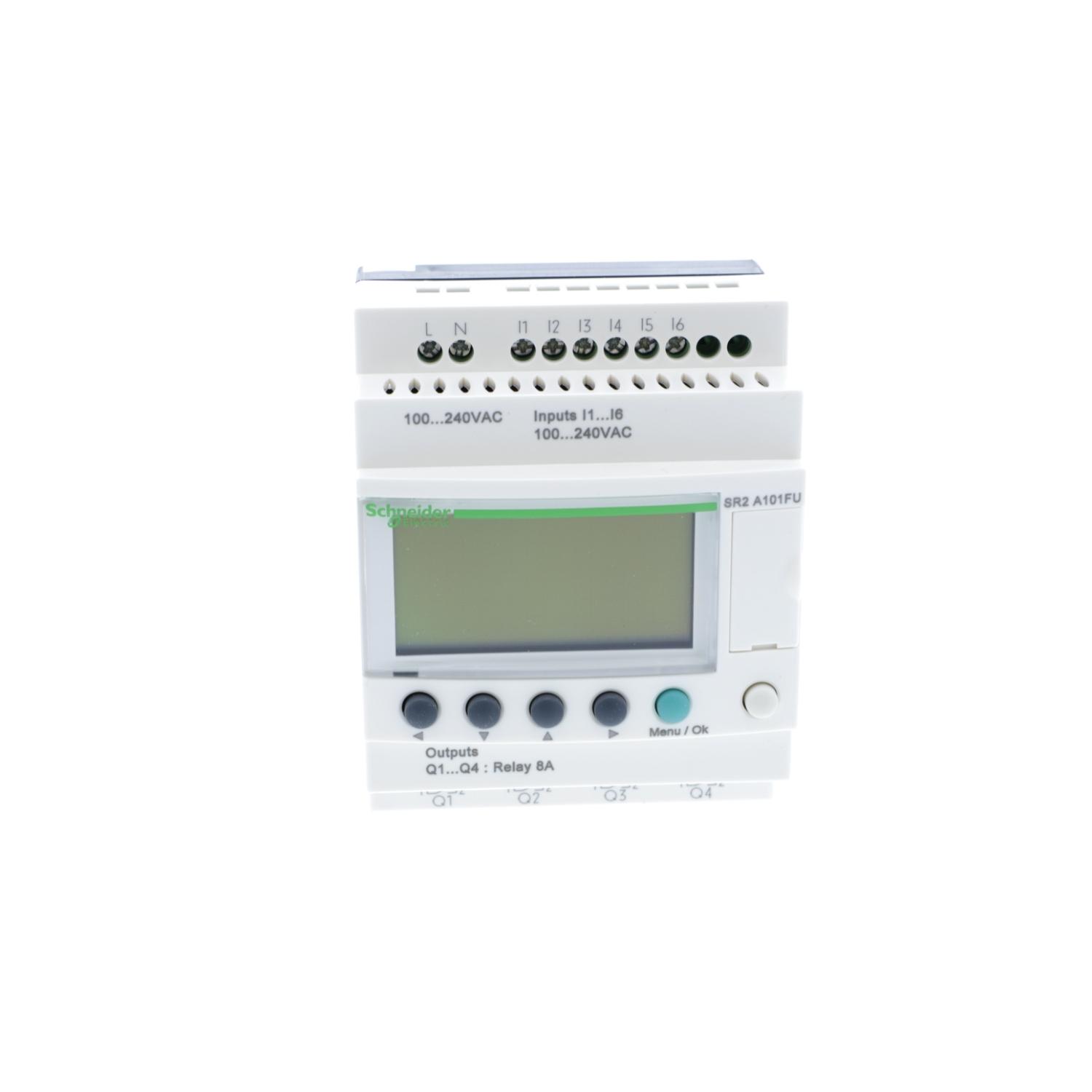

Schneider Electric SR2A101FU Zelio Logic 2 Smart Relay
Image Disclaimers Message
Brand: Schneider Electric
Schneider Electric SR2A101FU Zelio Logic 2 Smart Relay
Brand: Schneider Electric
Schneider Electric SR2A101FU Zelio Logic 2 Smart Relay
Part #:SR2A101FU
SKU #: 2183072
$262.63/EA
Key Features
Part #:SR2A101FU
SKU #: 2183072
Brand: Schneider Electric
Amperage Rating: 30/80, 30/80 mA
Temperature Rating (Degrees F): -20 to 55, -20 to 55 deg C
Type: Compact
Country of origin: FR
Number of inputs: 6
$262.63/EA
- <=10 ms immunity to micro breaks
- 350 kOhm input impedance
- 10000000 cycles mechanical durability
- Check program memory on each power up
- 2000 m operating altitude
- 100 to 240 VAC discrete input
- 7 VA without extension power consumption
- 50/60 Hz supply frequency
- IP20 (terminal block) conforming to IEC 60529, IP40 (front panel) conforming to IEC 60529 deg of protection
- 6 sec/month at 25 deg C, 12 min/year at 0 to 55 deg C clock drift
- 8 A for all 4 outputs output thermal current
- 6 to 90 ms cycle time
- -40 to 70 deg C ambient air temperature for storage
- 10 years at 25 deg C backup time
- 1780 V isolation voltage
- 24 to 250 VAC, 5 to 30 VDC output voltage limits
- 0.5 Nm tightening torque
- https://www.youtube.com/embed/cXvihg39Ygo
Specifications
Brand: Schneider Electric
Amperage Rating: 30/80, 30/80 mA
Temperature Rating (Degrees F): -20 to 55, -20 to 55 deg C
Type: Compact
Country of origin: FR
Number of inputs: 6
Number of outputs: 4
Supply voltage: 100 to 240 VAC, 120 to 240
Manufacturer Name: YAGEO Corporation
UNSPSC: 39122331
UPC: 00785901422488
Schneider Electric SR2A101FU Zelio Logic 2 Smart Relay
Telemecanique Square D Zelio Logic 2 Smart Relay, Compact, 100 to 240 VAC Supply, 30/80 mA, 6 Inputs, 4 Outputs, -20 to 55 deg C
Additional Description: SQD -SR2A101FU SR 10 I/O REL. 100-240VAC DISPL W/O CLK W/DISPLAY W/OUT C
Catalog Description: Compact smart relay, Zelio Logic, 10 I/O, 100...240 V AC, no clock, display
Item Features
Item FeaturesRoHS Compliant|CSA Certified|C-Tick Certified|GL Certified|GOST Certified|UL Listed|IEC 60529|PROP65: This product can expose you to chemicals including: Antimony oxide and Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
