Brand: Schneider Electric

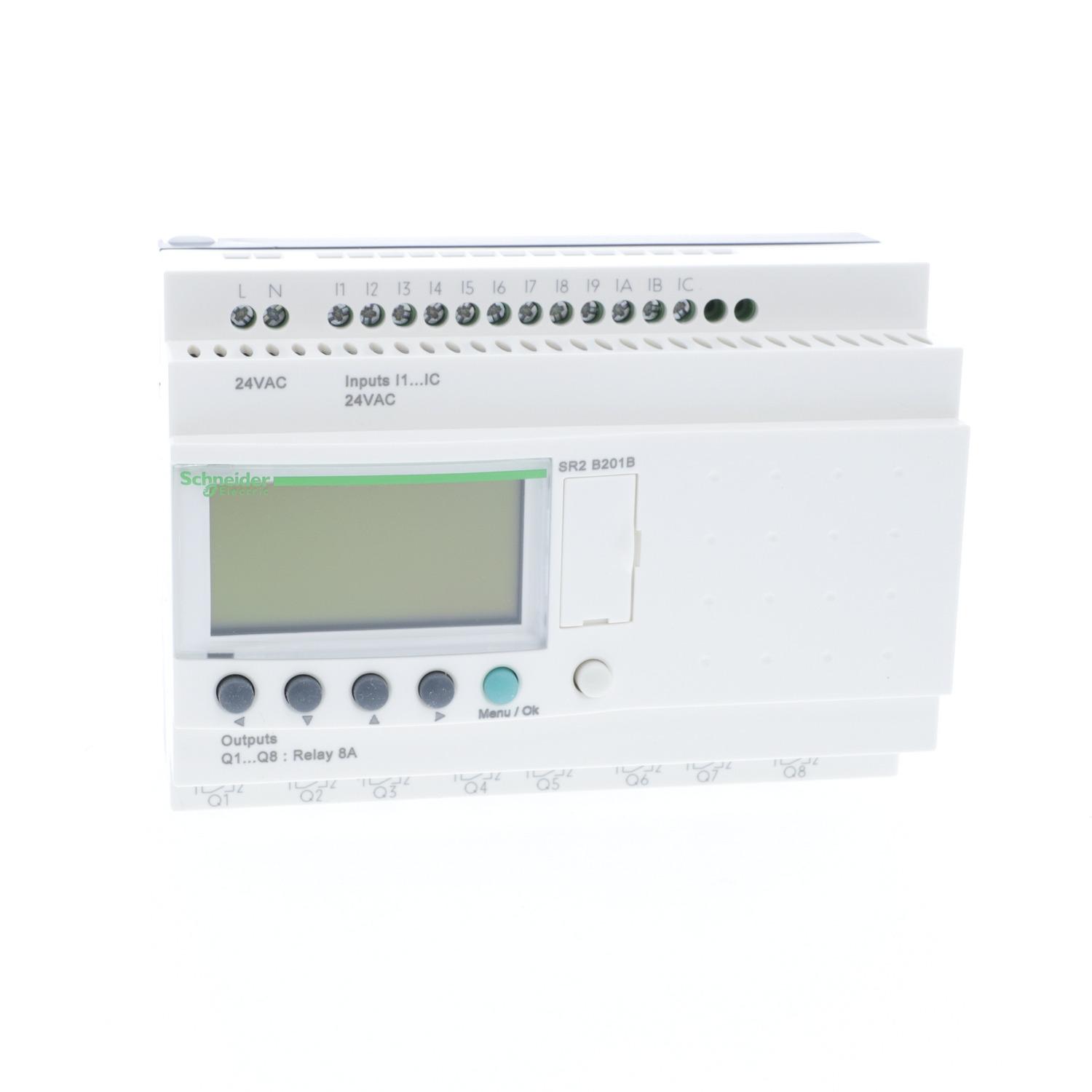

Schneider Electric SR2B201B Zelio Logic 2 Smart Relay
Part Number # SR2B201B
SKU # 2180588
$422.02 / Each
Schneider Electric SR2B201B Key Features
Brand: Schneider Electric
Part Number # SR2B201B
SKU #2180588
Amperage Rating: 233, 233 mA
Dimensions: 124.6 mm L x 107.6 mm W x 59.5 mm D
Display Type: Backlit LCD, LCD Backlit
Input Type: Discrete
Temperature Rating (Degrees F): -20 to 55, -20 to 55 deg C
Type: Compact
Country of origin: FR
Mounting type: DIN Rail
Number of inputs: 12
Number of outputs: 8
Output type: Relay
Supply voltage: 24, 24 VAC
Manufacturer Name: YAGEO Corporation
UNSPSC: 39122331
UPC: 00785901693826
$422.02 / Each
Schneider Electric SR2B201B Zelio Logic 2 Smart Relay
Brand: Schneider Electric
Part Number: SR2B201B
Telemecanique Square D Zelio Logic 2 Smart Relay, Compact, 24 VAC Supply, 233 mA, 12 Inputs, 8 Outputs, Discrete Input, Relay Output, LCD Backlit Display, DIN Rail Mounting, -20 to 55 deg C, 124.6 mm L x 107.6 mm W x 59.5 mm D
Additional Description: SQD -SR2B201B SR 20 I/O REL. 24VAC DISPL & CLK w/ Display
Catalog Description: compact smart relay, Zelio Logic SR2 SR3, 20 IO, 24V AC, clock, display
SR2B201B Item Features
- This Schneider electric Zelio logic SR2 compact smart relay/programmable controller uses a supply voltage of 24 V alternating current, has 20 inputs/outputs with screw clamp terminals, has an integrated clock and LCD display
- 12 discrete inputs, 8 relay outputs
- 233 mA without extension
SR2B201B Standards
RoHS Compliant|REACH Compliant|CSA Certified|UL Listed|C-Tick.1 Certified|GoST-R Certified|GL Certified|EN/IEC 60068-2-27 Ea|EN/IEC 60068-2-6 Fc|EN/IEC 61000-4-11|EN/IEC 61000-4-12|EN/IEC 61000-4-2 level 3|EN/IEC 61000-4-3|EN/IEC 61000-4-4 level 3|EN/IEC 61000-4-5|EN/IEC 61000-4-6 level 3|Green Premium|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2180588Part Number #SR2B201BUNSPSC39122331UPC00785901693826
