Part Number # SSM1A16B7
SKU # 2435196
Image provided may only be a representation of
final product and may include optional equipment
SSM1A16B7

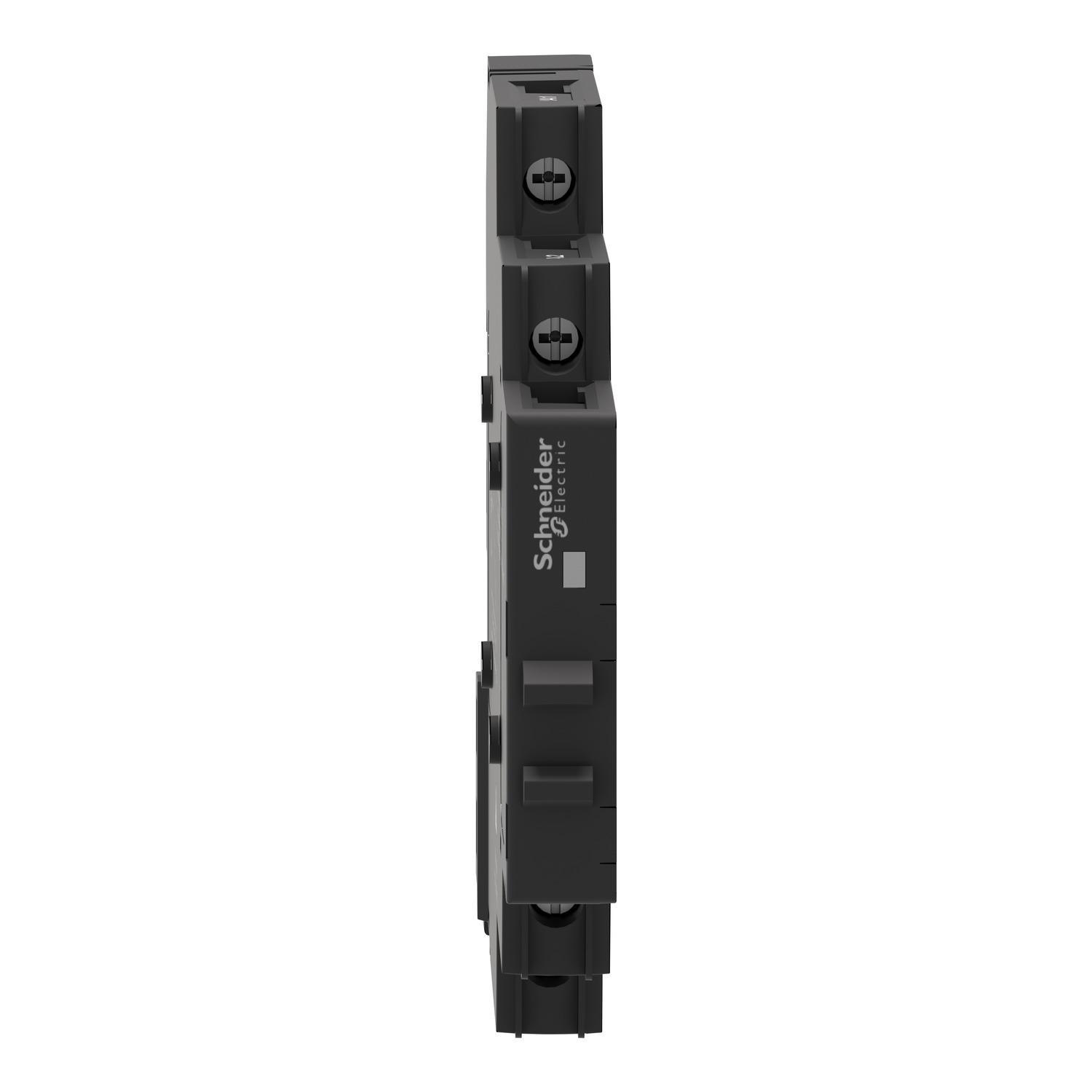

Schneider Electric SSM1A16B7 Zelio Solid State Relay
Part Number # SSM1A16B7
SKU # 2435196
Schneider Electric SSM1A16B7 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | SSM1A16B7 |
| SKU #: | 2435196 |
| Amperage Rating: | 6 A |
| Coil Voltage: | 18 to 36 V AC, 18 to 36 VAC |
| Contact Form: | 1NO 1 Form A SPST, 1NO-SPST |
| Dimensions: | 11 mm W x 83.7 mm D x 90.3 mm H |
| Display Type: | Green LED |
| Enclosure Type: | IP20 |
| Number of Poles: | 1 |
| Series: | SSM1 |
| Temperature Rating (Degrees F): | -30 to 80 deg C |
| Terminal Type: | Screw |
| Type: | 1-Channel 1-Phase Zero Voltage Switching |
| Country of origin: | MX |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122333 |
| UPC: | 00785901860938 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric SSM1A16B7 Zelio Solid State Relay
Brand: Schneider Electric
Part Number: SSM1A16B7
Schneider Electric Square D™ Zelio™ Solid State Relay, 1-Channel 1-Phase Zero Voltage Switching, Series: SSM1, 6 A, 18 to 36 VAC Coil, 1NO-SPST Contact Form, 1 Pole, DIN Rail Mounting, Screw Terminal, Green LED Display, IP20 Enclosure, -30 to 80 deg C, 11 mm W x 83.7 mm D x 90.3 mm H Dimensions
Additional Description: SQD -SSM1A16B7 1P SSR 6A@24-280VAC Zero,18-36VAC
Catalog Description: single phase relay, Harmony Solid State Modular Relays, 6A, DIN rail mount, zero voltage switching, input 18 to 36V AC, output 24 to 280V AC
SSM1A16B7 Application
For packaging, plastic molding, textile and heating furnace applicationsSSM1A16B7 Item Features
- Maintenance free - fully electronic, unlimited life span
- High switching frequency - allows precise and quick control
- Silent and reliable switching - no moving parts, noiseless switching
- Sustainablility in harsh environment - resistance to shock, vibration and contamination
SSM1A16B7 Standards
CE Certified|IEC 60950-1|CSA 257594|Class 321104|cURus E359576|CCN|NRNT2 NRNT8|IEC 61000|IEC 60950-1|IEC 62314|Green Premium|REACH Compliant|UL 94|PROP65: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.govSKU #2435196Part Number #SSM1A16B7UNSPSC39122333UPC00785901860938
