Brand: Schneider Electric

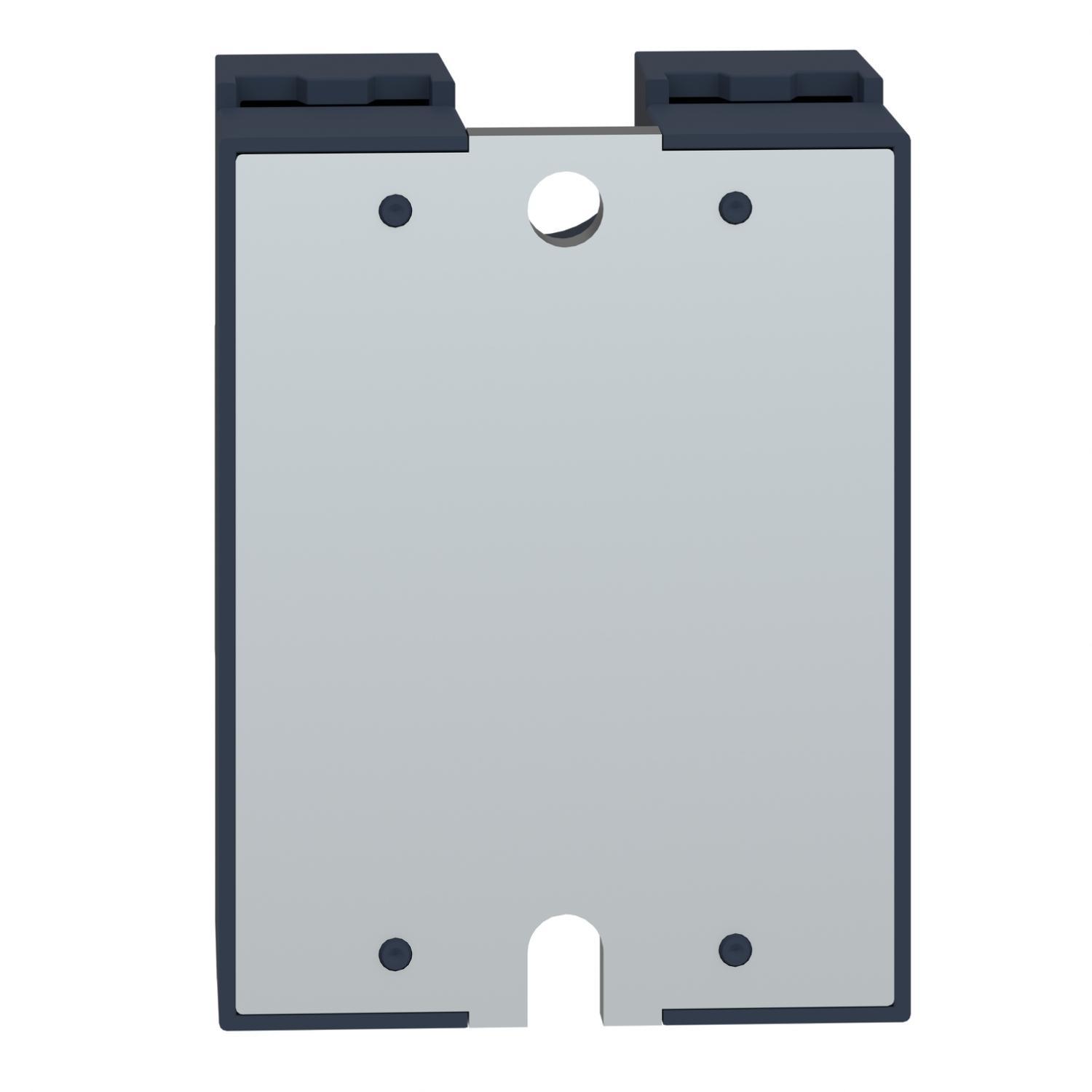

Schneider Electric SSP1A490BD Zelio Solid State Relay
Image Disclaimers Message
Brand: Schneider Electric
Schneider Electric SSP1A490BD Zelio Solid State Relay
Brand: Schneider Electric
Schneider Electric SSP1A490BD Zelio Solid State Relay
Part #:SSP1A490BD
SKU #: 2435201
$83.93/EA
Key Features
Part #:SSP1A490BD
SKU #: 2435201
Brand: Schneider Electric
Amperage Rating: 90 A
Coil Voltage: 4 to 32 VDC Control/48 to 660 VAC Load
Contact Form: 1NO
Dimensions: 1.75 in W x 2.32 in H x 1.35 in D
Enclosure Type: IP20
$83.93/EA
- Load output connection screw terminals
- Control input connection screw terminals
- Control input voltage LED indicator
- Indication area for product label or markings
- Smart diagnostic auxiliary input and alarm output
- Load output LED indicator
- Factory fit thermal pad that is glued on the rear of the product
- 1.5 hp at 120 VAC, 3 hp at 240 VAC, 7.5 hp at 480 VAC
- https://www.youtube.com/embed/TMEubNQHQSM
Specifications
Brand: Schneider Electric
Amperage Rating: 90 A
Coil Voltage: 4 to 32 VDC Control/48 to 660 VAC Load
Contact Form: 1NO
Dimensions: 1.75 in W x 2.32 in H x 1.35 in D
Enclosure Type: IP20
Power Rating: 1-1/2 hp, 3 hp, 7-1/2 hp
Series: SSP1
Temperature Rating (Degrees F): -40 to 80 deg C
Terminal Type: Screw
Type: 1-Phase Zero Voltage Switching SCR Output
Country of origin: MX
Mounting type: Panel
Manufacturer Name: Schneider Electric
UNSPSC: 39122333
UPC: 00785901847144
Item FeaturesInductive Load Applications
Item Features
Item FeaturescULus Recognized File No. E359576|CCN: NMFT2/NMFT8|RoHS Compliant|EAC Certified|CE Certified|CSA C22.2 File No. 14-13/257594 Class 3211-04|EN/IEC 62314|EN/IEC 60950-1|UL 508|Green Premium Listed|REACH Compliant|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
