Brand: Schneider Electric

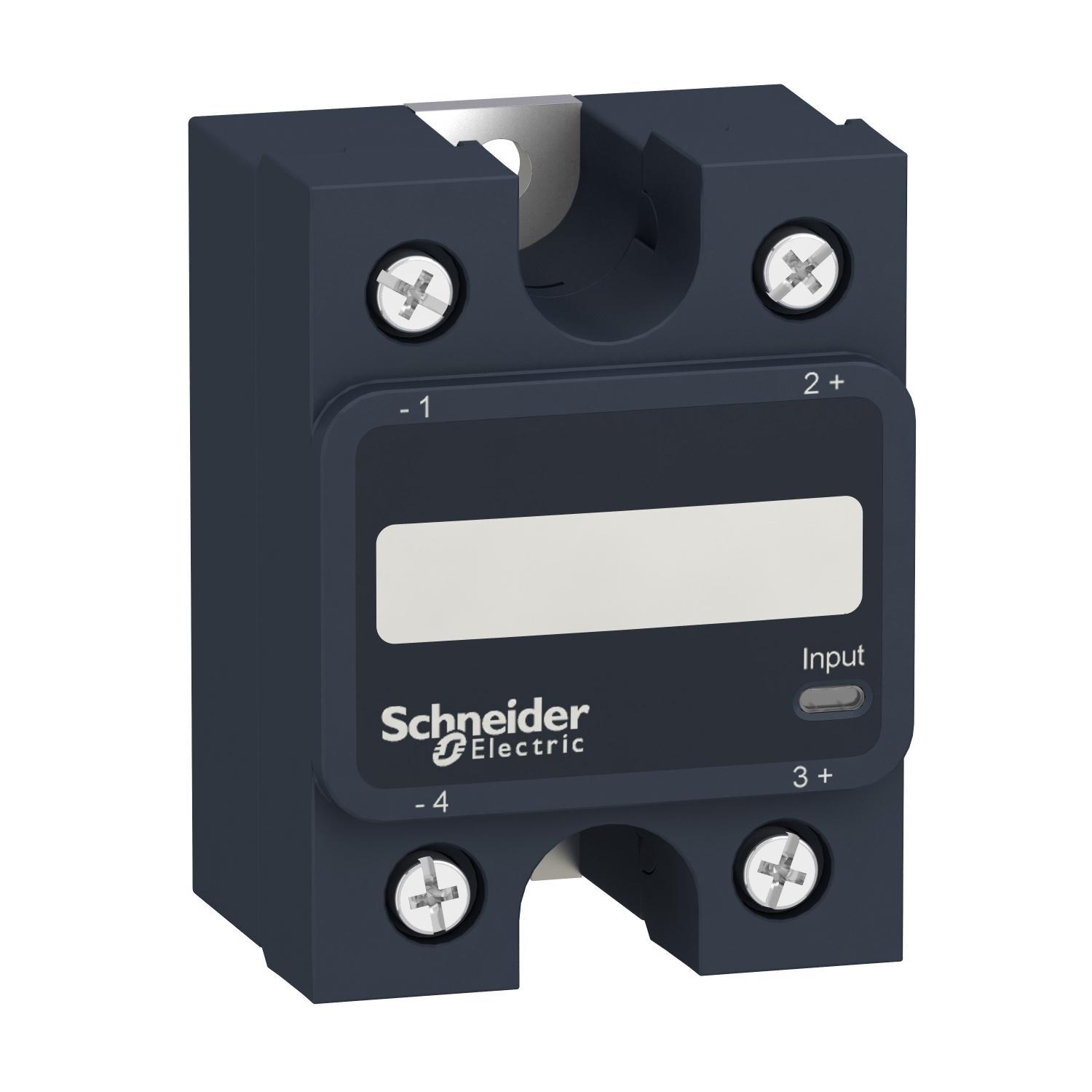

Schneider Electric SSP1A490M7T Zelio Solid State Relay
Image Disclaimers Message
Brand: Schneider Electric
Schneider Electric SSP1A490M7T Zelio Solid State Relay
Brand: Schneider Electric
Schneider Electric SSP1A490M7T Zelio Solid State Relay
Part #:SSP1A490M7T
SKU #: 2435188
$88.63/EA
Key Features
Part #:SSP1A490M7T
SKU #: 2435188
Brand: Schneider Electric
Amperage Rating: 90 A
Coil Voltage: 90 to 280 VAC Control/48 to 660 VAC Load
Contact Form: 1NO
Dimensions: 1.75 in W x 2.32 in H x 1.35 in D
Enclosure Type: IP20
$88.63/EA
- Control input connection screw terminals
- Indication area for product label or markings
- Smart diagnostic auxiliary input and alarm output
- https://www.youtube.com/embed/TMEubNQHQSM
Specifications
Brand: Schneider Electric
Amperage Rating: 90 A
Coil Voltage: 90 to 280 VAC Control/48 to 660 VAC Load
Contact Form: 1NO
Dimensions: 1.75 in W x 2.32 in H x 1.35 in D
Enclosure Type: IP20
Power Rating: 1-1/2 hp, 3 hp, 7-1/2 hp
Series: SSP1
Temperature Rating (Degrees F): -40 to 80 deg C
Terminal Type: Screw
Type: 1-Phase Zero Voltage Switching SCR Output
Country of origin: MX
Mounting type: Panel
Manufacturer Name: Schneider Electric
UNSPSC: 39122333
UPC: 00785901506423
Schneider Electric SSP1A490M7T Zelio Solid State Relay
,SSR 1P PANEL MOUNT 90A@660VAC OUT ZC 90-
Additional Description: SQD -SSP1A490M7T 1P SSR 90A@48-660VAC Zero,90-280VAC,TP
Catalog Description: single phase relay, Harmony Solid State Relays, 90A, panel mount, zero voltage switching, thermal pad, input 90 to 280V AC, output 48 to 660V AC
Item FeaturesInductive Load Applications
Item FeaturesThermal Pad
Item Features
Item FeaturescULus Recognized File No. E359576|CCN: NMFT2/NMFT8|RoHS Compliant|EAC Certified|CE Certified|CSA C22.2 File No. 14-13/257594 Class 3211-04|EN/IEC 62314|EN/IEC 60950-1|UL 508|Green Premium Listed|REACH Compliant|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
