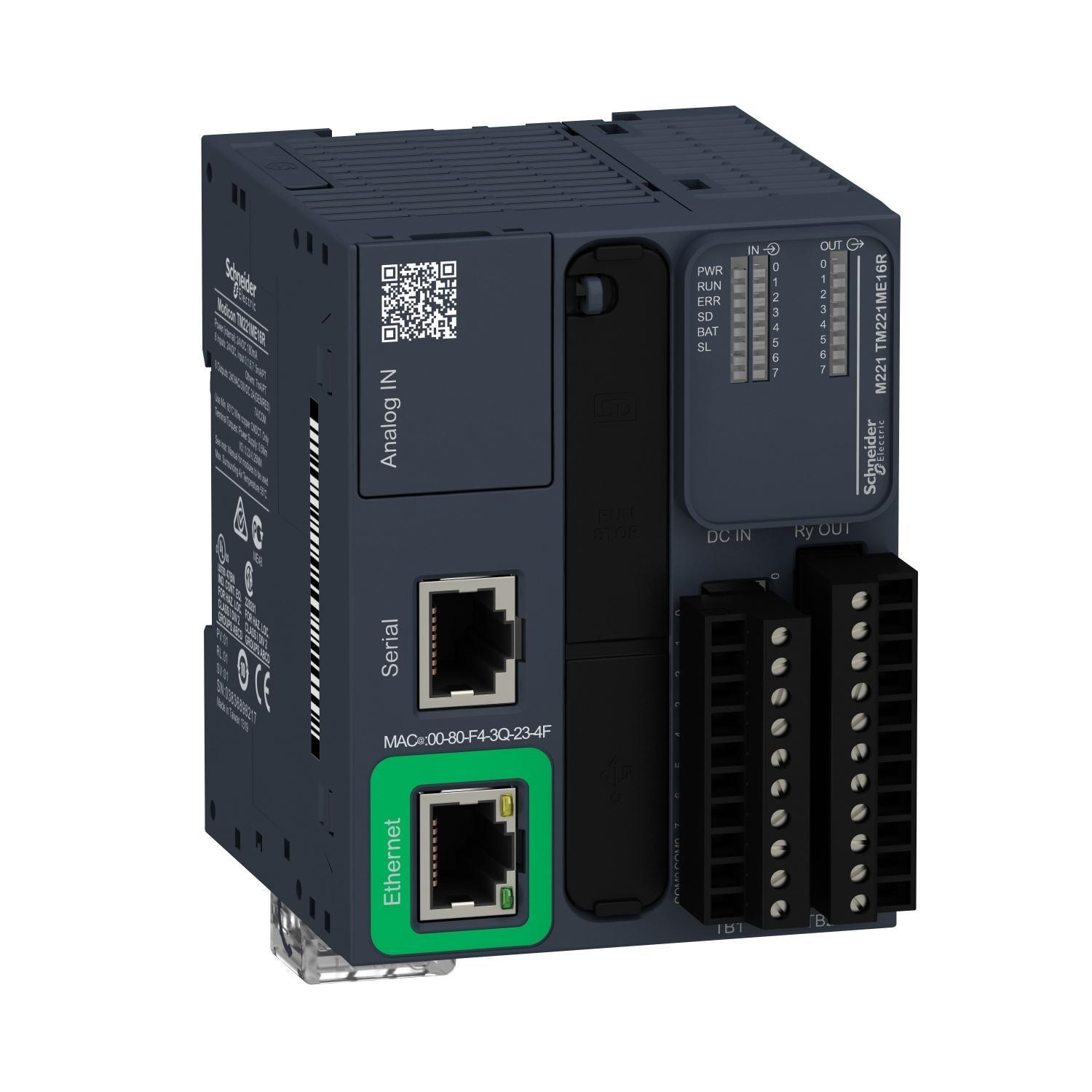

Schneider Electric TM221ME16R Modicon Logic Controller
Part Number # TM221ME16R
SKU # 2296919
TM221ME16R
Schneider Electric TM221ME16R Modicon Logic Controller
Part Number # TM221ME16R
SKU # 2296919
$428.80 / Each
Typical price:$445.95 / Each
Schneider Electric TM221ME16R Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | TM221ME16R |
| SKU #: | 2296919 |
| Dimensions: | 70 mm L x 70 mm W |
| Signal Range: | 5 to 125 V DC, 5 to 250 V AC Relay Normally Open |
| Communication: | DHCP Client, Modbus TCP Server, Modbus TCP Client and Modbus TCP Slave Device |
| Memory: | 256/640 kB |
| UNSPSC: | 39122326 |
| UPC: | 00785901956563 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$428.80 / Each
Typical price:$445.95 / Each
Quantity:
- Schneider Electric Modicon Square D Logic Controller, Modular, Series: M221, 24 V DC, 2 A, <=4.3/23.3 W Power, 8 Inputs, 8 Outputs, 5 to 125 V DC, 5 to 250 VAC Relay Normally Open Signal, DHCP Client, Modbus TCP Server, Modbus TCP Client and Modbus TCP Slave Device Communication, 3 Ports, Memory: 256/640 kB, Mini B USB 2.0 Connector Programming, 115.2 kbps Transfer Rate, Plate/Panel Mounting, -10 to 55/-10 to 35 deg C, 70 mm L x 70 mm W Dimensions
TM221ME16R Specifications
- 256 kB user application and data RAM with 10000 instructions, internal variables RAM
- IP20 with protective cover in place
- USB port: USB protocol SoMachine network
- Non-isolated serial link: Modbus protocol master/slave - RTU/ASCII or SoMachine™-Network : Ethernet protocol
- -10 to 55 deg C for horizontal installation, -10 to 35 deg C for vertical installation
- 5 to 125 VDC, 5 to 250 VAC relay normally open signal range
- <=23.3 W at 24 V with max number of I/O expansion module, <=4.3 W at 24 V without I/O expansion module power consumption
TM221ME16R Application
For simple machines which optimize the size of wall-mounted and floor-standing control system enclosures due to their compact dimensionsTM221ME16R Item Features
- SD card and USB port
- 2 analog inputs and a broad choice of I/Os
- Run/stop switch and cartridge extension
- Ethernet and serial line ports
- M221 controllers can connect to Modicon TM3 expansion modules for local, remote or distributed I/O configurations
TM221ME16R Standards
RoHS Compliant|REACH Compliant|ABS Certified|CE Certified|CSA Certified|cULus Listed|UL Listed|DNV-GL|EAC Certified|IACS E10|LR Certified|RCM Certified|EN/IEC 60664-1|EN/IEC 61131-2|EN/IEC 61010-2-201|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.govSKU #2296919Part Number #TM221ME16RUNSPSC39122326UPC00785901956563
Image provided may only be a representation of final product and may include optional equipment
