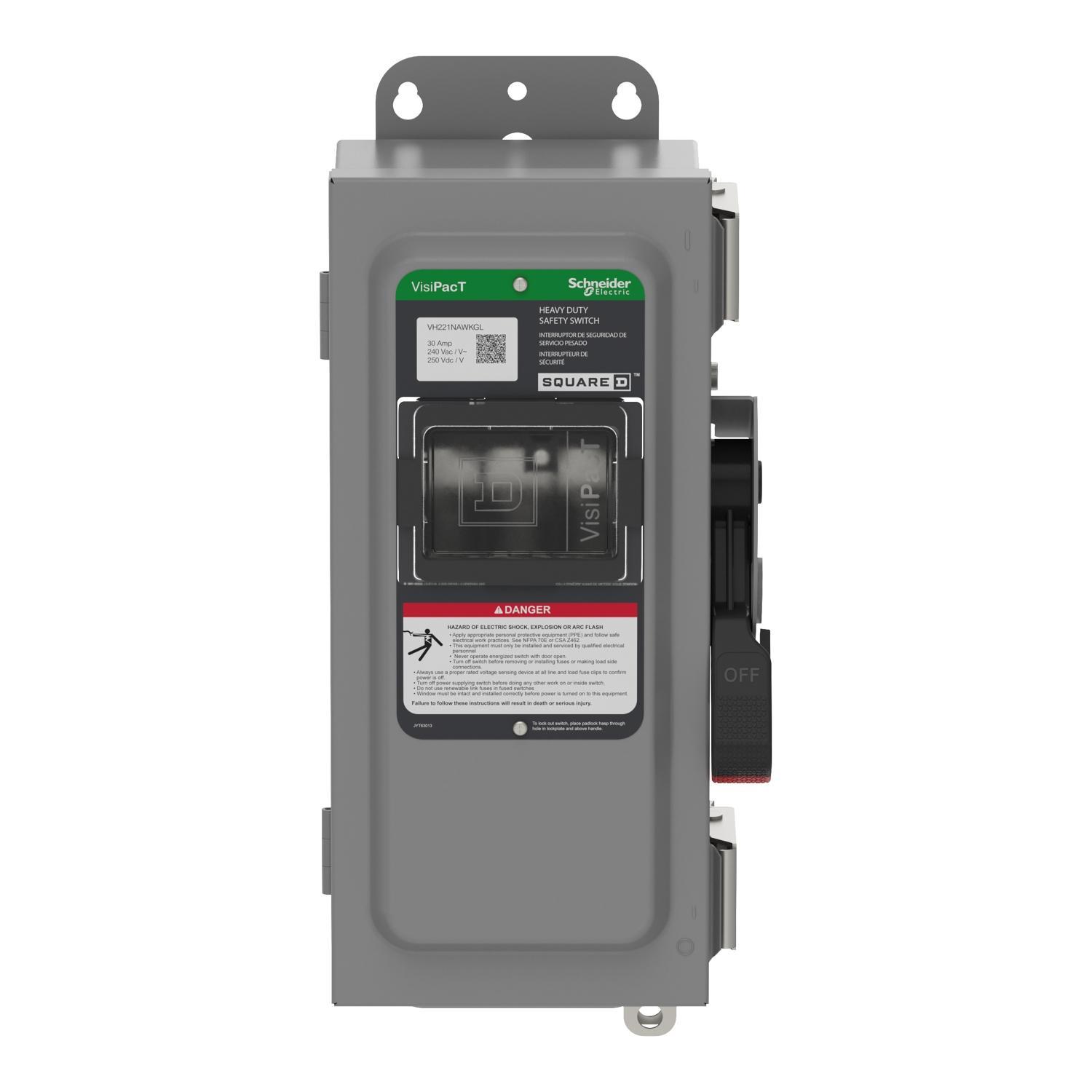

Schneider Electric VHU361NAWKGL Heavy Duty Non-Fusible Disconnect Safety Switch
Image Disclaimers Message
Schneider Electric VHU361NAWKGL Heavy Duty Non-Fusible Disconnect Safety Switch
Schneider Electric VHU361NAWKGL Heavy Duty Non-Fusible Disconnect Safety Switch
Part #:VHU361NAWKGL
SKU #: 2420278
$712.79/EA
Key Features
Part #:VHU361NAWKGL
SKU #: 2420278
Brand: Schneider Electric
Amperage Rating: 30 A
Contact Form: Single Throw
Dimensions: 5.25 in H x 6.48 in W x 5.242 in D
Enclosure Type: NEMA 12
Finish: Galvannealed
$712.79/EA
- Fusible and Non-Fusible options
- Rated Horsepower, 500hp maximum
- Short Circuit Current Rating, Up to 200 kA utilizing appropriate Class R and Class R Fuse kits, or Class L, or Class J fuses
Specifications
Brand: Schneider Electric
Amperage Rating: 30 A
Contact Form: Single Throw
Dimensions: 5.25 in H x 6.48 in W x 5.242 in D
Enclosure Type: NEMA 12
Finish: Galvannealed
Frequency Rating: 50 to 60 Hz
Horsepower: 5, 7.5, 10, 15, 20, 30 hp
Number of Poles: 3
Number of Wires: 4
Phase: 1, 3 pH
Terminal Type: Lug
Type: Heavy Duty Non-Fusible Disconnect
Voltage Rating: 600 VAC, 600 VDC, 600 VAC/600 VDC
Country of origin: US
Material: Steel
Mounting type: Surface
Manufacturer Name: Schneider Electric
UNSPSC: 39122205
UPC: 03606485894430
Schneider Electric VHU361NAWKGL Heavy Duty Non-Fusible Disconnect Safety Switch
Additional Description: SQD -VHU361NAWKGL HDSS TYPE12 600V 30 AMP 3 POLE unFuse
Catalog Description: Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 12, 600V, 30A, 3 pole, neutral installed, ground lugs
Item FeaturesFor Heavy application
Item Features
Item FeaturesUL Listed File E2875
