VHU363DSGL

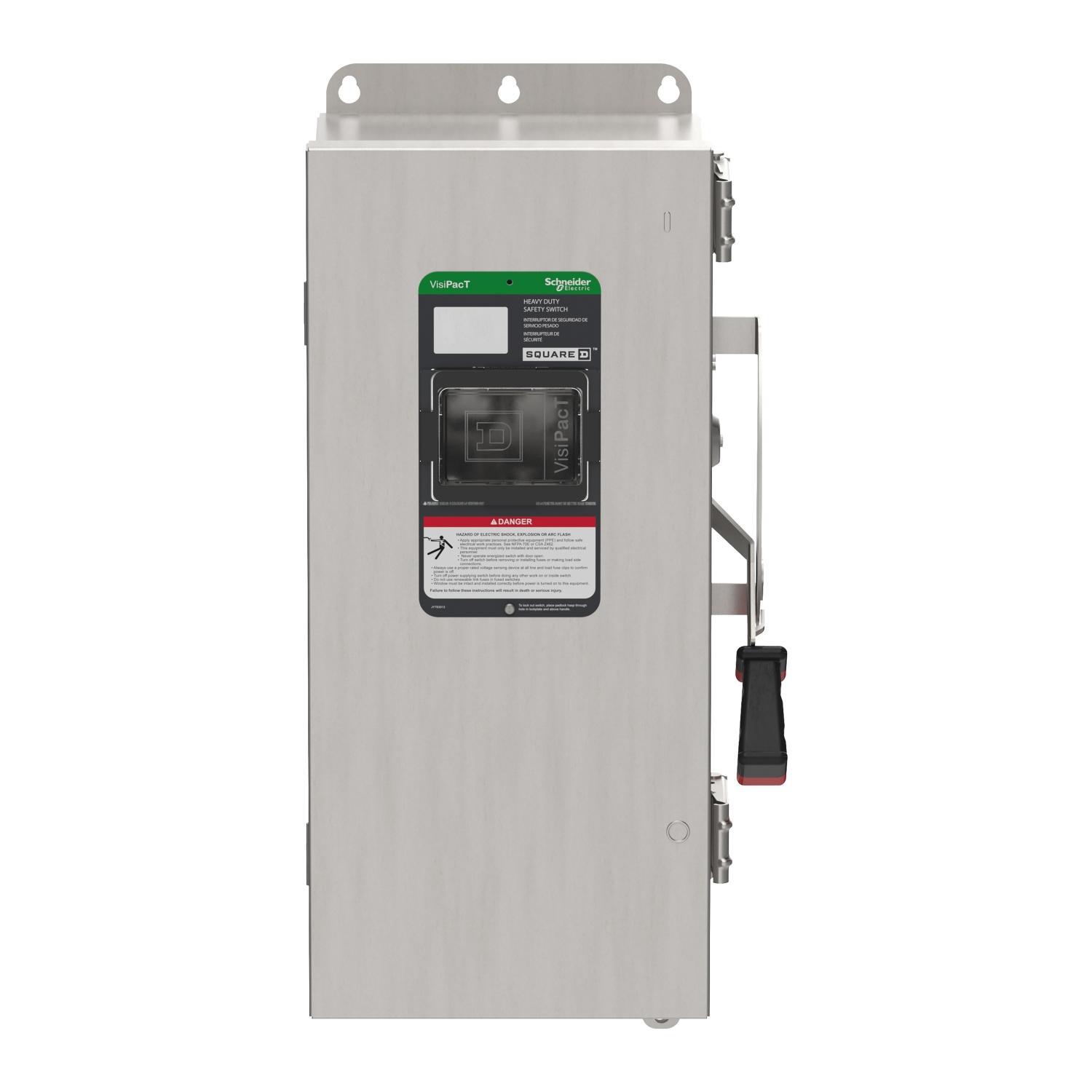

Schneider Electric VHU363DSGL Heavy Duty Non-Fusible Disconnect Safety Switch
Part Number # VHU363DSGL
SKU # 2419557
$3466.04 / Each
Typical price:$5102.00 / Each
Schneider Electric VHU363DSGL Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | VHU363DSGL |
| SKU #: | 2419557 |
| Amperage Rating: | 100 A |
| Contact Form: | Single Throw |
| Dimensions: | 7.50 in H x 9.336 in W x 7.28 in D |
| Enclosure Type: | NEMA 4X |
| Frequency Rating: | 50 to 60 Hz |
| Horsepower: | 20, 40, 50, 75,100 hp |
| Number of Poles: | 3 |
| Number of Wires: | 3 |
| Phase: | 1, 3, 1, 3 pH |
| Terminal Type: | Lug |
| Type: | Heavy Duty Non-Fusible Disconnect |
| Country of origin: | US |
| Material: | 304 Stainless Steel |
| Mounting type: | Surface |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122205 |
| UPC: | 03606485894829 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3466.04 / Each
Typical price:$5102.00 / Each
Quantity:
- Square D, VHU363DSGL, Safety Switch, Heavy Duty Non-Fusible Disconnect, 600 V AC, 600 V DC, 100 A, 20, 40, 50, 75,100 hp, 1, 3 pH, 50 to 60 Hz Frequency, 3 Pole, 3 Wires, NEMA 4X Enclosure, Surface Mounting, Lug Terminal, 7.50 in H x 9.336 in W x 7.28 in D Dimensions, 304 Stainless Steel
VHU363DSGL Application
For Heavy applicationVHU363DSGL Item Features
- Heavy duty switches isolate power in daily activities and provide an effective way to interrupt power in an emergency
- Designed to satisfy individual requirements for all customers
- Visipact safety switches come with a viewing window for quick visual verification of switch position
- Designed to have a mechanical endurance three times greater than NEMA standards
- QR code allow quick access to critical ratings and other useful product documentation
VHU363DSGL Standards
UL Listed File E2875SKU #2419557Part Number #VHU363DSGLUNSPSC39122205UPC03606485894829
