Brand: Schneider Electric

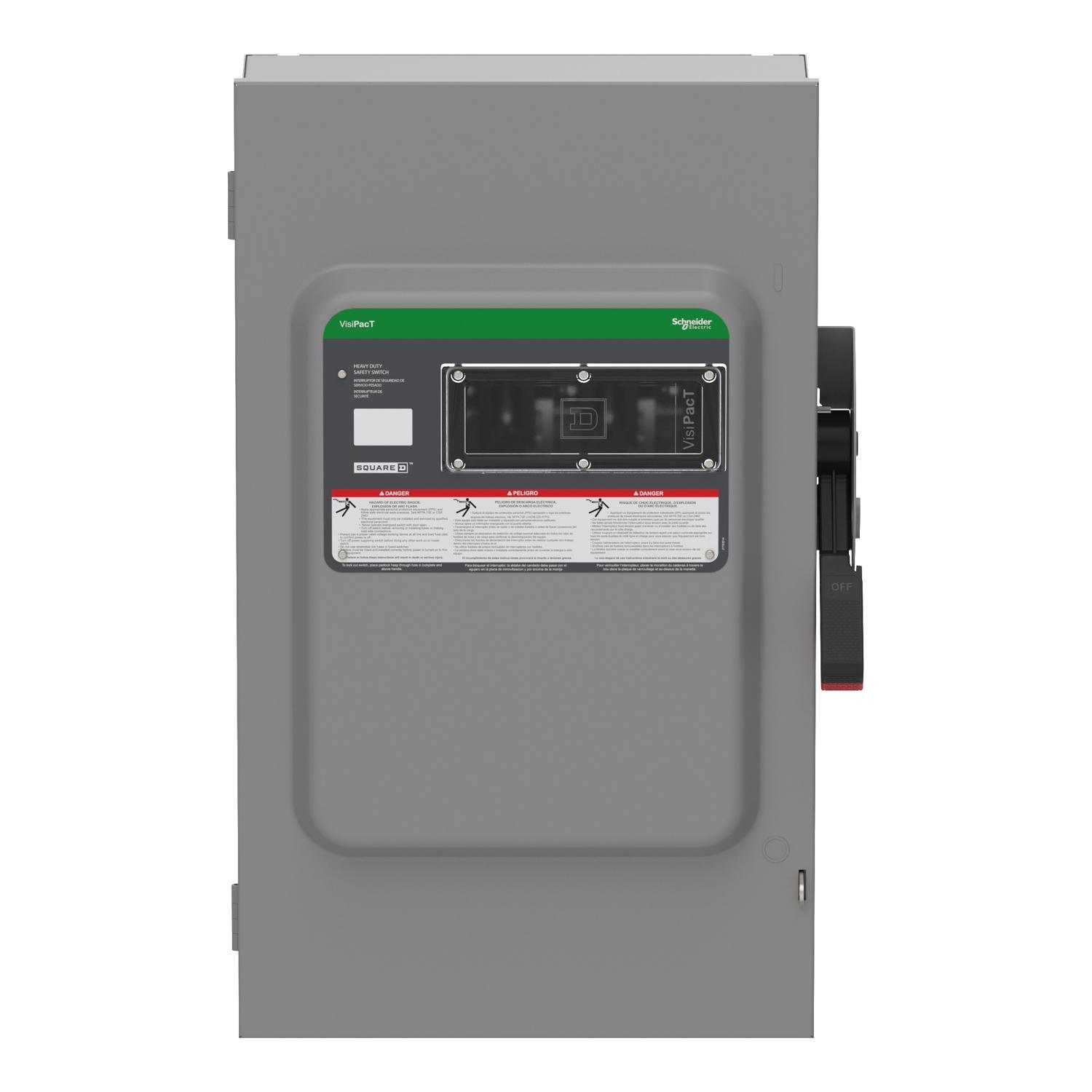

Schneider Electric VHU364 Heavy Duty Non-Fusible Disconnect Safety Switch
Image Disclaimers Message
Brand: Schneider Electric
Schneider Electric VHU364 Heavy Duty Non-Fusible Disconnect Safety Switch
Brand: Schneider Electric
Schneider Electric VHU364 Heavy Duty Non-Fusible Disconnect Safety Switch
Part #:VHU364
SKU #: 2419564
$558.63/EA
Key Features
Part #:VHU364
SKU #: 2419564
Brand: Schneider Electric
Amperage Rating: 200 A
Contact Form: Single Throw
Dimensions: 19.38 in H x 16.61 in W x 8.6 in D
Enclosure Type: NEMA 1
Frequency Rating: 50 to 60 Hz
$558.63/EA
- Fusible and Non-Fusible options
- Rated Horsepower, 500hp maximum
- Short Circuit Current Rating, Up to 200 kA utilizing appropriate Class R and Class R Fuse kits, or Class L, or Class J fuses
Specifications
Brand: Schneider Electric
Amperage Rating: 200 A
Contact Form: Single Throw
Dimensions: 19.38 in H x 16.61 in W x 8.6 in D
Enclosure Type: NEMA 1
Frequency Rating: 50 to 60 Hz
Horsepower: 15, 40, 50, 60, 125, 150 hp
Number of Poles: 3
Number of Wires: 3
Phase: 1, 3 pH
Terminal Type: Lug
Type: Heavy Duty Non-Fusible Disconnect
Voltage Rating: 600 VAC, 600 VDC, 600 VAC/600 VDC
Country of origin: US
Material: Steel
Mounting type: Surface
Manufacturer Name: Schneider Electric
UNSPSC: 39122205
UPC: 03606485894935
Schneider Electric VHU364 Heavy Duty Non-Fusible Disconnect Safety Switch
Additional Description: SQD -VHU364 HDSS TYPE1 600V 200 AMP 3 POLE UNFUSE unFuse
Catalog Description: Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 1, 600V, 200A, 3 pole
Item FeaturesFor Heavy application
Item Features
Item FeaturesUL Listed File E2875
