Schneider Electric VLS3P040D1 Tesys Vario Ls Switch Body Disconnector
Image Disclaimers Message
Schneider Electric VLS3P040D1 Tesys Vario Ls Switch Body Disconnector
Schneider Electric VLS3P040D1 Tesys Vario Ls Switch Body Disconnector
Part #:VLS3P040D1
SKU #: 2369635
Key Features
Part #:VLS3P040D1
SKU #: 2369635
Brand: Schneider Electric
Amperage Rating: 25/40, 25/40 A
Contact Form: 3NO
Dimensions: 73 mm H x 45 mm W x 78 mm D
Enclosure Type: IP20
Frequency Rating: 50/60, 50/60 Hz
- 40 A (AC-21A) at 400 VAC, 40 A (AC-21A) at 500 VAC, 40 A (AC-21A) at 690 VAC, 40 A (AC-22A) at 400 VAC, 40 A (AC-22A) at 500 VAC, 40 A (AC-22A) at 690 VAC, 40 A (AC-23A) at 400 VAC, 25 A (AC-23A) at 500 VAC, 25 A (AC-23A) at 690 VAC, 40 A at 600 VAC according to UL 508 amperage rating
Schneider Electric VLS3P040D1 Tesys Vario Ls Switch Body Disconnector

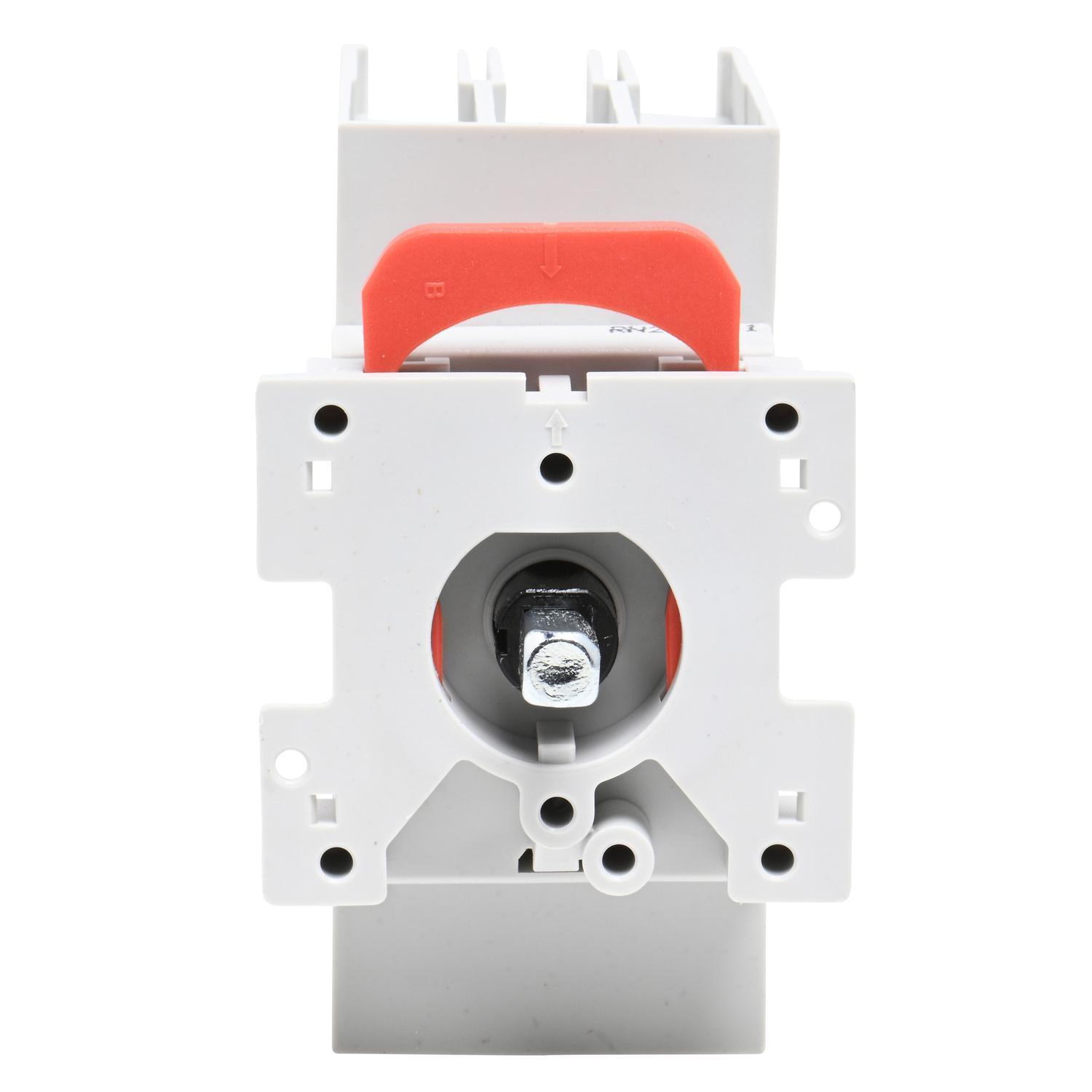

Schneider Electric TeSys Vario LS Switch Body Disconnector, AC High Performance, Series: VLS3P, 690 VAC, 25/40 A, 50/60 Hz Frequency, 3 Pole, 3NO Contact Form, IP20 Enclosure, Door Mounting, Screw Clamp Terminal, -25 to 55 deg C, 73 mm H x 45 mm W x 78 mm D Dimensions
Additional Description: SQD -VLS3P040D1 3 Poles door switch 40A
Catalog Description: Disconnect switch, TeSys VLS, body switch, 40A, 20HP at 480VAC, UL508, three phase, 5kA SCCR, size 1, door mount
