Schneider Electric VW3A7604R20 Braking Resistor
Part Number # VW3A7604R20
SKU # 2345567
Schneider Electric VW3A7604R20 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | VW3A7604R20 |
| SKU #: | 2345567 |
| Specifications: | 27 Ohm, IP65 Degree of Protection, 2 m L Cable, 400 W, 10500 J at 480 V, 11400 J at 400 V, 18100 J at 230 V, 25500 J at 115 V Energy Peak, 32 to 122 deg F Ambient Temperature |
| Suitable For Use With: | Lexium 15, Lexium 52, Lexium 32i, Lexium 32, Lexium 05, Lexium 28, Lexium 16D Servo Drive and Motor |
| UNSPSC: | 26111515 |
| UPC: | 00785901957348 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric VW3A7604R20 Braking Resistor
Brand: Schneider Electric
Part Number: VW3A7604R20
Telemecanique Square D Braking Resistor, For Use with: Lexium 15, Lexium 52, Lexium 32i, Lexium 32, Lexium 05, Lexium 28, Lexium 16D Servo Drive and Motor, 27 Ohm, IP65 Degree of Protection, 2 m L Cable, 400 W, 10500 J at 480 V, 11400 J at 400 V, 18100 J at 230 V, 25500 J at 115 V Energy Peak, 32 to 122 deg F Ambient Temperature
Additional Description: SQD -VW3A7604R20 (N) BRAKING RESISTOR IP65 27OHM 400W 2M NON-CANCELABLE, NON-RETURNABLE
Catalog Description: braking resistor - 27 ohm - 400 W - cable 2 m - IP65
VW3A7604R20 Application
For motion servo drive LXM16D 0.75 kW, 200 - 230 V, single phase, motion servo drive LXM16D 1 kW, 200 - 230 V, single phase, motion servo drive LXM16D 1.5 kW, 200 - 230 V, single phaseVW3A7604R20 Item Features
- Dissipates excess braking energy
- Easy to select and order thanks to the just enough number of references
- Easy to mount and wire up
VW3A7604R20 Standards
IP65|RoHS Compliant|China RoHSSKU #2345567Part Number #VW3A7604R20UNSPSC26111515UPC00785901957348

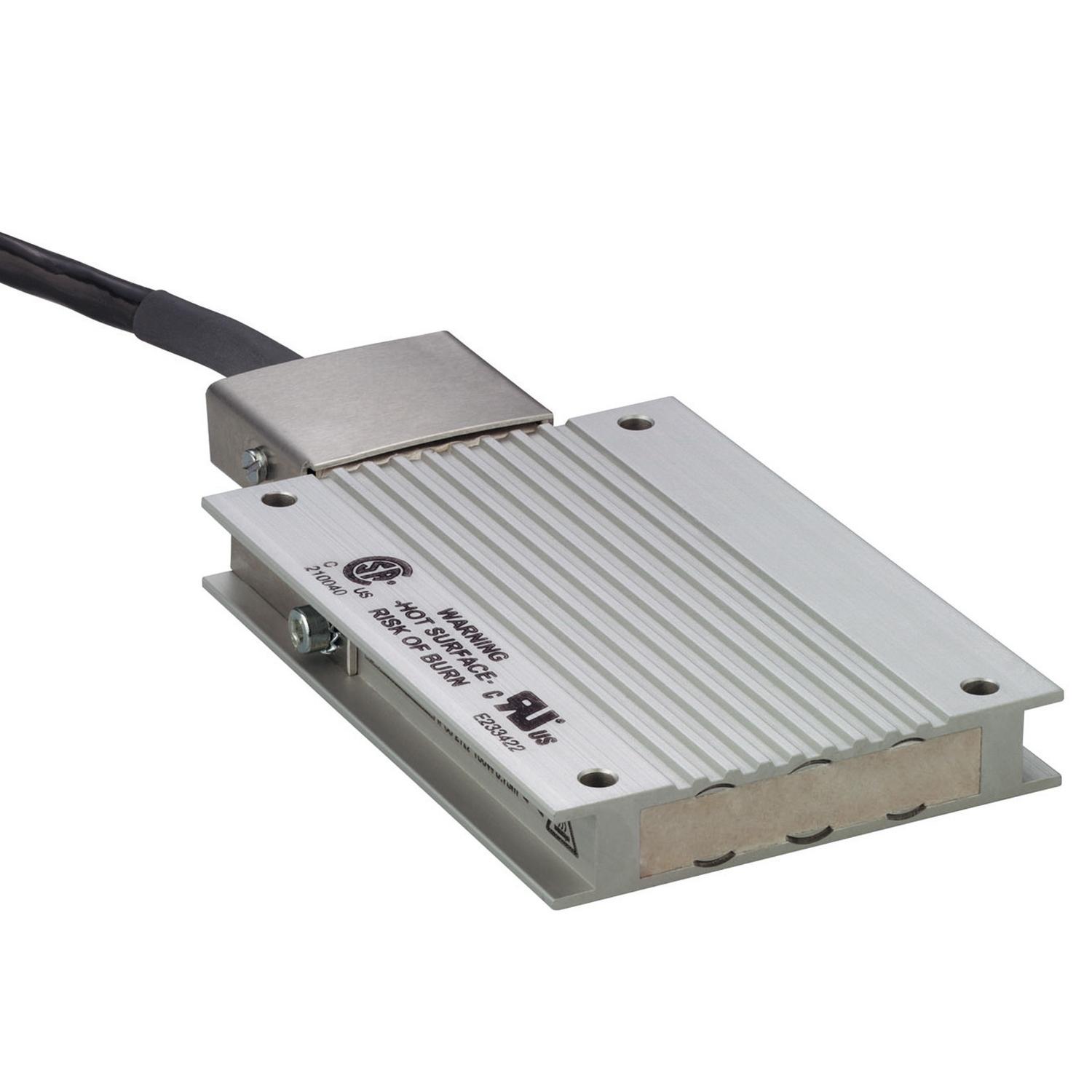

Image provided may only be a representation of final product and may include optional equipment
