Part Number # VW3A7608R30
SKU # 2301002
VW3A7608R30

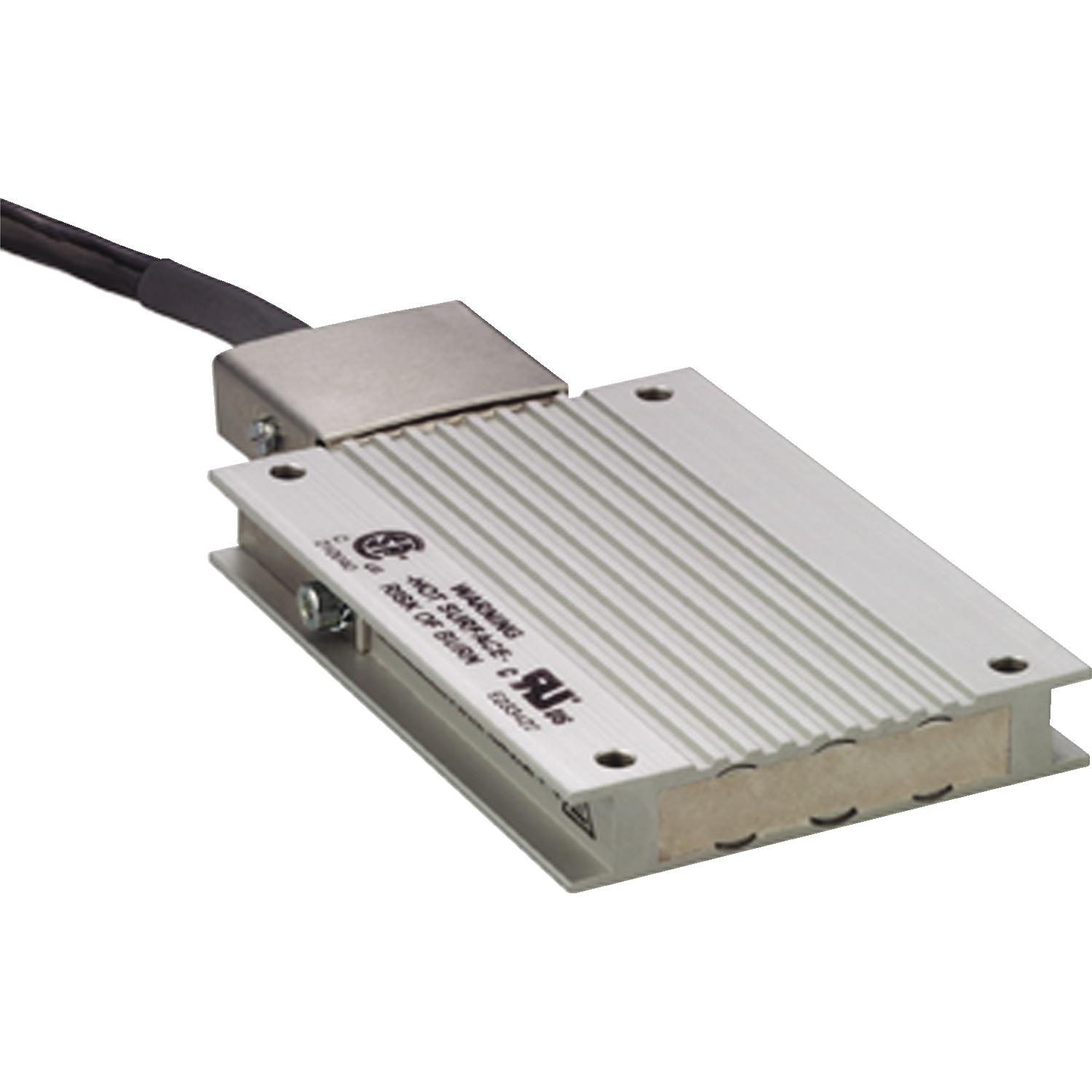

Schneider Electric VW3A7608R30 Braking Resistor
Part Number # VW3A7608R30
SKU # 2301002
Schneider Electric VW3A7608R30 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | VW3A7608R30 |
| SKU #: | 2301002 |
| Dimensions: | 9.8 ft L |
| Specifications: | 100 Ohm, IP65 Degree of Protection, 100 W, 3 m L Cable, 2700 J 480 V, 3000 J 400 V, 4500 J 230 V, 4400 J 115 V Energy Peak, 32 to 122 deg F Ambient Temperature |
| Suitable For Use With: | Lexium 52, 15, 32i, 32, 16D, Altivar Machine ATV320, 32, 310L, ATV32H018M2, ATV32H037M2, ATV32H037N4, ATV32H055M2, ATV32H055N4, ATV32H075M2, ATV32H075N4, ATV32HU11N4, ATV32HU15N4, ATV32HU22N4 Servo Drive and Motor |
| UNSPSC: | 26111515 |
| UPC: | 00785901939931 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Schneider Electric VW3A7608R30 Braking Resistor
Brand: Schneider Electric
Part Number: VW3A7608R30
Telemecanique Square D, VW3A7608R30, Braking Resistor, For Use With: Lexium 52, 15, 32i, 32, 16D, Altivar Machine ATV320, 32, 310L, ATV32H018M2, ATV32H037M2, ATV32H037N4, ATV32H055M2, ATV32H055N4, ATV32H075M2, ATV32H075N4, ATV32HU11N4, ATV32HU15N4, ATV32HU22N4 Servo Drive and Motor, Specifications: 100 Ohm, IP65 Degree of Protection, 100 W, 3 m L Cable, 2700 J 480 V, 3000 J 400 V, 4500 J 230 V, 4400 J 115 V Energy Peak, 32 to 122 deg F Ambient Temperature, 9.8 ft L Dimensions
Additional Description: SQD -VW3A7608R30 (N) BRAKING RESISTOR IP65 100O 100W 3M CABLE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: braking resistor - 100 Ohm - 100 W - cable 3 m - IP65
VW3A7608R30 Application
For ATV32H018M2, ATV32H037M2, ATV32H037N4, ATV32H055M2, ATV32H055N4, ATV32H075M2, ATV32H075N4, ATV32HU11N4, ATV32HU15N4, ATV32HU22N4, variable speed drive ATV320 0.18 kW, 200 - 240 V, single phase, variable speed drive ATV320 0.37 kW, 200 - 240 V, single phase, variable speed drive ATV320 0.55 kW, 200 - 240 V, single phase, variable speed drive ATV320 0.75 kW, 200 - 240 V, single phase, variable speed drive ATV320 0.37 kW, 380 - 500 V, three phase, variable speed drive ATV320 0.55 kW, 380 - 500 V, three phase, variable speed drive ATV320 0.75 kW, 380 - 500 V, three phase, variable speed drive ATV320 1.1 kW, 380 - 500 V, three phase, variable speed drive ATV320 1.5 kW, 380 - 500 V, three phase, variable speed drive ATV320 2.2 kW, 380 - 500 V, three phase, variable speed drive ATV320 0.75 kW, 525 - 600 V, three phase, variable speed drive ATV320 1.5 kW, 525 - 600 V, three phase, variable speed drive ATV320 2.2 kW, 525 - 600 V, three phase, variable speed drive ATV310L 0.75 kW, variable speed drive ATV310L 1.5 kW, variable speed drive ATV310L 2.2 kW, variable speed drive ATV310L 3.0 kW, variable speed drive ATV310L 4.0 kW, variable speed drive ATV310L 5.5 kW, motion servo drive LXM16D 0.1 kW, 200 - 230 V, single phase, motion servo drive LXM16D 0.2 kW, 200 - 230 V, single phase, motion servo drive LXM16D 0.4 kW, 200 - 230 V, single phase, motion servo drive LXM16D 0.75 kW, 200 - 230 V, single phase, motion servo drive LXM16D 1 kW, 200 - 230 V, single phase, motion servo drive LXM16D 1.5 kW, 200 - 230 V, single phaseVW3A7608R30 Item Features
- Dissipates excess braking energy
- Easy to select and order thanks to the just enough number of references
- Easy to mount and wire up
- Wide range of operating temperature from 32 degF to 122 degF
VW3A7608R30 Standards
IP65|RoHS Compliant|China RoHSSKU #2301002Part Number #VW3A7608R30UNSPSC26111515UPC00785901939931
Image provided may only be a representation of final product and may include optional equipment
