Schneider Electric VW3A7705 Altivar Braking Resistor
Part Number # VW3A7705
SKU # 2200688
VW3A7705
Schneider Electric VW3A7705 Altivar Braking Resistor
Part Number # VW3A7705
SKU # 2200688
$1441.67 / Each
Typical price:$1762.04 / Each
Schneider Electric VW3A7705 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | VW3A7705 |
| SKU #: | 2200688 |
| Dimensions: | 301 mm L x 240 mm W x 484 mm H |
| Specifications: | 250 V AC/24 V DC 1/0.1 A, 60 mOhm, 10 Ohm, IP20, 1/1.15 kW 122/104 deg F, 32 to 122 deg F Ambient, M6 Bar Wire Drive, Terminal <= 2.5 sq-mm/AWG 14 Control Switch |
| Suitable For Use With: | Altivar 312, Altivar 71, Lexium 32i, Lexium 52, Lexium 32 and Altivar 61 Variable Frequency Drive |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 26111515 |
| UPC: | 00785901684923 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1441.67 / Each
Typical price:$1762.04 / Each
Quantity:
- Schneider Electric, VW3A7705, Braking Resistor, For Use With: Altivar 312, Altivar 71, Lexium 32i, Lexium 52, Lexium 32 and Altivar 61 Variable Frequency Drive, Specifications: 250 V AC/24 V DC 1/0.1 A, 60 mOhm, 10 Ohm, IP20, 1/1.15 kW 122/104 deg F, 32 to 122 deg F Ambient, M6 Bar Wire Drive, Terminal <= 2.5 sq-mm/AWG 14 Control Switch, 301 mm L x 240 mm W x 484 mm H Dimensions
VW3A7705 Application
Designed for machines with high inertia, driving loads and machines with fast cyclesVW3A7705 Item Features
- Enable maximum transient braking torque
- Thermal protection via temperature-controlled switch or thermal overload relay
- Terminal electrical connection
VW3A7705 Standards
IP20|RoHS Compliant|China RoHSSKU #2200688Part Number #VW3A7705UNSPSC26111515UPC00785901684923

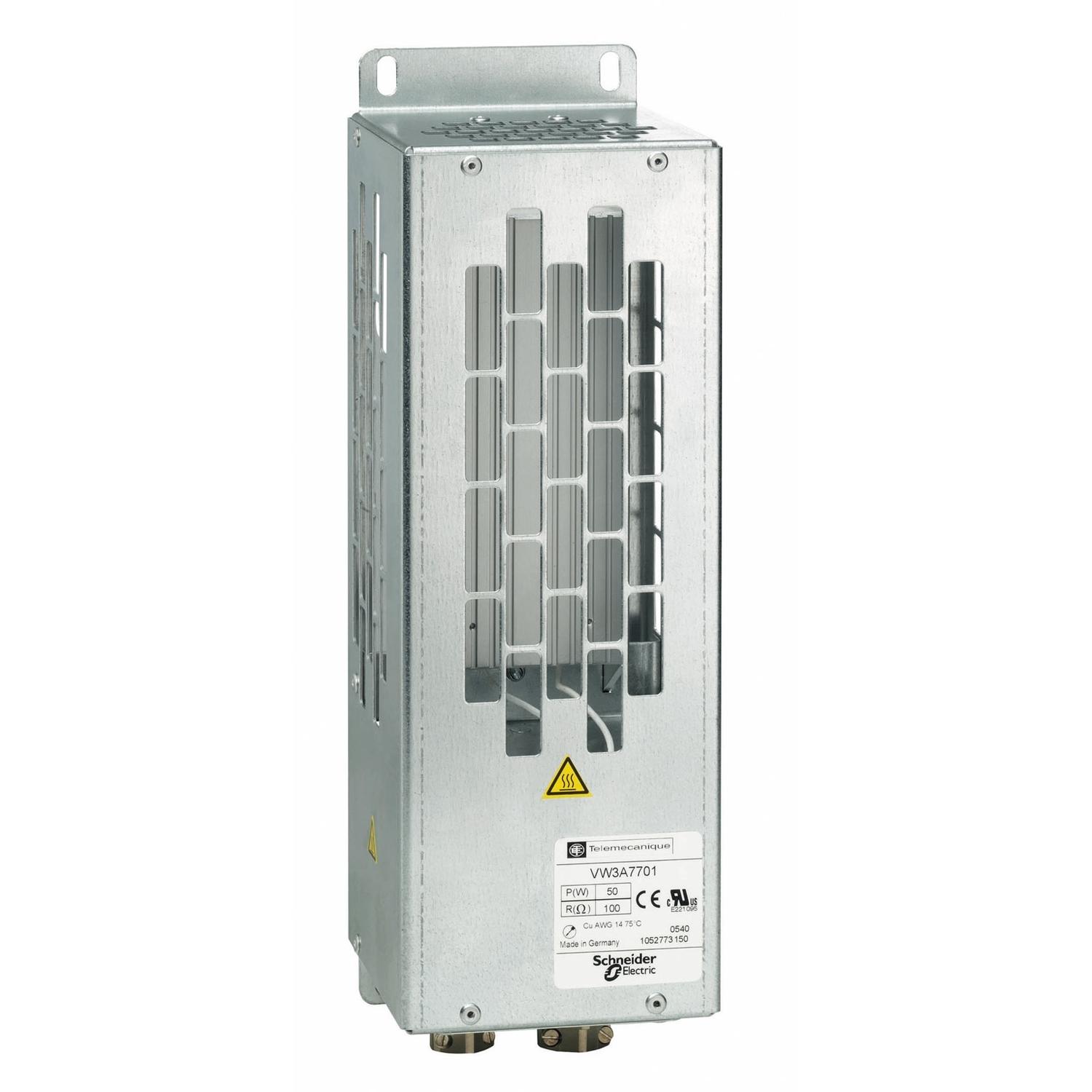

Image provided may only be a representation of final product and may include optional equipment
