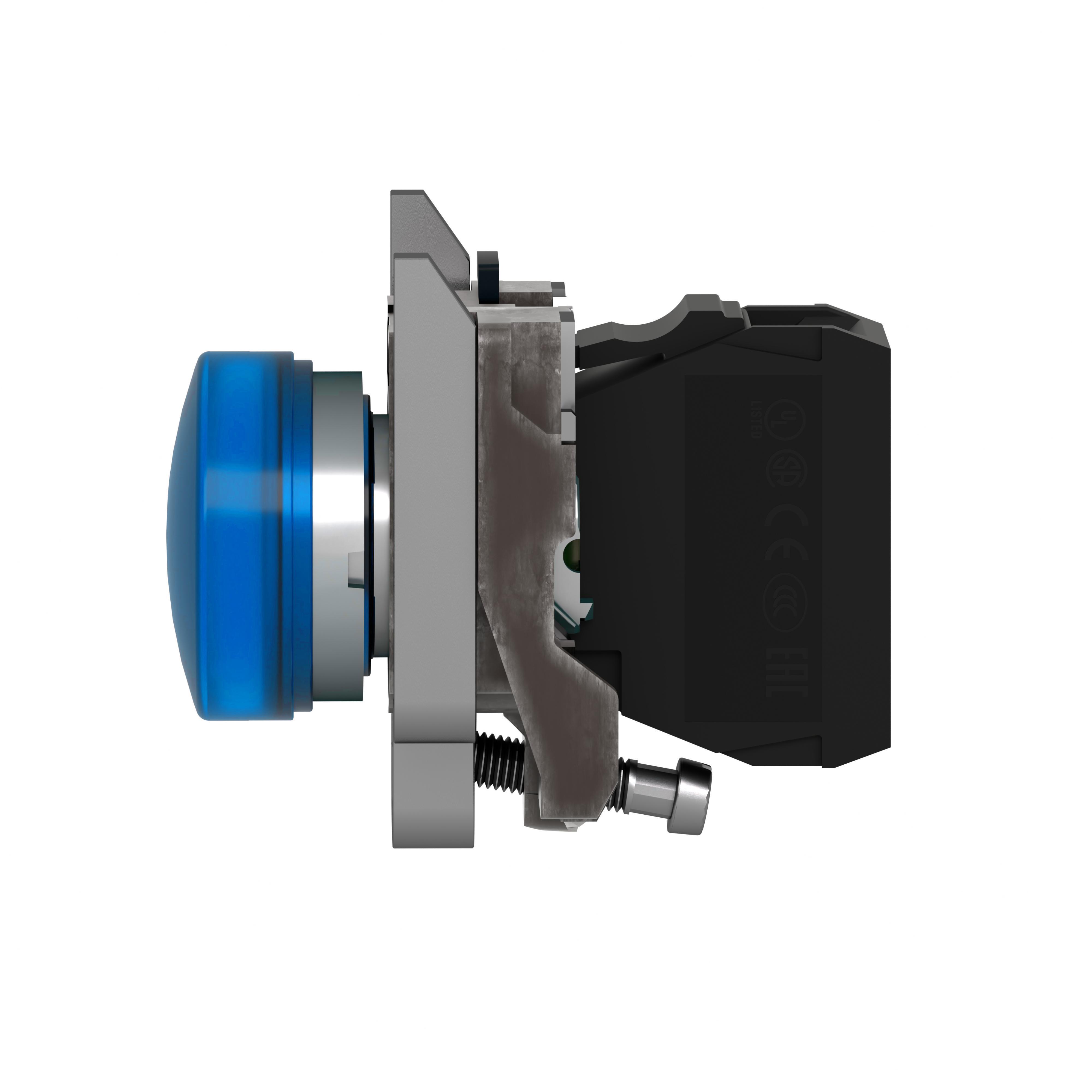

Schneider Electric XB4BVG6 Harmony Pilot Light
Schneider Electric XB4BVG6 Harmony Pilot Light
Part #:XB4BVG6
SKU #: 2193988
Key Features
Part #:XB4BVG6
SKU #: 2193988
Brand: Schneider Electric
Amperage Rating: 14, 14 mA
Average Life: 100000, 100000 hr
Bezel/Housing: Chromium Plated Metal, Polished Chrome Metal
Enclosure Type: NEMA 4/4X/13/IP66/IP67/IP69/IP69K/IK06, NEMA 4X/13/IP66/IP67/IP69/IP69K/IK06, NEMA 4X/13/IP69/IP67/IP66/IP69K/IK06
Environmental Conditions: -40 to 158 deg F Operating/Storage, -40 to 158 deg F Operating/Storage Temperature
- It has a metal body
- Steady signal
- TH protective treatment
- 50/60 Hz frequency
- 7000000 Pa at 55 deg C, 0 1 m distance resistance to high pressure washer
- 30 gn (duration equal to 18 ms) and 50 gn (duration equal to 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 shock resistance
- 3 pollution deg
- 6 kV on contact (on metal parts) and 8 kV in free air (in insulating parts) conforming to IEC 61000-4-2 resistance to electrostatic discharge
- 100 to 132 VAC supply voltage limits
- https://www.youtube.com/watch?v=w8gfg57CotU
Schneider Electric XB4BVG6 Harmony Pilot Light
Schneider Electric Harmony Pilot Light, Series: XB4, 110 to 120 VAC/VDC, 14 mA, Plain Lens, Blue Lens, Zamak Lens, LED Lamp, Bezel/Housing: Chromium Plated Metal, 22 mm Size, Round Shape, 100000 hr Average Life, Screw Clamp Terminal, NEMA 4X/13/IP66/IP67/IP69/IP69K/IK06 Enclosure, Panel Mounting, Environmental Conditions: -40 to 158 deg F Operating/Storage
Additional Description: SQD -XB4BVG6 121 V LED PILOT LIGHT BOD XB4
Catalog Description: Pilot light, Harmony XB4,metal, blue, 22mm, universal LED, plain lens, 110...120V AC
