Part Number # XB5AK123G5C0
SKU # 2424592
Image Disclaimers Message
Brand: Schneider Electric
XB5AK123G5C0

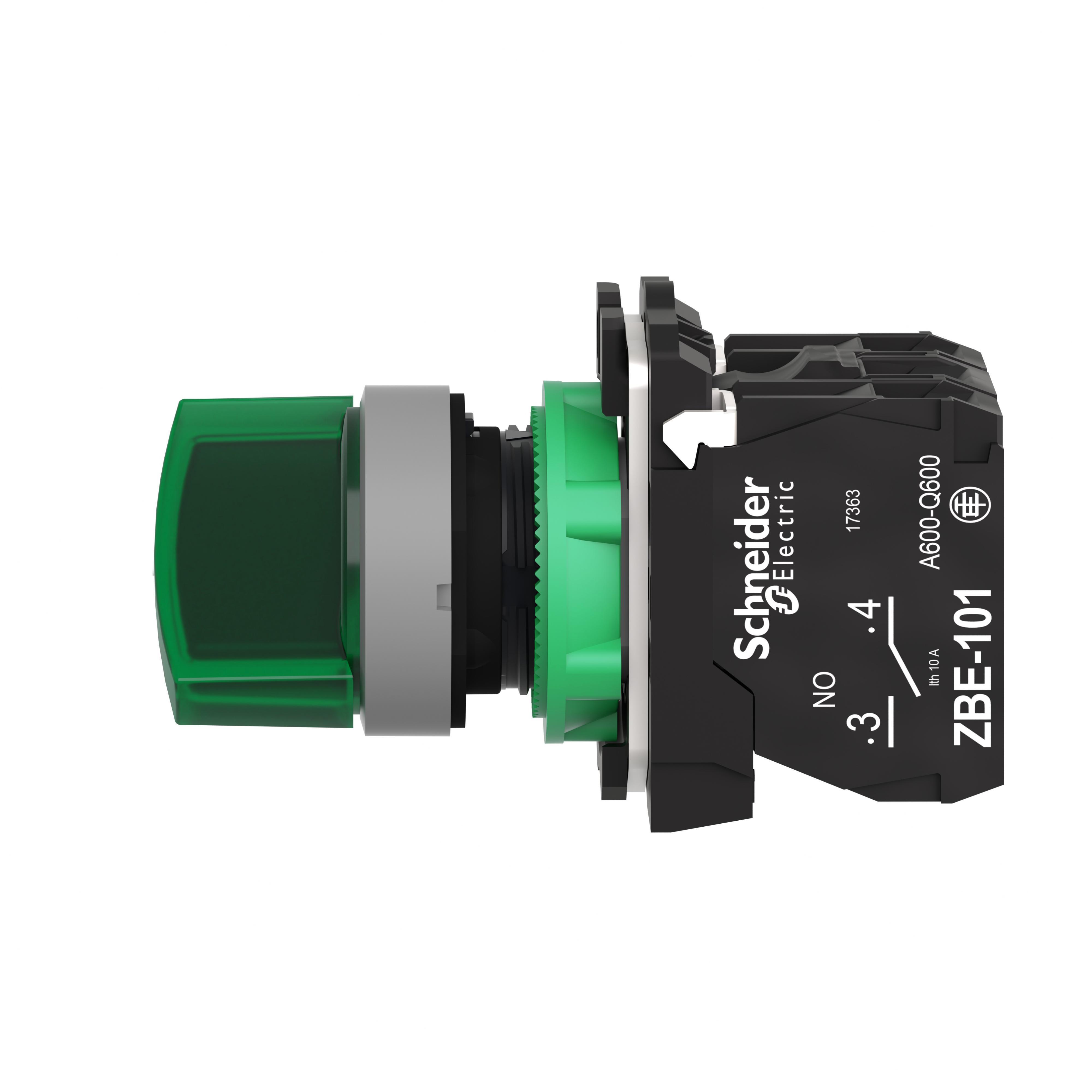

Schneider Electric XB5AK123G5C0 Harmony XB5 Illuminated Round Head Selector Switch With Standard Handle
Part Number # XB5AK123G5C0
SKU # 2424592
$56.57 / Each
Typical price:$71.42 / Each
Schneider Electric XB5AK123G5C0 Key Features
| Brand: | Schneider Electric |
|---|---|
| Part Number # : | XB5AK123G5C0 |
| SKU #: | 2424592 |
| Bezel/Housing: | Plastic |
| Contact Configuration: | 1NO-1NC |
| Contact Rating: | 3 A at 240 V, 6 A at 120 V, 0.1 A at 600 V, 0.27 A at 250 V, 0.55 A at 125 V, 1.2 A at 600 V |
| Enclosure Type: | NEMA 4X/13/IP66/IP67 |
| Environmental Conditions: | -40 to 70 deg C Operating/Storage |
| Indicator Type: | LED |
| Lamp Type: | LED |
| Legend: | Blank |
| Number of Positions: | 2 |
| Operator Type: | Lever, Standard Handle |
| Series: | Harmony XB5 |
| Size: | 22 mm |
| Terminal Type: | Screw Clamp |
| Throw: | 90 deg |
| Type: | Illuminated Round Head |
| Color: | Gray/Green |
| Connection type: | Screw Clamp |
| Country of origin: | FR |
| Material: | Plastic |
| Manufacturer Name: | Schneider Electric |
| UNSPSC: | 39122217 |
| UPC: | 03606489758493 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$56.57 / Each
Typical price:$71.42 / Each
Quantity:
- Schneider Electric Square D Selector Switch, Illuminated Round Head, Series: Harmony XB5, 22 mm Size, 1NO-1NC Contact Configuration, Slow Break Contact, Stay Put Contact Mode, 3 A at 240 V, 6 A at 120 V, 0.1 A at 600 V, 0.27 A at 250 V, 0.55 A at 125 V, 1.2 A at 600 V Contact, Lever Operator, 2 Positions, 90 deg Throw, LED Lamp, Class B/II Insulation, Legend: BLANK, Bezel/Housing: Plastic, Screw Clamp Connection, Screw Clamp Terminal, LED Indicator, NEMA 4X/13/IP66/IP67 Enclosure, Plastic, Gray/Green, Environmental Conditions: -40 to 70 deg C Operating/Storage
XB5AK123G5C0 Application
Industrial and Outdoor ApplicationsXB5AK123G5C0 Item Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- Various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board
- Large set of accessories to customize your panels
- https://youtu.be/d-1QzdZ3L7o
XB5AK123G5C0 Standards
RoHS Compliant|EN/IEC 60947-5-4/60947-1/60947-5-5/60947-5-1|JIS C8201-5-1/C8201-1|UL 508|CSA C22.2 File No. 14|UL Listed|BV Certified|GL Certified|Lloyds Registered|CSA Certified|DNV Certified|RINA Certified|IEC 60536/60529|REACH Compliant|WEEE Certified|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65PROP65s.ca.govSKU #2424592Part Number #XB5AK123G5C0UNSPSC39122217UPC03606489758493
